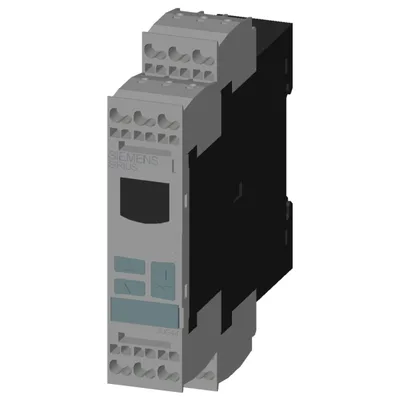

Siemens 3UG4618-2CR20

!!! product phase-out !!! the preferred successor is 3UG5618-2CR20 phase failure and sequence monitoring 3x 160-690 V, spring-loaded terminal digital monitoring relay for 3-phase voltage with N conductor automatic phase sequence correction phase failure 3 x 90 to 400 V AC 50 to 60 Hz undervoltage and overvoltage 90-400 V hysteresis 1-20 V OFF delay 0-20 s asymmetry 0-20% 1 changeover contact for phase correction 1 changeover contact for power system faults spring-loaded connection system

SiemensMFR # 3UG4618-2CR20SKU # CEY-8EF3B02FFCE0

product brand nameSIRIUS

design of the product5 functions

product type designation3UG4

product functionPhase monitoring relay

display version LEDNo

design of the displayLCD

Have questions?Chat on WhatsApp

About This Product

Siemens 3UG4618-2CR20

Genuine, certified Siemens product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

product brand nameSIRIUS

product designationNetwork monitoring relay with digital setting

design of the product5 functions

product type designation3UG4

General technical data

product functionPhase monitoring relay

display version LEDNo

design of the displayLCD

with degree of pollution 3 rated value690 V

degree of pollution3

for monitoringAC

surge voltage resistance rated value6 kV

shock resistance according to IEC 60068-2-27sinusoidal half-wave 15 g / 11 ms

vibration resistance according to IEC 60068-2-61 ... 6 Hz: 15 mm, 6 ... 500 Hz: 2 g

mechanical service life (operating cycles) typical10 000 000

electrical endurance (operating cycles) at AC-15 at 230 V typical100 000

thermal current of the switching element with contacts maximum5 A

reference code according to IEC 81346-2K

relative repeat accuracy1 %

Substance Prohibitance (day/month/year)05/01/2012

SVHC substance nameLead CAS-No. 7439-92-1 Lead monoxide (lead oxide) CAS-No. 1317-36-8 2-methyl-1-(4-methylthiophenyl)-2-morpholinopropan-1-one CAS-No. 71868-10-5 Melamine CAS-No. 108-78-1 6,6'-di-tert-butyl-2,2'-methylenedi-p-cresol CAS-No. 119-47-1

Net Weight0.134 kg

Product Function

undervoltage detectionYes

overvoltage detectionYes

phase sequence recognitionYes

phase failure detectionYes

asymmetry detectionYes

overcurrent detection 1 phaseNo

overvoltage detection 3 phaseYes

undercurrent detection 1 phaseNo

undervoltage detection 3 phasesYes

voltage window recognition 3 phaseYes

adjustable open/closed-circuit current principleNo

auto-RESETYes

Control circuit/ Control

type of voltage of the control supply voltageAC

initial value1

full-scale value1

initial value1

full-scale value1

Interfaces

design of the interface bluetoothNo

Measuring circuit

with lower or upper limit violation0.1 ... 20 s

response time maximum450 ms

accuracy of digital display+/-1 digit

Precision

relative metering precision5 %

Auxiliary circuit

number of NC contacts delayed switching0

number of NO contacts delayed switching0

for auxiliary contacts2

delayed switching2

operating frequency with 3RT2 contactor maximum5 000 1/h

Main circuit

number of poles for main current circuit3

at 250 V at 50/60 Hz3 A

at 400 V at 50/60 Hz3 A

at 24 V1 A

at 125 V0 A

at 250 V0 A

operational current at 17 V minimum5 mA

continuous current of the DIAZED fuse link of the output relay4 A

Electromagnetic compatibility

due to burst according to IEC 61000-4-42 kV

due to conductor-earth surge according to IEC 61000-4-52 kV

due to conductor-conductor surge according to IEC 61000-4-51 kV

field-based interference according to IEC 61000-4-310 V/m

electrostatic discharge according to IEC 61000-4-26 kV contact discharge / 8 kV air discharge

Galvanic isolation

between input and outputYes

between the outputsYes

between the voltage supply and other circuitsYes

Safety related data

product function suitable for safety functionNo

Electrical Safety

protection class IP on the front according to IEC 60529IP20

Connections/ Terminals

product component removable terminal for auxiliary and control circuitYes

type of electrical connectionspring-loaded terminals

solid2x (0.25 ... 1.5 mm²)

finely stranded with core end processing2 x (0.25 ... 1.5 mm²)

finely stranded without core end processing2x (0.25 ... 1.5 mm²)

for AWG cables solid2x (24 ... 16)

for AWG cables stranded2x (24 ... 16)

solid0.25 ... 1.5 mm²

finely stranded with core end processing0.25 ... 1.5 mm²

finely stranded without core end processing0.25 ... 1.5 mm²

solid24 ... 16

stranded24 ... 16

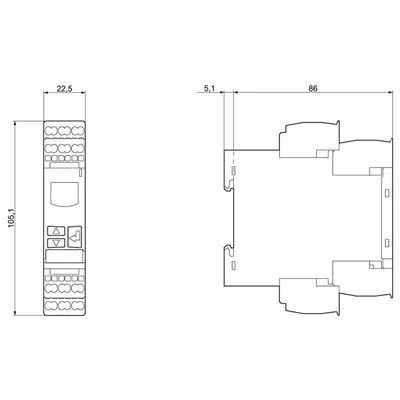

Installation/ mounting/ dimensions

mounting positionany

fastening methodsnap-on mounting

height103 mm

width22.5 mm

depth91 mm

— forwards0 mm

— backwards0 mm

— upwards0 mm

— downwards0 mm

— at the side0 mm

— forwards0 mm

— backwards0 mm

— upwards0 mm

— at the side0 mm

— downwards0 mm

— forwards0 mm

— backwards0 mm

— upwards0 mm

— downwards0 mm

— at the side0 mm

Ambient conditions

installation altitude at height above sea level maximum2 000 m

during operation-25 ... +60 °C

during storage-40 ... +85 °C

during transport-40 ... +85 °C

Approvals Certificates

global warming potential [CO2 eq] / during manufacturing4.44 kg

global warming potential [CO2 eq] / during sales0.0341 kg

global warming potential [CO2 eq] / during operation13.7 kg

global warming potential [CO2 eq] / after end of life-1.06 kg

global warming potential [CO2 eq] / total17.1 kg
