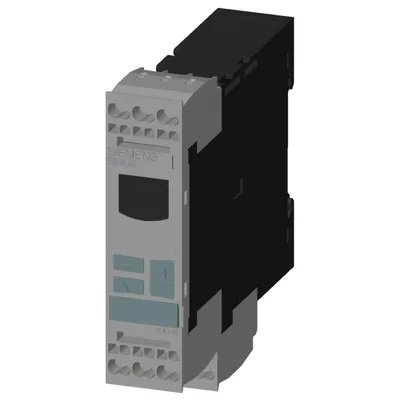

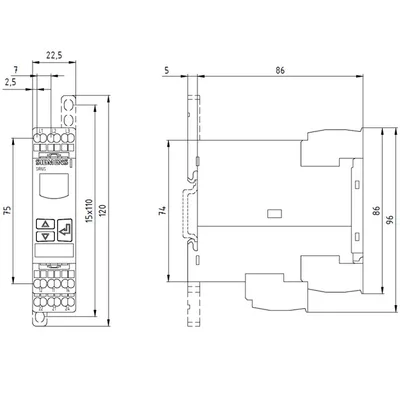

Siemens 3UG4614-2BR20

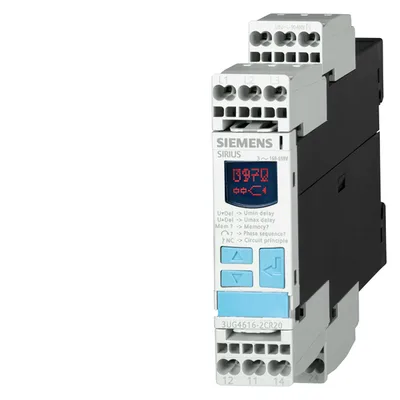

!!! product phase-out !!! the preferred successor is 3UG5514-2BR20 phase failure and sequence monitoring 3x 160-690 V, spring-loaded terminal digital monitoring relay asymmetry 0-20% connectable phase sequence phase failure 3 x 160 to 690 V 50 to 60 Hz AC undervoltage 160-690 V hysteresis 1-20 V ON and OFF delay 0-20 s 2 changeover contacts spring-loaded connection system

SiemensMFR # 3UG4614-2BR20SKU # CEY-8EF3B02F7CE4

product brand nameSIRIUS

design of the product4 functions

product type designation3UG4

product functionPhase monitoring relay

display version LEDNo

design of the displayLCD
