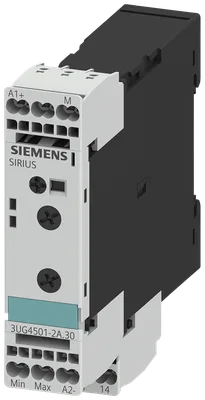

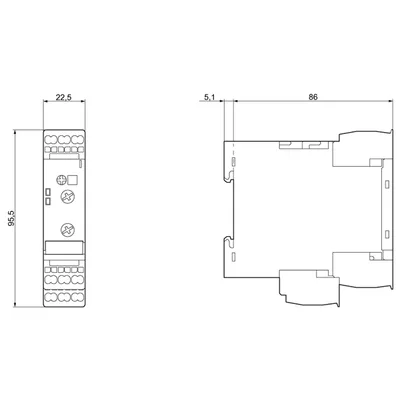

Siemens 3UG4501-2AW30

!!! product phase-out !!! the preferred successor is 3UG5501-2AW30 analog monitoring relay level monitoring resistance monitoring from 2 to 200 kohm overshoot and undershoot 24 to 240 V AC/DC 50 to 60 Hz DC and AC 2-step or 1-step control tripping delay 0.5 to 10 s 1 changeover contact spring-loaded connection system

SiemensMFR # 3UG4501-2AW30SKU # CEY-8EF3B02FD5DE

product brand nameSIRIUS

product type designation3UG4

product functionMonitoring relay for level monitoring

display version LEDYes

— at 24 V maximum2 V·A

— at 240 V maximum4 V·A
