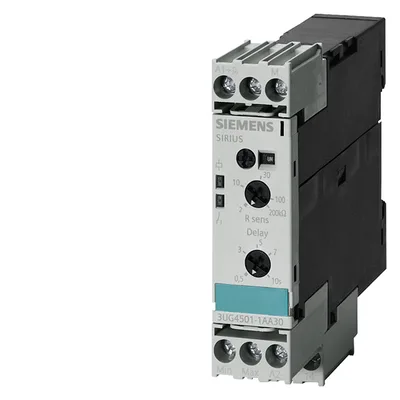

Siemens 3UG4501-1AA30

!!! product phase-out !!! the preferred successor is 3UG5501-1AW30 analog monitoring relay level monitoring resistance monitoring from 2 to 200 kohm overshoot and undershoot supply voltage 24 V AC/DC 50 to 60 Hz DC and AC without electrical isolation to measuring circuit 2-step or 1-step control tripping delay 0.5 to 10 s 1 changeover contact screw terminal

SiemensMFR # 3UG4501-1AA30SKU # CEY-8EF3B0308477

product brand nameSIRIUS

product type designation3UG4

product functionMonitoring relay for level monitoring

display version LEDYes

— at 24 V maximum2 V·A

Have questions?Chat on WhatsApp

About This Product

Siemens 3UG4501-1AA30

Genuine, certified Siemens product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

product brand nameSIRIUS

product designationLevel monitoring relay with analog setting

product type designation3UG4

manufacturer's article number of the optional sensor2-pole and 3-pole sensors 3UG3207

General technical data

product functionMonitoring relay for level monitoring

display version LEDYes

— at 24 V maximum2 V·A

for overvoltage category III according to IEC 60664 with degree of pollution 3 rated value300 V

degree of pollution3

of the operating voltage for actuationAC/DC

of the control supply voltageAC/DC

surge voltage resistance rated value4 kV

shock resistance according to IEC 60068-2-27sinusoidal half-wave 15 g / 11 ms

vibration resistance according to IEC 60068-2-61 ... 6 Hz: 15 mm, 6 ... 500 Hz: 2g

mechanical service life (operating cycles) typical10 000 000

electrical endurance (operating cycles) at AC-15 at 230 V typical100 000

reference code according to IEC 81346-2K

relative repeat accuracy1 %

Substance Prohibitance (day/month/year)05/01/2012

SVHC substance nameLead monoxide (lead oxide) CAS-No. 1317-36-8 2-methyl-1-(4-methylthiophenyl)-2-morpholinopropan-1-one CAS-No. 71868-10-5 Melamine CAS-No. 108-78-1 6,6'-di-tert-butyl-2,2'-methylenedi-p-cresol CAS-No. 119-47-1

Net Weight127.62 g

Product Function

outlet monitoring adjustableYes

adjustable responsivenessYes

inlet monitoring adjustableYes

external resetYes

Control circuit/ Control

at 50 Hz rated value24 V

at 60 Hz rated value24 V

control supply voltage at DC rated value24 V

initial value0.85

full-scale value1.1

initial value0.85

full-scale value1.1

initial value0.85

full-scale value1.1

Measuring circuit

when starting0.5 ... 10 s

with lower or upper limit violation0.5 ... 10 s

buffering time in the event of power failure minimum200 ms

response time maximum300 ms

physical measuring principleconductive

Precision

relative metering precision20 %

temperature drift per °C1 %/°C

Auxiliary circuit

number of NC contacts delayed switching0

number of NO contacts delayed switching0

delayed switching1

operating frequency with 3RT2 contactor maximum5 000 1/h

at 250 V at 50/60 Hz3 A

at 400 V at 50/60 Hz3 A

at 24 V1 A

at 125 V0.2 A

at 250 V0.1 A

operational current at 17 V minimum5 mA

continuous current of the DIAZED fuse link of the output relay4 A

Electromagnetic compatibility

due to burst according to IEC 61000-4-42 kV

due to conductor-earth surge according to IEC 61000-4-52 kV

due to conductor-conductor surge according to IEC 61000-4-51 kV

field-based interference according to IEC 61000-4-310 V/m

electrostatic discharge according to IEC 61000-4-26 kV contact discharge / 8 kV air discharge

Galvanic isolation

between input and outputYes

between the outputsNo

Electrical Safety

protection class IP on the front according to IEC 60529IP20

Connections/ Terminals

product component removable terminal for auxiliary and control circuitYes

type of electrical connectionscrew terminal

solid1x (0.5 ... 4 mm²), 2x (0.5 ... 2.5 mm²)

finely stranded with core end processing1x (0.5 ... 2.5 mm²), 2x (0.5 ... 1.5 mm²)

for AWG cables solid2x (20 ... 14)

for AWG cables stranded2x (20 ... 14)

solid0.5 ... 4 mm²

finely stranded with core end processing0.5 ... 2.5 mm²

solid20 ... 14

stranded20 ... 14

tightening torque with screw-type terminals0.8 ... 1.2 N·m

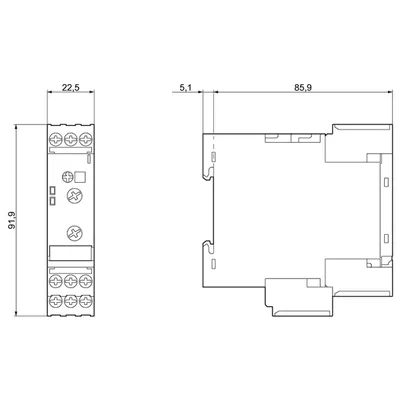

Installation/ mounting/ dimensions

mounting positionany

fastening methodscrew and snap-on mounting

height92 mm

width22.5 mm

depth91 mm

— forwards0 mm

— backwards0 mm

— upwards0 mm

— downwards0 mm

— at the side0 mm

— forwards0 mm

— backwards0 mm

— upwards0 mm

— at the side0 mm

— downwards0 mm

— forwards0 mm

— backwards0 mm

— upwards0 mm

— downwards0 mm

— at the side0 mm

Ambient conditions

installation altitude at height above sea level maximum2 000 m

during operation-25 ... +60 °C

during storage-40 ... +80 °C

during transport-40 ... +80 °C

Approvals Certificates

global warming potential [CO2 eq] / during manufacturing3.51 kg

global warming potential [CO2 eq] / during sales0.0276 kg

global warming potential [CO2 eq] / during operation13.7 kg

global warming potential [CO2 eq] / after end of life-1.12 kg

global warming potential [CO2 eq] / total16.1 kg

Accessories 3

Genuine accessories that can be used with the Siemens 3UG4501-1AA30 motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.
