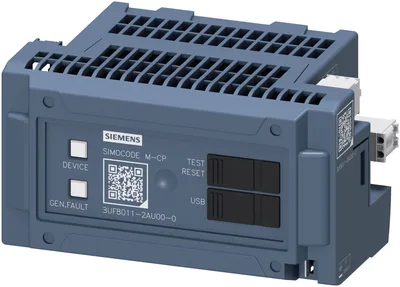

Siemens 3UF8011-2AU00-0

basic device SIMOCODE M-CP MCC, Single Pair Ethernet, 10BASE-T1L IEEE 802.3cg SPE, PROFINET IO, OPC UA and web server, 1 bus connection 3-pole terminal, Us: 110-240 V AC/DC, 6 I/4 O freely configurable, input for thermistor, input for ground fault transformer 3UL23

SiemensMFR # 3UF8011-2AU00-0SKU # YLSZUPAQ31WYT

product brand nameSIMOCODE

product designationMotor management system

product type designationM-CP

certificate of suitabilityCE / RoHS

current measurementNo

voltage measurementNo

Have questions?Chat on WhatsApp

About This Product

Siemens 3UF8011-2AU00-0

Genuine, certified Siemens product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

product brand nameSIMOCODE

product designationMotor management system

product type designationM-CP

1 of residual current transformer connectable3UL2302-1A

2 of residual current transformer connectable3UL2303-1A

3 of residual current transformer connectable3UL2304-1A

4 of residual current transformer connectable3UL2305-1A

5 of residual current transformer connectable3UL2306-1A

6 of residual current transformer connectable3UL2307-1A

General technical data

certificate of suitabilityCE / RoHS

current measurementNo

voltage measurementNo

active power measurementYes

energy measurementNo

frequency measurementNo

bus communicationYes

automatic startYes

data acquisition functionYes

diagnostics functionYes

residual current displayYes

password protectionYes

test functionYes

maintenance functionYes

MRRT redundancy procedureNo

product feature protective coating on printed-circuit boardNo; on request

input for thermistor connectionYes

digital inputYes

input for residual current converterYes

input for analog temperature sensorsNo

input for ground fault detectionYes

relay outputYes

temperature monitoring moduleNo

current measuring moduleNo

current/voltage measuring moduleYes

fail-safe digital I/O moduleNo

ground-fault monitoring moduleNo

decoupling moduleNo

analog I/O moduleNo

digital I/O module with monostable outputsNo

digital I/O module with bistable outputsNo

control unit with displayYes

control unitNo

apparent power consumption6.5 V·A

consumed active power3.1 W

insulation voltage with degree of pollution 3 at AC rated value250 V

surge voltage resistance rated value4 000 V

according to IEC 60068-2-2715 g / 11 ms

vibration resistance1 … 6 Hz / 15 mm; 6 … 500 Hz / 2 g

at 24 V6 A

at 120 V6 A

at 230 V3 A

at 24 V2 A

at 60 V0.55 A

at 125 V0.25 A

mechanical service life (operating cycles) typical10 000 000

electrical endurance (operating cycles) typical100 000

buffering time in the event of power failure0.2 s

adjustable current response value current 1 initial value0.03 A

adjustable current response value current 1 full-scale value40 A

reference code according to IEC 81346-2F

at 50 °C6 A

at 60 °C5 A

Substance Prohibitance (day/month/year)01/01/2024

SVHC substance nameLead CAS-No. 7439-92-1 Lead monoxide (lead oxide) CAS-No. 1317-36-8 4,4'-isopropylidenediphenol (Bisphenol A, BPA) CAS-No. 80-05-7

Net Weight379.58 g

Sensor

measurable line frequency initial value20 Hz

measurable line frequency full-scale value120 Hz

Electromagnetic compatibility

EMC emitted interference according to IEC 60947-1class A

EMC immunity according to IEC 60947-1corresponds to degree of severity 3

due to burst according to IEC 61000-4-42 kV (power ports) / 1 kV (signal ports)

due to conductor-earth surge according to IEC 61000-4-52 kV

due to conductor-conductor surge according to IEC 61000-4-51 kV

due to high-frequency radiation according to IEC 61000-4-610 V

field-based interference according to IEC 61000-4-310 V/m

electrostatic discharge according to IEC 61000-4-26 kV contact discharge / 8 kV air discharge

conducted HF interference emissions according to CISPR11corresponds to degree of severity A

field-bound HF interference emission according to CISPR11corresponds to degree of severity A

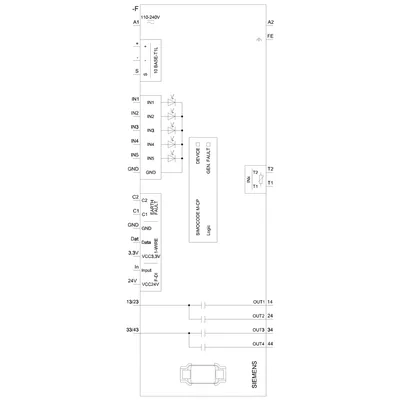

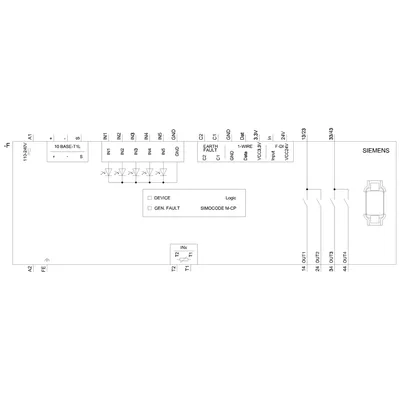

Inputs/ Outputs

parameterizable inputsYes

parameterizable outputsYes

number of inputs6

for thermistor connection1

number of digital inputs with a common reference potential5

type 1 acc. to IEC 61131No

type 2 acc. to IEC 61131No

number of analog inputs0

number of sensor inputs for ground fault detection1

110 ... 240 V

input voltage at digital input at AC110 ... 240 V

number of outputs4

number of semiconductor outputs0

number of outputs as contact-affected switching element4

number of analog outputs0

switching behaviormonostable

number of relay outputs4

type of relay outputsMonostable

wire length for digital signals maximum400 m

wire length between sensor and electronics evaluation device with Cu 1.5 mm² and 150 nF/km maximum400 m

with conductor cross-section = 0.5 mm² maximum50 m

with conductor cross-section = 1.5 mm² maximum150 m

with conductor cross-section = 2.5 mm² maximum250 m

Protective and monitoring functions

asymmetry detectionYes

blocking current evaluationYes

power factor monitoringYes

ground fault detectionYes

ground-fault monitoringYes

phase failure detectionYes

phase sequence recognitionYes

voltage detectionYes

monitoring of number of start operationsYes

overvoltage detectionYes

overcurrent detection 1 phaseYes

undervoltage detectionYes

undercurrent detection 1 phaseYes

active power monitoringYes

type of current for monitoringAC current and pulsating DC current (type A) acc. to IEC 62020-1

response time maximum100 ms

diagnostics function at sensor input with residual current transformer short-circuit detectionYes

diagnostics function at sensor input with residual current transformer open-circuit detectionYes

relative measurement deviation of residual current transformer2.5 %

current detectionYes

overload protectionYes

evaluation of thermistor motor protectionYes

total cold resistance number of sensors in series maximum1.5 kΩ

response value of thermoresistor3 400 ... 3 800 Ω

of the short-circuit control9 Ω

release value of thermoresistor1 500 ... 1 650 Ω

Motor control functions

parameterizable overload relayYes

circuit breaker controlYes

direct startYes

reverse startingYes

star-delta circuitYes

star-delta reversing circuitYes

Dahlander circuitYes

Dahlander reversing circuitNo

pole-changing switch circuitYes

pole-changing switch reversing circuitYes

slide controlYes

valve controlYes

Communication/ Protocol

PROFIBUS DP protocolNo

PROFINET IO protocolYes

PROFIsafe protocolNo

Modbus RTUNo

Modbus TCPYes

EtherNet/IPYes

OPC UA ServerYes

LLDPYes

Address Resolution Protocol (ARP)Yes

SNMPYes

HTTPSYes

NTPYes

Media Redundancy Protocol (MRP)No

web serverYes

shared deviceYes

at the Ethernet interface AutocrossoverNo

at the Ethernet interface AutonegotiationYes

at the Ethernet interface AutosensingNo

Media Redundancy Protocol for Planned Duplication (MRPD)No

is supported Device Level Ring (DLR)No

is supported PROFINET system redundancy (S2)Yes

supports PROFIenergy measured valuesNo

supports PROFIenergy shutdownNo

transfer rate10 Mbit/s

transfer rate maximum10 Mbit/s

PROFINET conformity classB

I&M0 - device-specific informationYes

I&M1 - higher level designation/location designationYes

I&M2 - installation dateYes

I&M3 - commentYes

type of electrical connection of the communication interfacespring-loaded terminal (push-in)

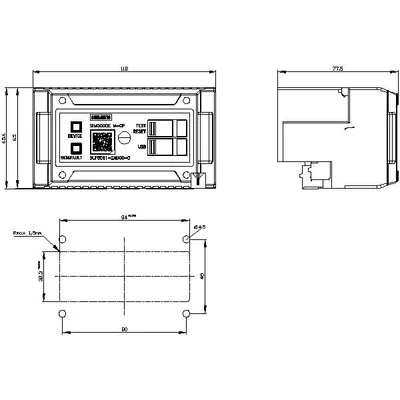

Installation/ mounting/ dimensions

mounting positionany

fastening methodscrew and snap-on mounting

height65.6 mm

width118 mm

depth77.5 mm

top10 mm

bottom20 mm

left0 mm

right0 mm

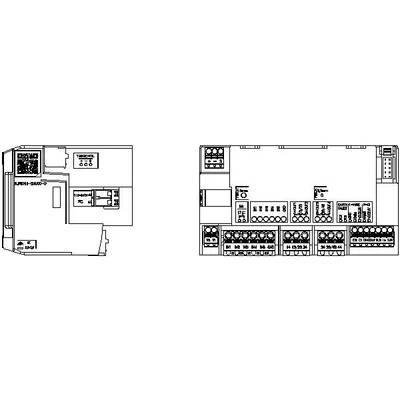

Connections/ Terminals

product component removable terminal for auxiliary and control circuitYes

for auxiliary and control circuitspring-loaded terminals (push-in)

of the relay outputsspring-loaded terminal (push-in)

of the thermistor connectionspring-loaded terminal (push-in)

of the fail-safe digital inputspring-loaded terminal (push-in)

of the connection for ground fault inputspring-loaded terminal (push-in)

of the 1-Wire® connectionspring-loaded terminal (push-in)

of Industrial Ethernet interfacespring-loaded terminal (push-in)

for supply voltage for AWG cables solid1x (24 ... 12)

of the relay outputs solid1x (0.2 ... 2.5 mm²)

of the relay outputs finely stranded with core end processing1x (0.25 ... 2.5 mm²)

of the relay outputs for AWG cables solid1x (24 ... 12)

of the 1-Wire® connection solid1x (0.2 ... 1.5 mm²)

of the 1-Wire® connection finely stranded with core end processing1x (0.25 ... 1.5 mm²)

of the 1-Wire® connection for AWG cables solid1x (26 ... 16)

of the connection for ground fault input solid1x (0.2 ... 1.5 mm²)

of the connection for ground fault input finely stranded with core end processing1x (0.25 ... 1.5 mm²)

of the connection for ground fault input for AWG cables solid1x (26 ... 16)

of the fail-safe digital input solid1x (0.2 ... 1.5 mm²)

of the fail-safe digital input finely stranded with core end processing1x (0.25 ... 1.5 mm²)

of the fail-safe digital input for AWG cables solid1x (26 ... 16)

of the thermistor connection solid1x (0.2 ... 1.5 mm²)

of the thermistor connection finely stranded with core end processing1x (0.25 ... 1.5 mm²)

of the thermistor connection for AWG cables solid1x (26 ... 16)

Ambient conditions

installation altitude at height above sea level maximum2 000 m

during operation-25 ... +60 °C

during storage-40 ... +80 °C

during transport-40 ... +80 °C

during operation according to IEC 607213K24 (condensation occasionally, no precipitation, no water, no ice formation, relative humidity 10 ... 95%), 3C3 (no salt mist), 3B2, 3S5 (sand must not enter the device), 3M6

during storage according to IEC 607211K22 (condensation occasionally, no precipitation, no water, no ice formation, relative humidity 10 ... 95%), 1C2 (no salt mist), 1B2, 1S10 (sand must not enter the device), 1M4

during transport according to IEC 607212K12 (no condensation, no thermal shock), 2C1 (no salt mist), 2B2, 2S1, 2M2

during operation5 ... 95 %

contact rating of auxiliary contacts according to ULB300 / R300

Short-circuit protection

design of short-circuit protection per outputfuse links: gG 6 A, quick-response 10 A (IEC 60947-5-1), miniature circuit breaker C-Char: 2 A (@1 kA) and 6 A (I_K < 500 A)

Electrical Safety

touch protection against electrical shockfinger-safe

ATEX

IECExYes; IECEX BVS 25.0051 X

according to ATEX directive 2014/34/EUBVS 25 ATEX F001 X

explosion device group and category according to ATEX directive 2014/34/EUI (M2), II (2) G, II (2) D / I (M2), II (1/2) G, II (1G/2D)

Galvanic isolation

(electrically) protective separation according to IEC 60947-1all circuits with protective separation (double clearances and creepage distances)

design of the electrical isolationProtective separation in accordance with IEC 60947-1 for all circuits

Main circuit

operating frequency rated value50 ... 60 Hz

Control circuit/ Control

product function soft starter controlYes

type of voltage of the control supply voltageAC/DC

at 50 Hz rated value110 ... 240 V

at 60 Hz rated value110 ... 240 V

1 rated value50 Hz

2 rated value60 Hz

relative symmetrical tolerance of the control supply voltage frequency5 %

initial value0.85

full-scale value1.1

initial value0.85

full-scale value1.1

initial value0.85

full-scale value1.1

at 240 V10 A

at 240 V0.5 ms

Accessories 1
