How can I get a price quote for Siemens 3UF7150-1AA00-0?

You can request a fast quote for Siemens 3UF7150-1AA00-0 from Yılsa Engineering. Reference part number CEY-8EF3B02F9798. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Siemens 3UF7150-1AA00-0 in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Siemens 3UF7150-1AA00-0 genuine and new?

Yes. This Siemens product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Siemens 3UF7150-1AA00-0?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

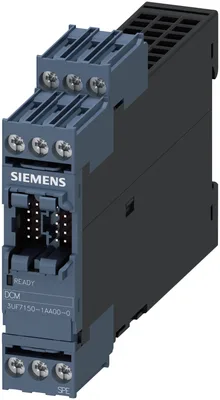

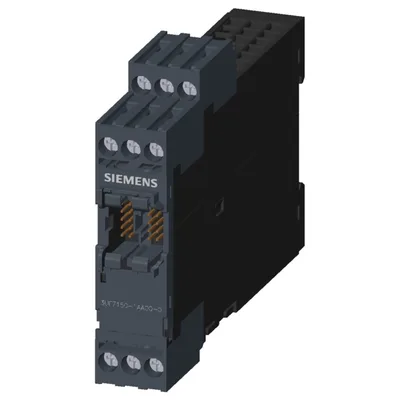

Siemens 3UF7150-1AA00-0

Decoupling module for installation upstream of the current/voltage measuring module at the system interface for application in ungrounded supply systems

SiemensMFR # 3UF7150-1AA00-0SKU # CEY-8EF3B02F9798

product brand nameSIMOCODE

product designationDecoupling module

product type designation3UF7

input for thermistor connectionNo

surge voltage resistance rated value4 000 V

vibration resistance1 … 6 Hz / 15 mm; 6 … 500 Hz / 2 g

Have questions?Chat on WhatsApp

About This Product

Decoupling module for installation upstream of the current/voltage measuring module at the system interface for application in ungrounded supply systems

Siemens 3UF7150-1AA00-0

Genuine, certified Siemens product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

product brand nameSIMOCODE

product designationDecoupling module

product type designation3UF7

General technical data

input for thermistor connectionNo

for wires of main circuit according to IEC 60947-1 rated value6 kV

surge voltage resistance rated value4 000 V

vibration resistance1 … 6 Hz / 15 mm; 6 … 500 Hz / 2 g

reference code according to IEC 81346-2Q

Substance Prohibitance (day/month/year)05/01/2012

SVHC substance nameLead CAS-No. 7439-92-1 Lead monoxide (lead oxide) CAS-No. 1317-36-8 2-methyl-1-(4-methylthiophenyl)-2-morpholinopropan-1-one CAS-No. 71868-10-5 Melamine CAS-No. 108-78-1 6,6'-di-tert-butyl-2,2'-methylenedi-p-cresol CAS-No. 119-47-1

Net Weight0.114 kg

Electromagnetic compatibility

EMC emitted interference according to IEC 60947-1class A

EMC immunity according to IEC 60947-1corresponds to degree of severity 3

due to burst according to IEC 61000-4-41 kV

due to conductor-earth surge according to IEC 61000-4-52 kV

due to conductor-conductor surge according to IEC 61000-4-51 kV

field-based interference according to IEC 61000-4-310 V/m

Inputs/ Outputs

number of outputs as contact-affected switching element0

Protective and monitoring functions

voltage detectionNo

current detectionNo

Installation/ mounting/ dimensions

mounting positionany

fastening methodscrew and snap-on mounting

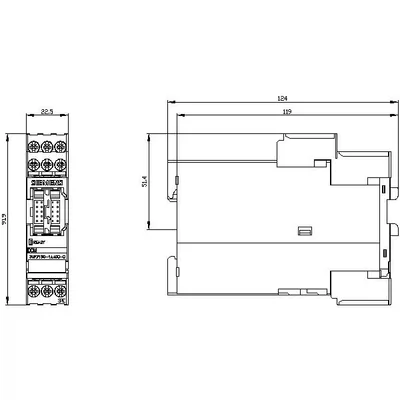

height92 mm

width22.5 mm

depth124 mm

Connections/ Terminals

for main current circuitstraight-through transformers

for auxiliary and control circuitscrew-type terminals

Ambient conditions

3 maximum4 000 m

during operation-25 ... +60 °C

during storage-40 ... +80 °C

during transport-40 ... +80 °C

during operation according to IEC 607213K6 (no formation of ice, no condensation, relative humidity 10 ... 95%), 3C3 (no salt mist), 3S2 (sand must not get into the devices), 3M6

during storage according to IEC 607211K6 (no condensation, relative humidity 10 ... 95%), 1C2 (no salt mist), 1S2 (sand must not get into the devices), 1M4

during transport according to IEC 607212K2, 2C1, 2S1, 2M2

relative humidity during operation5 ... 95 %

IEC 61508

Safety Integrity Level (SIL) according to IEC 615081
