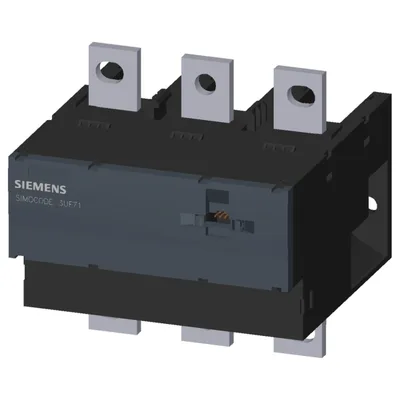

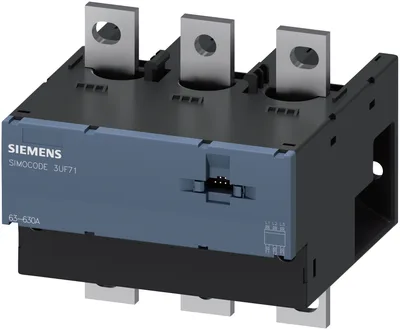

Siemens 3UF7104-1BA00-0

Current measuring module, Set current 63...630 A Overall width 145 mm, busbar connection

SiemensMFR # 3UF7104-1BA00-0SKU # CEY-937FC780B9AC

product brand nameSIMOCODE

product designationCurrent measuring module

product type designationIM

size of the circuit-breakerS10, S12

current measurementYes

voltage measurementNo

Have questions?Chat on WhatsApp

About This Product

Current measuring module, Set current 63...630 A Overall width 145 mm, busbar connection

Siemens 3UF7104-1BA00-0

Genuine, certified Siemens product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

product brand nameSIMOCODE

product designationCurrent measuring module

product type designationIM

General technical data

size of the circuit-breakerS10, S12

current measurementYes

voltage measurementNo

active power measurementNo

energy measurementNo

frequency measurementNo

input for thermistor connectionNo

consumed active power0.2 W

with degree of pollution 3 at AC rated value690 V

for wires of main circuit according to IEC 60947-1 rated value8 kV

surge voltage resistance rated value8 000 V

shock resistance according to IEC 60068-2-2715 g / 11 ms

vibration resistance1 … 6 Hz / 15 mm; 6 … 500 Hz / 2 g

reference code according to IEC 81346-2F

Substance Prohibitance (day/month/year)07/01/2006

SVHC substance nameLead monoxide (lead oxide) CAS-No. 1317-36-8 2-methyl-1-(4-methylthiophenyl)-2-morpholinopropan-1-one CAS-No. 71868-10-5 Melamine CAS-No. 108-78-1

Net Weight1.773 kg

Electromagnetic compatibility

EMC emitted interference according to IEC 60947-1class A

EMC immunity according to IEC 60947-1corresponds to degree of severity 3

due to burst according to IEC 61000-4-42 kV

due to conductor-earth surge according to IEC 61000-4-52 kV

due to conductor-conductor surge according to IEC 61000-4-51 kV

field-based interference according to IEC 61000-4-310 V/m

Inputs/ Outputs

number of outputs as contact-affected switching element0

Protective and monitoring functions

power factor monitoringNo

ground-fault monitoringNo

voltage detectionNo

trip classCLASS 5E, 10E, 15E, 20E, 25E, 30E, 35E and 40E adjustable

current detectionYes

overload protectionYes

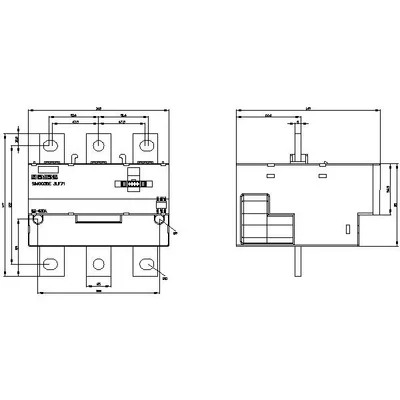

Installation/ mounting/ dimensions

mounting positionany

fastening methoddirect mounting / stand-alone installation

height147 mm

width145 mm

depth148 mm

top30 mm

bottom30 mm

left0 mm

right0 mm

Connections/ Terminals

for main current circuitbusbar connection

solid with core end processing50 mm² ... 240 mm²

stranded with core end processing70 mm² ... 240 mm²

for AWG cables1/0 kcmil ... 500 kcmil

design of the thread of the connection screw at the measurement inputs for currentM8 x 25

Ambient conditions

1 maximum2 000 m

2 maximum3 000 m; max. +50 °C (no protective separation)

3 maximum4 000 m; max. +40 °C (no protective separation)

during operation-25 ... +60 °C

during storage-40 ... +80 °C

during transport-40 ... +80 °C

during operation according to IEC 607213K6 (no formation of ice, no condensation, relative humidity 10 ... 95%), 3C3 (no salt mist), 3S2 (sand must not get into the devices), 3M6

during storage according to IEC 607211K6 (no condensation, relative humidity 10 ... 95%), 1C2 (no salt mist), 1S2 (sand must not get into the devices), 1M4

during transport according to IEC 607212K2, 2C1, 2S1, 2M2

relative humidity during operation5 ... 95 %

Short-circuit protection

product function short circuit protectionNo

IEC 61508

Safety Integrity Level (SIL) according to IEC 615081

ATEX

according to ATEX directive 2014/34/EUBVS 06 ATEX F001

according to UKCAITS21UKEX0464

explosion device group and category according to ATEX directive 2014/34/EUII (2) G, II (2 ) D, I (M2)

Galvanic isolation

(electrically) protective separation according to IEC 60947-1All circuits with protective separation (double creepage paths and clearances), the information in the "Protective Separation" test report, No. A0258, must be observed (link see further information)

Main circuit

number of poles for main current circuit3

adjustable current response value current of the current-dependent overload release63 ... 630 A

— at 50 Hz rated value110 ... 690 V

— at 60 Hz rated value110 ... 690 V

operating frequency rated value50 ... 60 Hz

Control circuit/ Control

type of voltageAC
