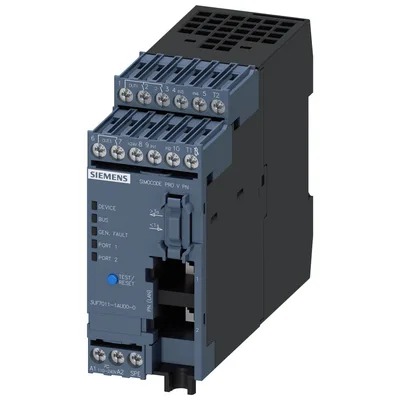

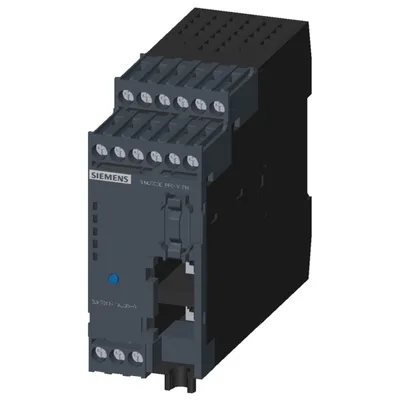

Siemens 3UF7011-1AU00-0

basic device SIMOCODE pro V PN, Ethernet/PROFINET IO, PN system redundancy, OPC UA server, web server, transfer rate 100 Mbps, 2 x bus connection via RJ45, 4 I/3 O freely configurable, Us: 110...240 V AC/DC, input for thermistor connection monostable relay outputs, expandable by expansion modules

SiemensMFR # 3UF7011-1AU00-0SKU # CEY-8EF3B038DD6A

product brand nameSIMOCODE

product designationMotor management system

design of the productbasic unit 3

product type designationpro V PN

current measurementNo

voltage measurementNo

Have questions?Chat on WhatsApp

About This Product

Siemens 3UF7011-1AU00-0

Genuine, certified Siemens product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

product brand nameSIMOCODE

product designationMotor management system

design of the productbasic unit 3

product type designationpro V PN

General technical data

current measurementNo

voltage measurementNo

active power measurementYes

energy measurementNo

frequency measurementNo

bus communicationYes

data acquisition functionYes

diagnostics functionYes

password protectionYes

test functionYes

maintenance functionYes

input for thermistor connectionYes

digital inputYes

input for analog temperature sensorsNo

input for ground fault detectionNo

relay outputYes

temperature monitoring moduleYes

current measuring moduleYes

current/voltage measuring moduleYes

fail-safe digital I/O moduleYes

ground-fault monitoring moduleYes

decoupling moduleYes

analog I/O moduleYes

digital I/O module with monostable outputsYes

digital I/O module with bistable outputsYes

control unit with displayYes

control unitYes

apparent power consumption8.3 V·A

consumed active power4.5 W

insulation voltage with degree of pollution 3 at AC rated value300 V

surge voltage resistance rated value4 000 V

according to IEC 60068-2-2715 g / 11 ms

vibration resistance1 … 6 Hz / 15 mm; 6 … 500 Hz / 2 g

at 24 V6 A

at 120 V6 A

at 230 V3 A

at 24 V2 A

at 60 V0.55 A

at 125 V0.25 A

mechanical service life (operating cycles) typical10 000 000

electrical endurance (operating cycles) typical100 000

buffering time in the event of power failure0.02 s

reference code according to IEC 81346-2F

at 50 °C6 A

at 60 °C5 A

type of input characteristicType 1 in accordance with EN 61131-2

Substance Prohibitance (day/month/year)03/01/2017

SVHC substance nameLead CAS-No. 7439-92-1 Lead monoxide (lead oxide) CAS-No. 1317-36-8 2-methyl-1-(4-methylthiophenyl)-2-morpholinopropan-1-one CAS-No. 71868-10-5 Melamine CAS-No. 108-78-1 4,4'-isopropylidenediphenol (Bisphenol A, BPA) CAS-No. 80-05-7 2-benzyl-2-dimethylamino-4'-morpholinobutyrophenone CAS-No. 119313-12-1

Net Weight0.307 kg

Electromagnetic compatibility

EMC emitted interference according to IEC 60947-1class A

EMC immunity according to IEC 60947-1corresponds to degree of severity 3

due to burst according to IEC 61000-4-42 kV (power ports) / 1 kV (signal ports)

due to conductor-earth surge according to IEC 61000-4-52 kV

due to conductor-conductor surge according to IEC 61000-4-51 kV

due to high-frequency radiation according to IEC 61000-4-610 V

field-based interference according to IEC 61000-4-310 V/m

electrostatic discharge according to IEC 61000-4-26 kV contact discharge / 8 kV air discharge

conducted HF interference emissions according to CISPR11corresponds to degree of severity A

field-bound HF interference emission according to CISPR11corresponds to degree of severity A

Inputs/ Outputs

parameterizable inputsYes

parameterizable outputsYes

number of inputs4

for thermistor connection1

number of digital inputs with a common reference potential4

type 1 acc. to IEC 61131Yes

rated value24 V

number of outputs3

number of semiconductor outputs0

number of outputs as contact-affected switching element3

switching behaviormonostable

number of relay outputs3

type of relay outputsMonostable

wire length for digital signals maximum300 m

with conductor cross-section = 0.5 mm² maximum50 m

with conductor cross-section = 1.5 mm² maximum150 m

with conductor cross-section = 2.5 mm² maximum250 m

Protective and monitoring functions

asymmetry detectionYes

blocking current evaluationYes

power factor monitoringYes

ground fault detectionYes

ground-fault monitoringNo

phase failure detectionYes

phase sequence recognitionYes

voltage detectionYes

monitoring of number of start operationsYes

overvoltage detectionYes

overcurrent detection 1 phaseYes

undervoltage detectionYes

undercurrent detection 1 phaseYes

active power monitoringYes

current detectionYes

overload protectionYes

evaluation of thermistor motor protectionYes

total cold resistance number of sensors in series maximum1.5 kΩ

response value of thermoresistor3 400 ... 3 800 Ω

of the short-circuit control9 Ω

release value of thermoresistor1 500 ... 1 650 Ω

Motor control functions

parameterizable overload relayYes

circuit breaker controlYes

direct startYes

reverse startingYes

star-delta circuitYes

star-delta reversing circuitYes

Dahlander circuitYes

Dahlander reversing circuitYes

pole-changing switch circuitYes

pole-changing switch reversing circuitYes

slide controlYes

valve controlYes

Communication/ Protocol

PROFIBUS DP protocolNo

PROFINET IO protocolYes

PROFIsafe protocolYes

Modbus RTUNo

EtherNet/IPNo

OPC UA ServerYes

LLDPYes

Address Resolution Protocol (ARP)Yes

SNMPYes

HTTPSYes

NTPYes

Media Redundancy Protocol (MRP)Yes

web serverYes

shared deviceYes

at the Ethernet interface AutocrossoverYes

at the Ethernet interface AutonegotiationYes

at the Ethernet interface AutosensingYes

Media Redundancy Protocol for Planned Duplication (MRPD)Yes

is supported Device Level Ring (DLR)No

is supported PROFINET system redundancy (S2)Yes

supports PROFIenergy measured valuesYes

supports PROFIenergy shutdownYes

transfer rate100 Mbit/s

transfer rate maximum100 Mbit/s

PROFINET conformity classC

I&M0 - device-specific informationYes

I&M1 - higher level designation/location designationYes

I&M2 - installation dateYes

I&M3 - commentYes

type of electrical connection of the communication interface2x RJ45

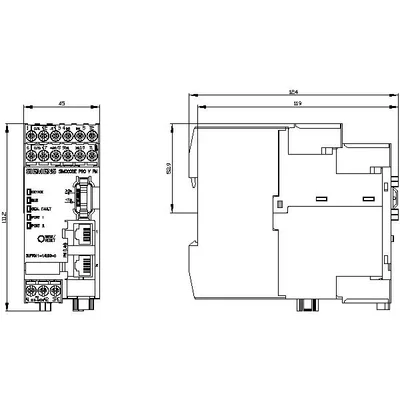

Installation/ mounting/ dimensions

mounting positionany

fastening methodscrew and snap-on mounting

height111 mm

width45 mm

depth124 mm

top40 mm

bottom40 mm

left0 mm

right0 mm

Connections/ Terminals

product component removable terminal for auxiliary and control circuitYes

for auxiliary and control circuitscrew-type terminals

solid1x (0.5 ... 4.0mm²), 2x (0.5 ... 2.5 mm²)

finely stranded with core end processing1x (0.5 ... 2.5 mm²), 2x (0.5 ... 1.5 mm²)

for AWG cables solid1x (20 ... 12), 2x (20 ... 14)

for AWG cables stranded1x (20 ... 14), 2x (20 ... 16)

tightening torque with screw-type terminals0.8 ... 1.2 N·m

tightening torque [lbf·in] with screw-type terminals7 ... 10.3 lbf·in

Ambient conditions

installation altitude at height above sea level maximum2 000 m

during operation-25 ... +60 °C

during storage-40 ... +80 °C

during transport-40 ... +80 °C

during operation according to IEC 607213K6 (no formation of ice, no condensation, relative humidity 10 ... 95%), 3C3 (no salt mist), 3S2 (sand must not get into the devices), 3M6

during storage according to IEC 607211K6 (no condensation, relative humidity 10 ... 95%), 1C2 (no salt mist), 1S2 (sand must not get into the devices), 1M4

during transport according to IEC 607212K2, 2C1, 2S1, 2M2

during operation5 ... 95 %

contact rating of auxiliary contacts according to ULB300 / R300

Short-circuit protection

design of short-circuit protection per outputFuse links: gG 6 A, quick-response 10 A (IEC 60947-5-1), miniature circuit-breaker C char.: 1.6 A (IEC 60947-5-1) or 6 A (I_K < 500 A)

Electrical Safety

touch protection against electrical shockfinger-safe

ATEX

IECExYes; IECEx BVS 20.0020 / IECEx PTB 18.0004X

according to ATEX directive 2014/34/EUBVS 06 ATEX F001, PTB 18 ATEX 5003 X

according to UKCAITS21UKEX0464, ITS21UKEX0455X

explosion device group and category according to ATEX directive 2014/34/EUI (M2), II (2) G, II (2) D / I (M2), II (1/2) G, II (1G/2D)

Galvanic isolation

(electrically) protective separation according to IEC 60947-1All circuits with protective separation (double creepage paths and clearances), the information in the "Protective Separation" test report, No. A0258, must be observed (link see further information)

design of the electrical isolationProtective separation in accordance with IEC 60947-1 for all circuits

Control circuit/ Control

product function soft starter controlYes

type of voltage of the control supply voltageAC/DC

at 50 Hz rated value110 ... 240 V

at 60 Hz rated value110 ... 240 V

1 rated value50 Hz

2 rated value60 Hz

relative symmetrical tolerance of the control supply voltage frequency5 %

control supply voltage at DC rated value110 ... 240 V

initial value0.85

full-scale value1.1
