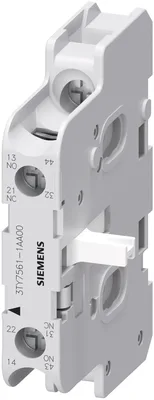

Siemens 3TY7561-1AA00

Auxiliary switch block for size 2...14 1st auxiliary switch block left or right

SiemensMFR # 3TY7561-1AA00SKU # CEY-937FC780B9CC

product categoryAuxiliary switch

product designationauxiliary switch

product type designation3TY7

suitability for useContactor relay and power contactor

size of contactor2 ... 14

surge voltage resistance rated value6 kV

Have questions?Chat on WhatsApp

About This Product

Auxiliary switch block for size 2...14 1st auxiliary switch block left or right

Siemens 3TY7561-1AA00

Genuine, certified Siemens product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

product categoryAuxiliary switch

product designationauxiliary switch

product type designation3TY7

suitability for useContactor relay and power contactor

General technical data

size of contactor2 ... 14

insulation voltage with degree of pollution 3 at AC rated value690 V

surge voltage resistance rated value6 kV

protection class IP on the frontIP20

mechanical service life (operating cycles) typical10 000 000

Substance Prohibitance (day/month/year)07/01/2006

Net Weight0.038 kg

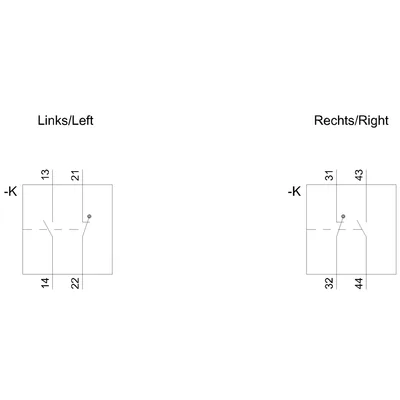

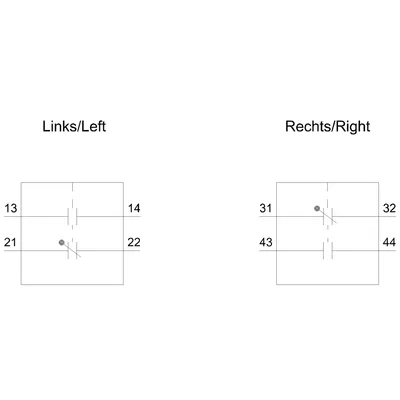

instantaneous contact1

lagging switching0

instantaneous contact1

leading contact0

number of CO contacts of auxiliary contacts instantaneous contact0

operational current at AC-15 at 690 V rated value2.3 A

at 24 V10 A

at 230 V10 A

at 125 V10 A

operational current of auxiliary contacts at AC-12 maximum10 A

at 24 V10 A

at 230 V5.6 A

at 400 V3.6 A

at 24 V10 A

at 110 V3.2 A

at 220 V0.9 A

at 24 V10 A

at 48 V5 A

at 60 V5 A

at 110 V1.14 A

at 125 V0.98 A

at 220 V0.48 A

Ambient conditions

during operation-25 ... +55 °C

during storage-55 ... +80 °C

Safety related data

positively driven operation according to IEC 60947-5-1Yes

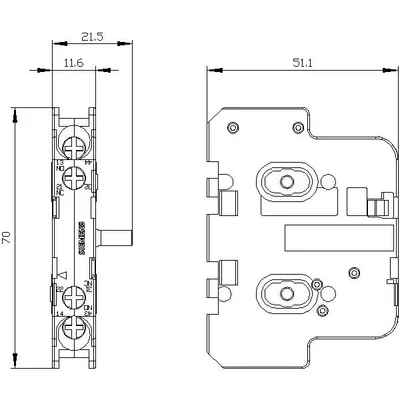

Installation/ mounting/ dimensions

fastening methodsnap-on mounting

height70 mm

width12 mm

depth51.5 mm

Connections/ Terminals

type of electrical connection for auxiliary and control circuitscrew-type terminals

solid or stranded0.5 ... 2.5 mm²

finely stranded with core end processing0.5 ... 2.5 mm²

— solid or stranded2x (0,5 ... 1,0 mm²), 2x (1,0 ... 2,5 mm²)

— finely stranded with core end processing2x (0.5 ... 1.0 mm²), 2x (0.75 ... 2.5 mm²)

for AWG cables for auxiliary contacts2x (18 ... 12)

AWG number as coded connectable conductor cross section for auxiliary contacts18 ... 12
