How can I get a price quote for Siemens 3TY6501-1K?

You can request a fast quote for Siemens 3TY6501-1K from Yılsa Engineering. Reference part number CEY-8EF3B038DCB4. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Siemens 3TY6501-1K in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Siemens 3TY6501-1K genuine and new?

Yes. This Siemens product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Siemens 3TY6501-1K?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

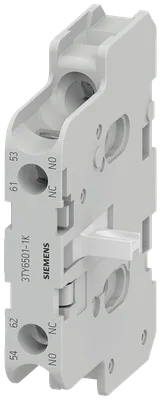

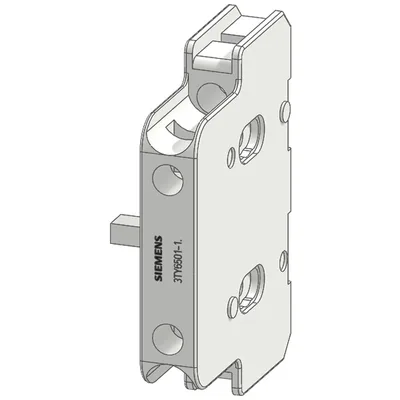

Siemens 3TY6501-1K

2nd auxiliary switch block Left, for 3TB46...3TB50

SiemensMFR # 3TY6501-1KSKU # CEY-8EF3B038DCB4

product categoryAuxiliary switch

product designationauxiliary switch

product type designation3TY6

suitability for useContactor relay and power contactor

size of contactor2 ... 6

surge voltage resistance rated value6 kV

Have questions?Chat on WhatsApp

About This Product

Siemens 3TY6501-1K (2nd auxiliary switch block Left, for 3TB46...3TB50) is supplied genuine and fast by Yılsa Engineering. Get an instant quote for Siemens 3TY6501-1K — price, stock availability and technical specifications.

Siemens 3TY6501-1K

Genuine, certified Siemens product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

product categoryAuxiliary switch

product designationauxiliary switch

product type designation3TY6

suitability for useContactor relay and power contactor

General technical data

size of contactor2 ... 6

insulation voltage with degree of pollution 3 at AC rated value690 V

surge voltage resistance rated value6 kV

protection class IP on the frontIP20

mechanical service life (operating cycles) typical10 000 000

Substance Prohibitance (day/month/year)07/01/2006

Net Weight0.045 kg

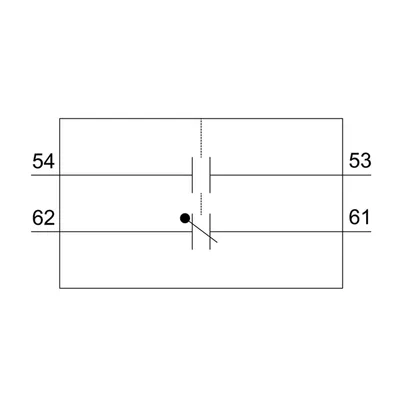

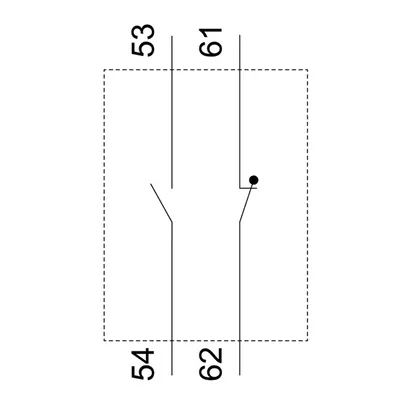

instantaneous contact1

lagging switching0

instantaneous contact1

leading contact0

number of CO contacts of auxiliary contacts instantaneous contact0

at 24 V10 A

at 230 V10 A

at 125 V10 A

operational current of auxiliary contacts at AC-12 maximum10 A

at 24 V10 A

at 230 V5.6 A

at 400 V3.6 A

at 24 V10 A

at 110 V3.2 A

at 220 V0.9 A

at 24 V10 A

at 48 V5 A

at 60 V5 A

at 110 V1.14 A

at 125 V0.98 A

at 220 V0.48 A

Ambient conditions

during operation-25 ... +55 °C

during storage-55 ... +80 °C

Safety related data

positively driven operation according to IEC 60947-5-1Yes

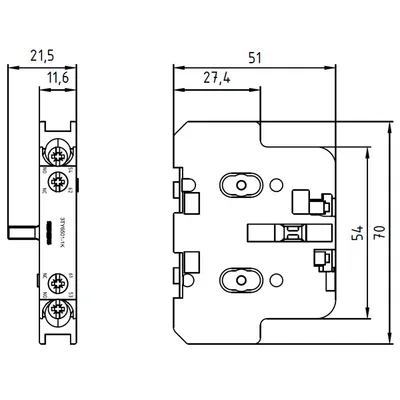

Installation/ mounting/ dimensions

fastening methodsnap-on mounting

height70 mm

width12 mm

depth51.5 mm

Connections/ Terminals

type of electrical connection for auxiliary and control circuitscrew-type terminals

solid or stranded0.5 ... 2.5 mm²

finely stranded with core end processing0.5 ... 2.5 mm²

— solid or stranded2x (0,5 ... 1,0 mm²), 2x (1,0 ... 2,5 mm²)

— finely stranded with core end processing2x (0.5 ... 1.0 mm²), 2x (0.75 ... 2.5 mm²)

for AWG cables for auxiliary contacts2x (18 ... 12)

AWG number as coded connectable conductor cross section for auxiliary contacts18 ... 12
