How can I get a price quote for Siemens 3TY2781-2D?

You can request a fast quote for Siemens 3TY2781-2D from Yılsa Engineering. Reference part number CEY-8EF3B038DCD9. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Siemens 3TY2781-2D in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Siemens 3TY2781-2D genuine and new?

Yes. This Siemens product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Siemens 3TY2781-2D?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

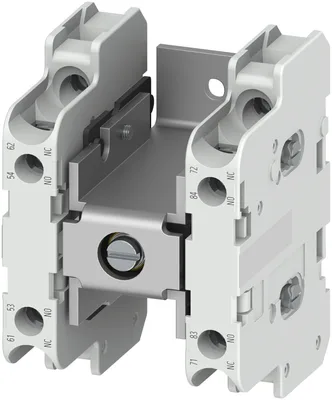

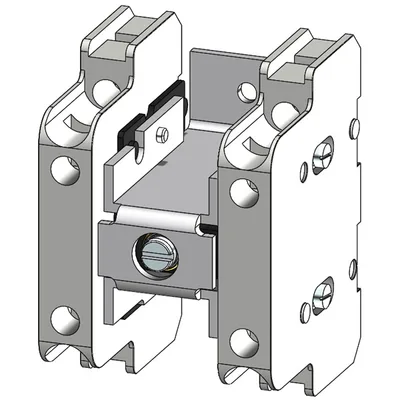

Siemens 3TY2781-2D

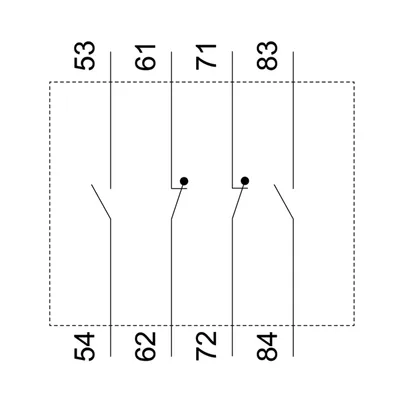

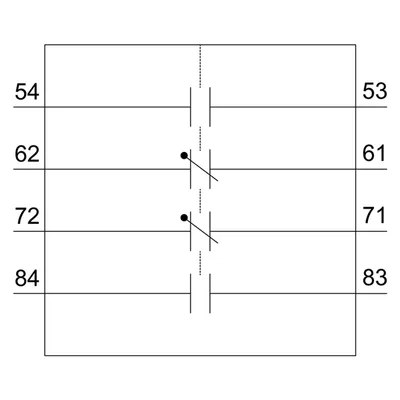

auxiliary switch block 2 NO+2 NC, right

SiemensMFR # 3TY2781-2DSKU # CEY-8EF3B038DCD9

product categoryAuxiliary switch

product designationauxiliary switch

product type designation3TY2

suitability for useContactor relay and power contactor

size of contactor12

surge voltage resistance rated value6 kV

Have questions?Chat on WhatsApp

About This Product

Siemens 3TY2781-2D (auxiliary switch block 2 NO+2 NC, right) is supplied genuine and fast by Yılsa Engineering. Get an instant quote for Siemens 3TY2781-2D — price, stock availability and technical specifications.

Siemens 3TY2781-2D

Genuine, certified Siemens product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

product categoryAuxiliary switch

product designationauxiliary switch

product type designation3TY2

suitability for useContactor relay and power contactor

General technical data

size of contactor12

insulation voltage with degree of pollution 3 at AC rated value690 V

surge voltage resistance rated value6 kV

protection class IP on the frontIP20

mechanical service life (operating cycles) typical30 000 000

Substance Prohibitance (day/month/year)07/01/2006

SVHC substance nameLead CAS-No. 7439-92-1

Net Weight0.169 kg

instantaneous contact2

lagging switching0

instantaneous contact2

leading contact0

number of CO contacts of auxiliary contacts instantaneous contact0

at 24 V10 A

at 230 V10 A

at 125 V10 A

operational current of auxiliary contacts at AC-12 maximum10 A

at 24 V10 A

at 230 V5.6 A

at 400 V3.6 A

at 24 V10 A

at 110 V3.2 A

at 220 V0.9 A

at 24 V10 A

at 48 V5 A

at 60 V5 A

at 110 V1.14 A

at 125 V0.98 A

at 220 V0.48 A

Ambient conditions

during operation-25 ... +55 °C

during storage-55 ... +80 °C

Safety related data

positively driven operation according to IEC 60947-5-1No

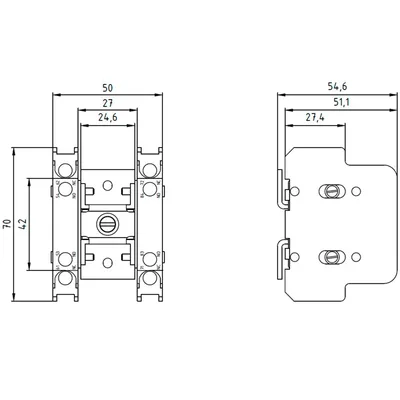

Installation/ mounting/ dimensions

fastening methodsnap-on mounting

height70 mm

width52 mm

depth54 mm

Connections/ Terminals

type of electrical connection for auxiliary and control circuitscrew-type terminals

solid or stranded0.5 ... 2.5 mm²

finely stranded with core end processing0.5 ... 2.5 mm²

— solid or stranded2x (0,5 ... 1,0 mm²), 2x (1,0 ... 2,5 mm²)

— finely stranded with core end processing2x (0.5 ... 1.0 mm²), 2x (0.75 ... 2.5 mm²)

for AWG cables for auxiliary contacts2x (18 ... 12)

AWG number as coded connectable conductor cross section for auxiliary contacts18 ... 12
