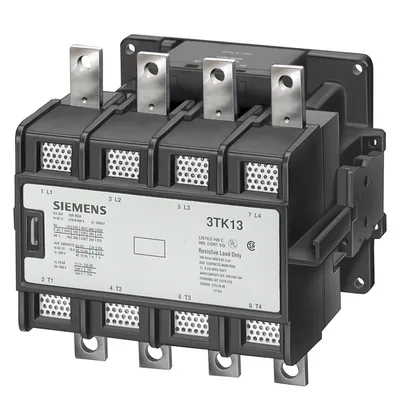

Siemens 3TK1742-0AF0
contactor, AC-1, 4-pole, 1000 A, main contacts 4 NO, auxiliary contacts 2 NO + 2 NC, AC operation 110 V AC 50 Hz/120 V AC 60 Hz
product type designation3TK17
protection class IP on the frontIP00
reference code according to IEC 81346-2Q
Substance Prohibitance (day/month/year)07/01/2006
Net Weight20.2 kg
ambient temperature during operation-25 ... +55 °C
About This Product
contactor, AC-1, 4-pole, 1000 A, main contacts 4 NO, auxiliary contacts 2 NO + 2 NC, AC operation 110 V AC 50 Hz/120 V AC 60 Hz
Siemens 3TK1742-0AF0
- Genuine, certified Siemens product
- Fast sourcing through a worldwide supply network
- Product selection and compatibility support from our technical team
- Equivalent and alternative product suggestions
- Quotation and lead time tailored to your request
Specifications
product type designation3TK17
protection class IP on the frontIP00
reference code according to IEC 81346-2Q
Substance Prohibitance (day/month/year)07/01/2006
Net Weight20.2 kg
ambient temperature during operation-25 ... +55 °C
number of poles for main current circuit4
number of NO contacts for main contacts4
number of NC contacts for main contacts0
— at ambient temperature 40 °C rated value1 000 A
at AC-1 at 400 V rated value655 kW
type of voltage of the control supply voltageAC
at 50 Hz rated value110 V
1 rated value50 Hz
2 rated value60 Hz
control version of the switch operating mechanismconventional
number of NC contacts for auxiliary contacts2
instantaneous contact2
lagging switching0
instantaneous contact2
leading contact0
identification number and letter for switching elements22
fastening method side-by-side mountingYes
fastening methodscrew fixing
height272 mm
width266 mm
depth225.5 mm
for main current circuitscrew-type terminals
for auxiliary and control circuitscrew-type terminals
