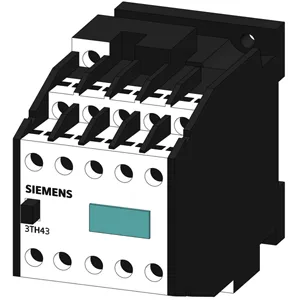

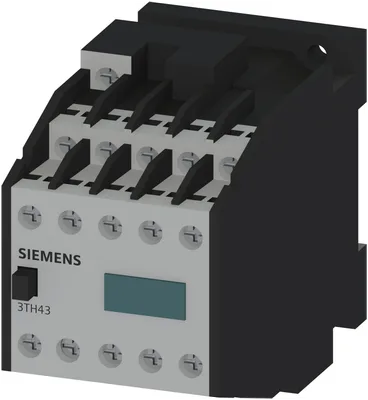

Siemens 3TH4391-0AC2

contactor relay, 91E, 9 NO + 1 NC, screw terminal, AC operation, 24 V AC 50/60 Hz

SiemensMFR # 3TH4391-0AC2SKU # CEY-8EF3B02C2FD9

product designationAuxiliary contactor

product type designation3TH4

size of contactor0

reference code according to IEC 81346-2K

Substance Prohibitance (day/month/year)12/31/2099

Net Weight0.438 kg

Have questions?Chat on WhatsApp

About This Product

contactor relay, 91E, 9 NO + 1 NC, screw terminal, AC operation, 24 V AC 50/60 Hz

Siemens 3TH4391-0AC2

Genuine, certified Siemens product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

product designationAuxiliary contactor

product type designation3TH4

size of contactor0

reference code according to IEC 81346-2K

Substance Prohibitance (day/month/year)12/31/2099

Net Weight0.438 kg

ambient temperature during operation-25 ... +55 °C

type of voltage of the control supply voltageAC

at 50 Hz rated value24 V

at 60 Hz rated value24 V

1 rated value50 Hz

2 rated value60 Hz

number of NC contacts for auxiliary contacts1

delayed switching0

lagging switching0

make-before-break switching0

number of NO contacts for auxiliary contacts9

delayed switching0

leading contact0

make-before-break switching0

number of CO contacts for auxiliary contacts0

identification number and letter for switching elements91 E

at 230 V rated value10 A

at 400 V rated value6 A

fastening methodscrew and snap-on mounting onto 35 mm DIN rail according to DIN EN 50022

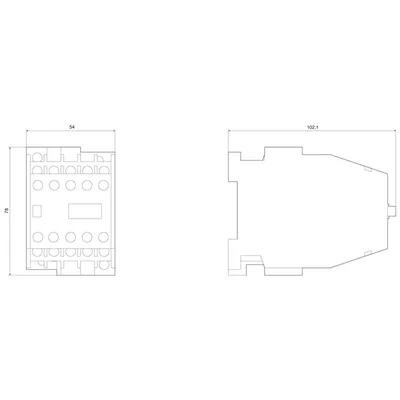

height78 mm

width55 mm

depth102 mm

type of electrical connection for auxiliary and control circuitscrew-type terminals

Safety related data

product function positively driven operation according to IEC 60947-5-1Yes

B10 value with high demand rate according to SN 319201 000 000; With 0.3 x Ie

IEC 61508

for proof test interval or service life according to IEC 6150820 a

Electrical Safety

protection class IP on the front according to IEC 60529IP00; IP20 with screws tightened, even for contacts not in use
