Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

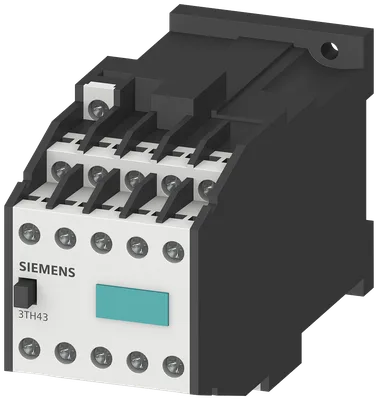

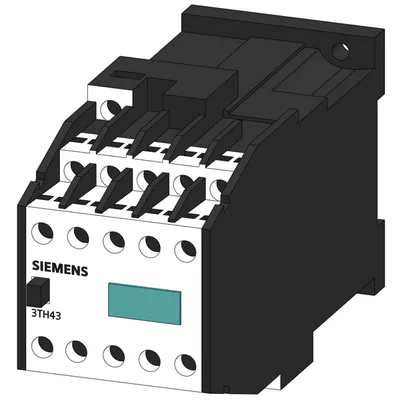

Siemens 3TH4346-0BB4

contactor relay, 7 NO + 3 NC 1U, screw terminal, DC operation, 24 V DC

SiemensMFR # 3TH4346-0BB4SKU # CEY-8EF3B0332F2C

product designationAuxiliary contactor

product type designation3TH4

size of contactor0

reference code according to IEC 81346-2K

Substance Prohibitance (day/month/year)03/01/2017

Net Weight0.669 kg

Have questions?Chat on WhatsApp

About This Product

contactor relay, 7 NO + 3 NC 1U, screw terminal, DC operation, 24 V DC

Siemens 3TH4346-0BB4

Genuine, certified Siemens product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

product designationAuxiliary contactor

product type designation3TH4

size of contactor0

reference code according to IEC 81346-2K

Substance Prohibitance (day/month/year)03/01/2017

Net Weight0.669 kg

ambient temperature during operation-25 ... +55 °C

type of voltage of the control supply voltageDC

control supply voltage at DC rated value24 V

number of NC contacts for auxiliary contacts2

delayed switching0

lagging switching1

make-before-break switching1

number of NO contacts for auxiliary contacts6

delayed switching0

leading contact1

make-before-break switching1

number of CO contacts for auxiliary contacts0

identification number and letter for switching elements73 E, 1U

at 230 V rated value10 A

at 400 V rated value6 A

fastening methodscrew and snap-on mounting onto 35 mm DIN rail according to DIN EN 50022

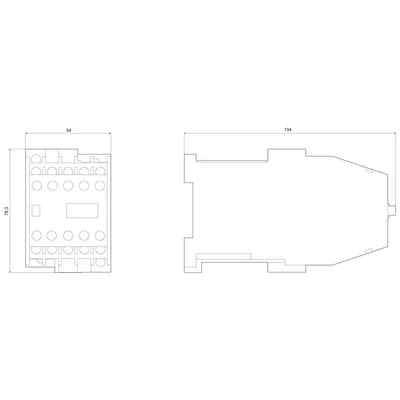

height78 mm

width55 mm

depth135 mm

type of electrical connection for auxiliary and control circuitscrew-type terminals

Safety related data

product function positively driven operation according to IEC 60947-5-1No

B10 value with high demand rate according to SN 319201 000 000; With 0.3 x Ie

IEC 61508

for proof test interval or service life according to IEC 6150820 a

Electrical Safety

protection class IP on the front according to IEC 60529IP00; IP20 with screws tightened, even for contacts not in use

Accessories 4

Genuine accessories that can be used with the Siemens 3TH4346-0BB4 motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.

Part no	Description	Compatible motors
3TX7402-3A	Aksesuar · Surge suppressor · interference suppression diodes
3TX7402-3D	Aksesuar · Surge suppressor · diode assemblies
3TX7402-3G	Aksesuar · Surge suppressor · varistors
3TX7402-3R	Aksesuar · Surge suppressor · RC elements
