How can I get a price quote for Siemens 3TG1010-0AG2?

You can request a fast quote for Siemens 3TG1010-0AG2 from Yılsa Engineering. Reference part number CEY-8EF3B03164C2. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Siemens 3TG1010-0AG2 in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Siemens 3TG1010-0AG2 genuine and new?

Yes. This Siemens product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Siemens 3TG1010-0AG2?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

Siemens 3TG1010-0AG2

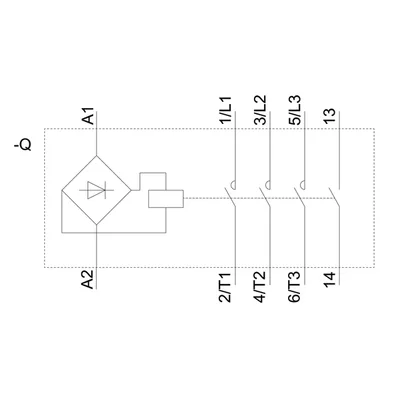

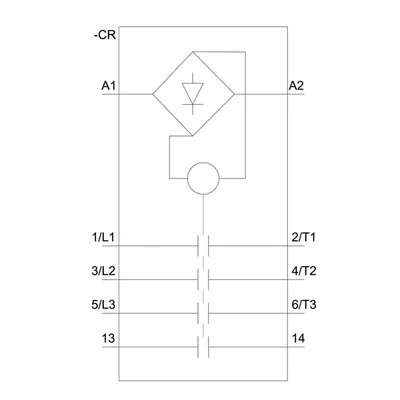

power relay, AC-3, 8.4 A, 4 kW / 400 V, 3-pole, 110 V AC, 45-450 Hz, auxiliary contacts: 1 NO, screw terminal

SiemensMFR # 3TG1010-0AG2SKU # CEY-8EF3B03164C2

consumed active power4 W

reference code according to IEC 81346-2K

Substance Prohibitance (day/month/year)07/01/2006

Net Weight148.5 g

ambient temperature during operation-25 ... +55 °C

number of poles4

Have questions?Chat on WhatsApp

About This Product

power relay, AC-3, 8.4 A, 4 kW / 400 V, 3-pole, 110 V AC, 45-450 Hz, auxiliary contacts: 1 NO, screw terminal

Siemens 3TG1010-0AG2

Genuine, certified Siemens product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

consumed active power4 W

reference code according to IEC 81346-2K

Substance Prohibitance (day/month/year)07/01/2006

Net Weight148.5 g

ambient temperature during operation-25 ... +55 °C

number of poles4

number of NO contacts for main contacts3

number of NC contacts for main contacts0

type of voltageAC

at AC-1 at 400 V rated value20 A

at AC-3 at 400 V rated value8.4 A

at AC-3e at 400 V rated value6.4 A

at AC-3 at 400 V rated value4 kW

at AC-3e at 400 V rated value3 kW

at 50 Hz rated value110 V

at 60 Hz rated value110 V

supply voltage frequency for auxiliary and control circuit rated value45 ... 450 Hz

number of NC contacts for auxiliary contacts0

number of NO contacts for auxiliary contacts1

number of CO contacts for auxiliary contacts0

fastening method side-by-side mountingYes

fastening methodscrew and snap-on mounting onto 35 mm DIN rail

height62 mm

width36 mm

depth60 mm

for main current circuitscrew-type terminals

for auxiliary and control circuitscrew-type terminals

Safety related data

mirror contact according to IEC 60947-4-1No

suitable for safety functionYes

service life maximum20 a

with low demand rate according to SN 3192040 %

with high demand rate according to SN 3192073 %

B10 value with high demand rate according to SN 31920400 000

failure rate [FIT] with low demand rate according to SN 31920100 1/s

ISO 13849

device type according to ISO 13849-13

overdimensioning according to ISO 13849-2 necessaryYes

IEC 61508

safety device type according to IEC 61508-2Type A

Electrical Safety

protection class IP on the front according to IEC 60529IP00
