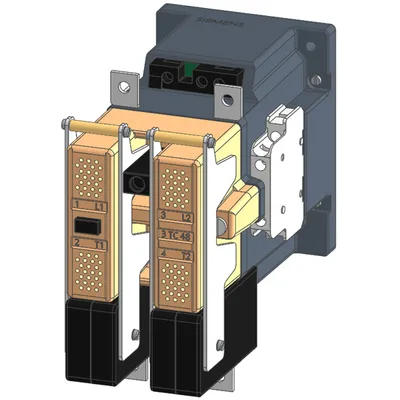

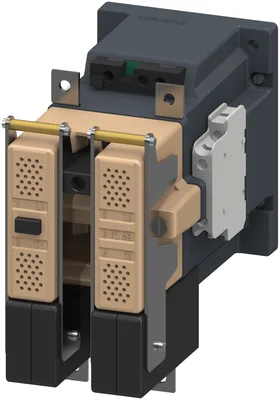

Siemens 3TC4817-0AE4

contactor, DC-3/DC-5, 75 A, 2-pole, 60 V DC, auxiliary contacts: 2 NO + 2 NC, connecting bar, frame size 4

SiemensMFR # 3TC4817-0AE4SKU # CEY-8EF3B038E262

product designationContactor

product type designation3TC

size of contactor4

function module for communicationNo

auxiliary switchYes

insulation voltage rated value800 V

Have questions?Chat on WhatsApp

About This Product

contactor, DC-3/DC-5, 75 A, 2-pole, 60 V DC, auxiliary contacts: 2 NO + 2 NC, connecting bar, frame size 4

Siemens 3TC4817-0AE4

Genuine, certified Siemens product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

product designationContactor

product type designation3TC

General technical data

size of contactor4

function module for communicationNo

auxiliary switchYes

insulation voltage rated value800 V

maximum permissible voltage for protective separation between coil and main contacts according to EN 60947-1300 V

at DC10 g / 5 ms, 5 g / 10 ms

of contactor typical10 000 000

of the contactor with added auxiliary switch block typical10 000 000

reference code according to IEC 81346-2Q

Substance Prohibitance (day/month/year)03/01/2017

Net Weight4.38 kg

Ambient conditions

during operation-25 ... +55 °C

during storage-50 ... +80 °C

relative humidity minimum10 %

relative humidity at 55 °C according to IEC 60068-2-30 maximum95 %

Main circuit

number of poles2

number of poles for main current circuit2

number of NO contacts for main contacts2

number of NC contacts for main contacts0

type of voltageDC

— at 24 V rated value75 A

— at 110 V rated value75 A

— at 220 V rated value75 A

— at 24 V rated value75 A

— at 110 V rated value75 A

— at 220 V rated value75 A

— at 440 V rated value75 A

— at 600 V rated value75 A

— at 750 V rated value75 A

— at 220 V rated value75 A

— at 600 V rated value75 A

— at 750 V rated value75 A

— at 24 V rated value75 A

— at 110 V rated value75 A

— at 220 V rated value75 A

— at 24 V rated value75 A

— at 110 V rated value75 A

— at 220 V rated value75 A

— at 440 V rated value75 A

— at 600 V rated value75 A

— at 750 V rated value75 A

— at 110 V rated value8.2 kW

— at 220 V rated value16.5 kW

— at 440 V rated value33 kW

— at 750 V rated value56 kW

— at 110 V rated value6.5 kW

— at 220 V rated value13 kW

— at 440 V rated value27 kW

— at 600 V rated value38 kW

— at 750 V rated value45 kW

at DC-1 maximum1 000 1/h

at DC-3 maximum600 1/h

at DC-5 maximum600 1/h

Control circuit/ Control

type of voltage of the control supply voltageDC

control supply voltage at DC rated value60 V

closing power of magnet coil at DC19 W

holding power of magnet coil at DC19 W

closing delay at DC90 ... 380 ms

opening delay at DC17 ... 28 ms

arcing time20 ... 30 ms

Auxiliary circuit

number of NC contacts for auxiliary contacts2

instantaneous contact2

number of NO contacts for auxiliary contacts2

instantaneous contact2

number of CO contacts for auxiliary contacts0

identification number and letter for switching elements22

operational current at AC-12 maximum10 A

at 230 V rated value5.6 A

at 400 V rated value3.6 A

at 500 V rated value2.5 A

at 24 V rated value10 A

at 48 V rated value10 A

at 60 V rated value10 A

at 110 V rated value3.2 A

at 125 V rated value2.5 A

at 220 V rated value0.9 A

at 600 V rated value0.22 A

at 24 V rated value10 A

at 48 V rated value5 A

at 60 V rated value5 A

at 110 V rated value1.14 A

at 125 V rated value0.98 A

at 220 V rated value0.48 A

at 600 V rated value0.07 A

UL/CSA ratings

contact rating of auxiliary contacts according to ULA600 / P600

Short-circuit protection

— with type of coordination 1 required2 x 3NA31 (160 A) in series (750 V, 5 kA)

— with type of coordination 2 required2 x 3NA31 (63 A) in series (750 V, 5 kA)

for short-circuit protection of the auxiliary switch requiredgG: 16 A (500 V, 1 kA)

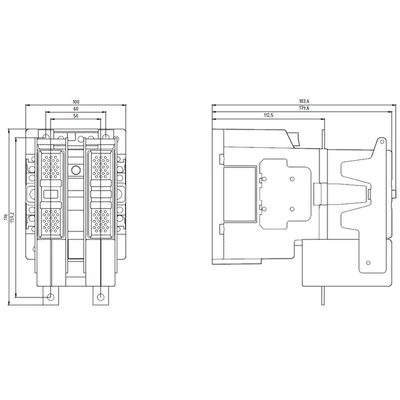

Installation/ mounting/ dimensions

mounting position+/-22,5° rotation possible on vertical mounting surface; can be tilted forward and backward by +/- 22.5° on vertical mounting surface

fastening method side-by-side mountingYes

fastening methodscrew fixing

height177.5 mm

width100 mm

depth184 mm

— forwards20 mm

— backwards0 mm

— upwards10 mm

— downwards10 mm

— at the side10 mm

— forwards55 mm

— backwards0 mm
