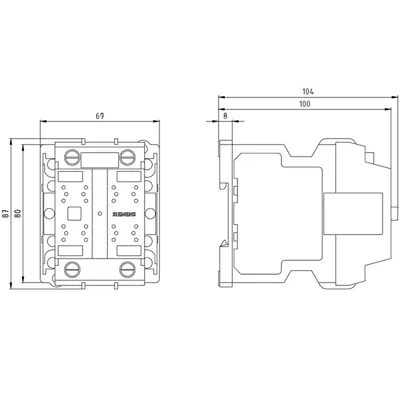

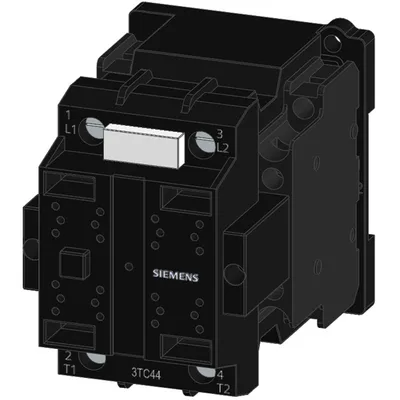

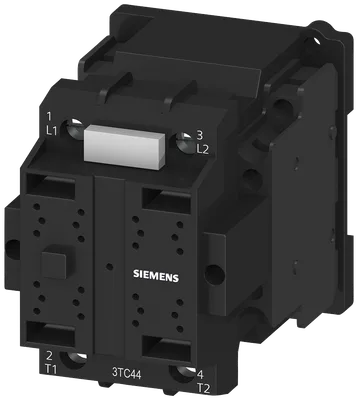

Siemens 3TC4417-0BU0

contactor, DC-3/DC-5, 32 A, 2-pole, 240 V AC, 50 Hz / 288 V AC, 60 Hz, auxiliary contacts: 2 NO + 2 NC, screw terminal, frame size 2

SiemensMFR # 3TC4417-0BU0SKU # CEY-8EF3B031DB4A

product designationContactor

product type designation3TC

size of contactor2

function module for communicationNo

auxiliary switchYes

insulation voltage rated value800 V

Have questions?Chat on WhatsApp

About This Product

contactor, DC-3/DC-5, 32 A, 2-pole, 240 V AC, 50 Hz / 288 V AC, 60 Hz, auxiliary contacts: 2 NO + 2 NC, screw terminal, frame size 2

Siemens 3TC4417-0BU0

Genuine, certified Siemens product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

product designationContactor

product type designation3TC

General technical data

size of contactor2

function module for communicationNo

auxiliary switchYes

insulation voltage rated value800 V

maximum permissible voltage for protective separation between coil and main contacts according to EN 60947-1300 V

at AC7,5 g / 5 ms, 3,4 g / 10 ms

of contactor typical10 000 000

of the contactor with added auxiliary switch block typical10 000 000

reference code according to IEC 81346-2Q

Substance Prohibitance (day/month/year)02/01/2012

SVHC substance nameLead CAS-No. 7439-92-1 6,6'-di-tert-butyl-2,2'-methylenedi-p-cresol CAS-No. 119-47-1

Net Weight660 g

Ambient conditions

during operation-25 ... +55 °C

during storage-50 ... +80 °C

relative humidity minimum10 %

relative humidity at 55 °C according to IEC 60068-2-30 maximum95 %

Main circuit

number of poles2

number of poles for main current circuit2

number of NO contacts for main contacts2

number of NC contacts for main contacts0

type of voltageDC

— at 24 V rated value32 A

— at 110 V rated value32 A

— at 220 V rated value32 A

— at 24 V rated value32 A

— at 110 V rated value32 A

— at 220 V rated value32 A

— at 440 V rated value32 A

— at 600 V rated value32 A

— at 750 V rated value32 A

— at 220 V rated value32 A

— at 600 V rated value21 A

— at 750 V rated value7.5 A

— at 24 V rated value32 A

— at 110 V rated value32 A

— at 220 V rated value32 A

— at 24 V rated value32 A

— at 110 V rated value32 A

— at 220 V rated value32 A

— at 440 V rated value29 A

— at 600 V rated value21 A

— at 750 V rated value7.5 A

— at 110 V rated value3.5 kW

— at 220 V rated value7 kW

— at 440 V rated value14 kW

— at 750 V rated value24 kW

— at 110 V rated value2.5 kW

— at 220 V rated value5 kW

— at 440 V rated value9 kW

— at 600 V rated value9 kW

— at 750 V rated value4 kW

at DC-1 maximum1 500 1/h

at DC-3 maximum750 1/h

at DC-5 maximum750 1/h

Control circuit/ Control

type of voltage of the control supply voltageAC

at 50 Hz rated value240 V

at 60 Hz rated value288 V

at 50 Hz0.8 ... 1.1

apparent pick-up power of magnet coil at AC68 V·A

at 50 Hz68 V·A

at 60 Hz95 V·A

inductive power factor with closing power of the coil0.86

at 50 Hz0.86

at 60 Hz0.79

apparent holding power of magnet coil at AC10 V·A

at 50 Hz10 V·A

at 60 Hz12 V·A

inductive power factor with the holding power of the coil0.29

at 50 Hz0.29

at 60 Hz0.3

arcing time20 ... 30 ms

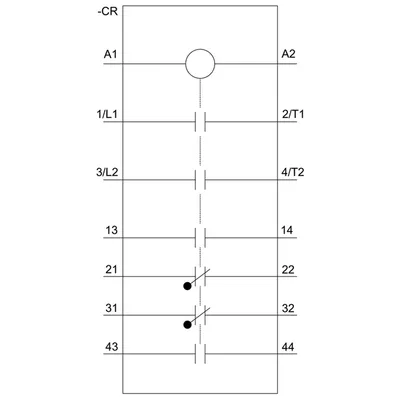

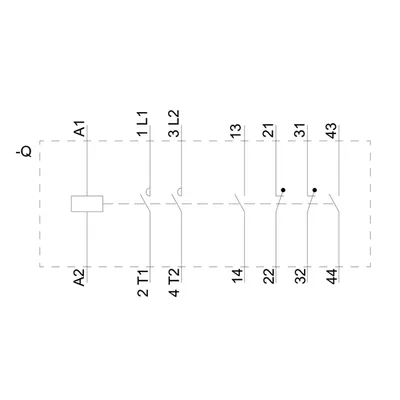

Auxiliary circuit

number of NC contacts for auxiliary contacts2

instantaneous contact2

number of NO contacts for auxiliary contacts2

instantaneous contact2

number of CO contacts for auxiliary contacts0

identification number and letter for switching elements22

operational current at AC-12 maximum10 A

at 230 V rated value5.6 A

at 400 V rated value3.6 A

at 500 V rated value2.5 A

at 24 V rated value10 A

at 48 V rated value10 A

at 60 V rated value10 A

at 110 V rated value3.2 A

at 125 V rated value2.5 A

at 220 V rated value0.9 A

at 600 V rated value0.22 A

at 24 V rated value10 A

at 48 V rated value5 A

at 60 V rated value5 A

at 110 V rated value1.14 A

at 125 V rated value0.98 A

at 220 V rated value0.48 A

at 600 V rated value0.07 A

UL/CSA ratings

contact rating of auxiliary contacts according to ULA600 / P600

Short-circuit protection

— with type of coordination 1 required2 x 3NA3020 (50 A) in series (750 V, 3 kA)

— with type of coordination 2 required2 x 3NA3020 (50 A) in series (750 V, 3 kA)

for short-circuit protection of the auxiliary switch requiredgG: 16 A (500 V, 1 kA)

Installation/ mounting/ dimensions

mounting position+/-22,5° rotation possible on vertical mounting surface; can be tilted forward and backward by +/- 22.5° on vertical mounting surface

fastening method side-by-side mountingYes

fastening methodscrew and snap-on mounting onto 35 mm DIN rail according to DIN EN 50022

height85 mm

width70 mm

depth104 mm

— forwards15 mm

— backwards0 mm

— upwards10 mm

— downwards10 mm

— at the side10 mm

— forwards30 mm

— backwards0 mm

— upwards10 mm

— at the side10 mm

— downwards10 mm

— forwards30 mm

— backwards0 mm

— upwards10 mm

— downwards10 mm

— at the side10 mm

Connections/ Terminals

type of electrical connectionscrew terminal

for main current circuitscrew-type terminals

for auxiliary and control circuitscrew-type terminals

solid or stranded2x (2,5 ... 10 mm²)

finely stranded with core end processing2x (1.5 ... 4 mm²)

— solid or stranded2x (1 ... 2.5 mm²)

— finely stranded with core end processing2x (0.75 ... 1.5 mm²)

Safety related data

product function mirror contact according to IEC 60947-4-1Yes; One NC contact each must be connected in series for the right and left auxiliary switch block respectively

Electrical Safety

protection class IP on the front according to IEC 60529IP00
