How can I get a price quote for Siemens 3SU1854-0AA00-0AB1?

You can request a fast quote for Siemens 3SU1854-0AA00-0AB1 from Yılsa Engineering. Reference part number CEY-8EF3B0325D0D. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Siemens 3SU1854-0AA00-0AB1 in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Siemens 3SU1854-0AA00-0AB1 genuine and new?

Yes. This Siemens product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Siemens 3SU1854-0AA00-0AB1?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

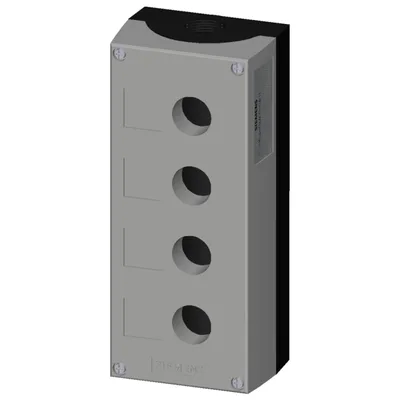

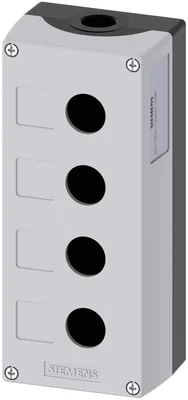

Siemens 3SU1854-0AA00-0AB1

Enclosure for command devices, 22 mm, round, Enclosure material metal, enclosure top part gray, 4 control points, without equipment, Recess for labels, floor mounting, 1xM25 each on top and bottom

SiemensMFR # 3SU1854-0AA00-0AB1SKU # CEY-8EF3B0325D0D

product brand nameSIRIUS ACT

product designationEnclosures

product type designation3SU1

design of the housingwith recess for label

shape of the enclosure frontrectangular

material of the enclosuremetal

Have questions?Chat on WhatsApp

About This Product

Enclosure for command devices, 22 mm, round, Enclosure material metal, enclosure top part gray, 4 control points, without equipment, Recess for labels, floor mounting, 1xM25 each on top and bottom

Siemens 3SU1854-0AA00-0AB1

Genuine, certified Siemens product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

product brand nameSIRIUS ACT

product designationEnclosures

product type designation3SU1

Enclosure

design of the housingwith recess for label

shape of the enclosure frontrectangular

material of the enclosuremetal

number of command points4

product component protective collarNo

color of the enclosure top partgrey

fastening method of the enclosureVertical / horizontal

General technical data

protection class IPIP66, IP67, IP69(IP69K)

degree of protection NEMA rating1, 2, 3, 3R, 4, 4X, 12, 13

shock resistance for railway applications according to EN 61373Category 1, Class B

vibration resistance for railway applications according to EN 61373Category 1, Class B

Substance Prohibitance (day/month/year)10/01/2014

SVHC substance nameLead CAS-No. 7439-92-1

Net Weight811.5 g

cable entry typeWithout

Connections/ Terminals

type of electrical connection on enclosureCable routing above and below, both 1 x M25

tightening torque of fixing screws in the enclosure cover1.5 ... 1.7 N·m

Ambient conditions

during operation-25 ... +70 °C

during storage-40 ... +80 °C

environmental category during operation according to IEC 607213M6, 3S2, 3B2, 3C3, 3K6 (with relative air humidity of 10 ... 95%, no condensation in operation permitted for all devices behind front panel)

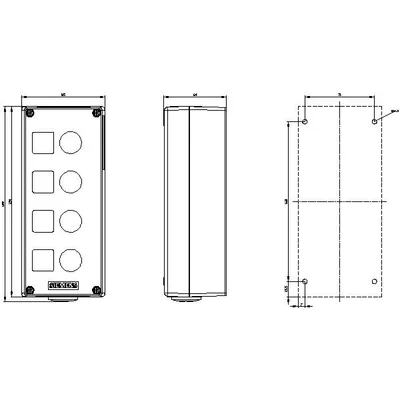

Installation/ mounting/ dimensions

fastening method of modules and accessoriesFloor mounting

height199 mm

width85 mm

depth64 mm

mounting diameter22.3 mm

positive tolerance of installation diameter0.4 mm

Approvals Certificates

global warming potential [CO2 eq] / during manufacturing0.625 kg

global warming potential [CO2 eq] / during operation0.235 kg

global warming potential [CO2 eq] / after end of life-0.267 kg

global warming potential [CO2 eq] / total0.593 kg

Accessories 4

Genuine accessories that can be used with the Siemens 3SU1854-0AA00-0AB1 motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.

Part no	Description	Compatible motors
3SU1900-0AF81-0AA0	Aksesuar · Commanding and signaling devices
3SU1900-0AF16-0AA0	Aksesuar · Commanding and signaling devices
3SU1900-0JQ10-0AA0	Aksesuar · Commanding and signaling devices
3SU1900-0HH10-0AA0	Seçmeli zorunlu ürün · Commanding and signaling devices
