How can I get a price quote for Siemens 3SU1851-0NB10-4GC2?

You can request a fast quote for Siemens 3SU1851-0NB10-4GC2 from Yılsa Engineering. Reference part number YLSIA5G2TIGTZAL. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Siemens 3SU1851-0NB10-4GC2 in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Siemens 3SU1851-0NB10-4GC2 genuine and new?

Yes. This Siemens product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Siemens 3SU1851-0NB10-4GC2?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

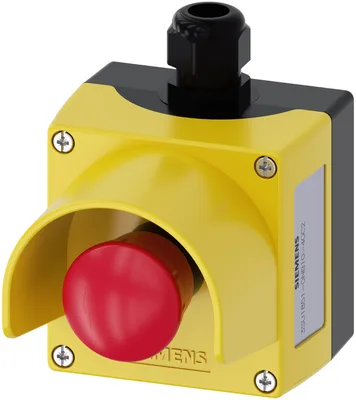

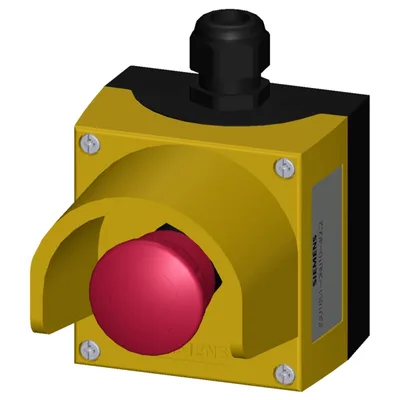

Siemens 3SU1851-0NB10-4GC2

AS-Interface enclosure for command devices 22 mm, round, Enclosure material metal, Enclosure top part yellow, with protective collar, 1 control point metal, A=EMERGENCY STOP mushroom pushbutton red, 40 mm, rotate-to-unlatch, 1 NC, 1 NC, spring-type terminal, floor mounting, AS-i shaped cable Direct entry top/right

SiemensMFR # 3SU1851-0NB10-4GC2SKU # YLSIA5G2TIGTZAL

product brand nameSIRIUS ACT

product designationEnclosures

product type designation3SU1

of supplied empty enclosure3SU1851-0AA00-0AC2

design of the housingwith protective collar

shape of the enclosure frontSquare

Have questions?Chat on WhatsApp

About This Product

Siemens 3SU1851-0NB10-4GC2

Genuine, certified Siemens product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

product brand nameSIRIUS ACT

product designationEnclosures

product type designation3SU1

equipment of commanding and signaling deviceA = EMERGENCY STOP mushroom pushbutton, 40 mm, with positive latching acc. to ISO 13850 and rotate-to-unlatch mechanism

of supplied contact module at the command point A 13SU1400-2AA10-3CA0

of supplied contact module at the command point A 23SU1400-2AA10-3CA0

of the supplied holder at the command point A3SU1550-0AA10-0AA0

of the supplied actuator at the command point A3SU1050-1HB20-0AA0

of supplied empty enclosure3SU1851-0AA00-0AC2

Enclosure

design of the housingwith protective collar

shape of the enclosure frontSquare

material of the enclosuremetal

number of command points1

EMERGENCY STOP deviceYes

protective collarNo

color of the enclosure top partyellow

as a kitNo

pre-wired on strip terminalNo

fastening method of the enclosureVertical

Actuator

design of the actuating elementEMERGENCY STOP mushroom pushbutton

suitability for use EMERGENCY OFF switchYes

product feature lockoutNo

product extension optional light sourceNo

color of the actuating elementred

material of the actuating elementplastic

shape of the actuating elementround

number of contact modules2

type of unlocking deviceA = rotate-to-unlatch mechanism

Front ring

product component front ringNo

design of the front ringStandard

Holder

material of the holderPlastic

Display

number of LED modules0

General technical data

positive openingYes

EMERGENCY OFF functionYes

EMERGENCY STOP functionYes

protection class IPIP66, IP67, IP69(IP69K)

degree of protection NEMA rating1, 2, 3, 3R, 4, 4X, 12, 13

according to IEC 60068-2-27sinusoidal half-wave 15 g / 11 ms

according to IEC 60068-2-610 ... 500 Hz: 5 g

reference code according to IEC 81346-2S

continuous current of the C characteristic MCB10 A; for a short-circuit current smaller than 400 A

continuous current of the quick DIAZED fuse link10 A

continuous current of the DIAZED fuse link gG10 A

Substance Prohibitance (day/month/year)10/01/2014

SVHC substance nameLead CAS-No. 7439-92-1 Lead monoxide (lead oxide) CAS-No. 1317-36-8 2-methyl-1-(4-methylthiophenyl)-2-morpholinopropan-1-one CAS-No. 71868-10-5 Melamine CAS-No. 108-78-1 Diboron trioxide CAS-No. 1303-86-2

Net Weight699.38 g

— at 50 Hz rated value5 ... 500 V

— at 60 Hz rated value5 ... 500 V

at DC rated value5 ... 500 V

cable entry typeAdapter ASI shaped cable (insulation displacement method) M20 cable entry

Communication/ Protocol

design of the interface for communicationAS-i

Auxiliary circuit

design of the contact of auxiliary contactsSilver alloy

number of NC contacts for auxiliary contacts2

number of NO contacts for auxiliary contacts0

Connections/ Terminals

type of electrical connection of modules and accessoriesSpring-type terminal

type of electrical connection on enclosureAdapter ASI shaped cable (insulation displacement method)

tightening torque of the screws in the bracket1 ... 1.2 N·m

tightening torque of fixing screws in the enclosure cover1.5 ... 1.7 N·m

Ambient conditions

during operation-25 ... +70 °C

during storage-40 ... +80 °C

environmental category during operation according to IEC 607213M6, 3S2, 3B2, 3C3, 3K6 (with relative air humidity of 10 ... 95%, no condensation in operation permitted for all devices behind front panel)

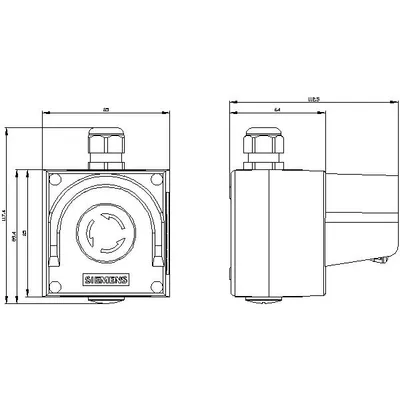

Installation/ mounting/ dimensions

fastening method of modules and accessoriesFloor mounting

height105.4 mm

width85 mm

depth112.5 mm

shape of the installation openinground

Accessories

number of labels1

marking of the name plate for command devicesA = I

number of inscription plates0

Approvals Certificates

global warming potential [CO2 eq] / during manufacturing0.625 kg

global warming potential [CO2 eq] / during operation0.235 kg

global warming potential [CO2 eq] / after end of life-0.267 kg

global warming potential [CO2 eq] / total0.593 kg

Product information

EAN4011209970373

UPC804766818042

Product familyPushbuttons and indicator lights in the enclosure for AS-Interface

Life cycle statusActive

Commodity code85365080

Delivery and logistics

Country of originGermany

Standard delivery time5 Day/Days

ReturnableYes

Net weight0.69938 Kg

Packaging dimensions (L x W x H)130 x 95 x 129 MM

Standard package quantity1 Piece

Minimum order quantity1

Dangerous goodsNo

Export control regulationsAL : N / ECCN : N

Environment and compliance

RoHS conformitySince: 01-10-14

WEEE category5

REACH informationLead CAS-No. 7439-92-1 > 0,1 % (w / w)

SCIP number106a2730-1a17-460a-83b0-84acd024d7eb

Siemens catalog

Product group5454

Catalog IDCC-IC10

Group codeR711

Product classStraightforward, can be reused over the short term
