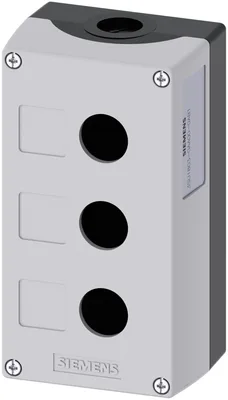

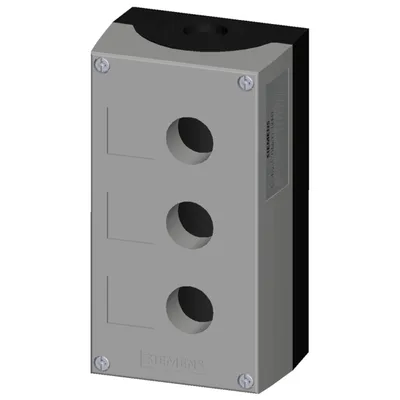

Siemens 3SU1803-0AA00-0AB1

Enclosure for command devices, 22 mm, round, Enclosure material plastic, enclosure top part gray, 3 control points plastic, Recess for labels, without equipment

SiemensMFR # 3SU1803-0AA00-0AB1SKU # CEY-8EF3B032612A

product brand nameSIRIUS ACT

product designationEnclosures

product type designation3SU1

design of the housingwith recess for label

shape of the enclosure frontrectangular

material of the enclosureplastic

Have questions?Chat on WhatsApp

About This Product

Enclosure for command devices, 22 mm, round, Enclosure material plastic, enclosure top part gray, 3 control points plastic, Recess for labels, without equipment

Siemens 3SU1803-0AA00-0AB1

Genuine, certified Siemens product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

product brand nameSIRIUS ACT

product designationEnclosures

product type designation3SU1

Enclosure

design of the housingwith recess for label

shape of the enclosure frontrectangular

material of the enclosureplastic

number of command points3

product component protective collarNo

color of the enclosure top partgrey

fastening method of the enclosureVertical / horizontal

General technical data

protection class IPIP66, IP67, IP69(IP69K)

degree of protection NEMA rating1, 2, 3, 3R, 4, 4X, 12, 13

shock resistance for railway applications according to EN 61373Category 1, Class B

vibration resistance for railway applications according to EN 61373Category 1, Class B

Substance Prohibitance (day/month/year)10/01/2014

Net Weight373.88 g

cable entry typeWithout

Connections/ Terminals

type of electrical connection on enclosureCable routing above and below, both 1 x M20

tightening torque of fixing screws in the enclosure cover1.5 ... 1.7 N·m

Ambient conditions

during operation-25 ... +70 °C

during storage-40 ... +80 °C

environmental category during operation according to IEC 607213M6, 3S2, 3B2, 3C3, 3K6 (with relative air humidity of 10 ... 95%, no condensation in operation permitted for all devices behind front panel)

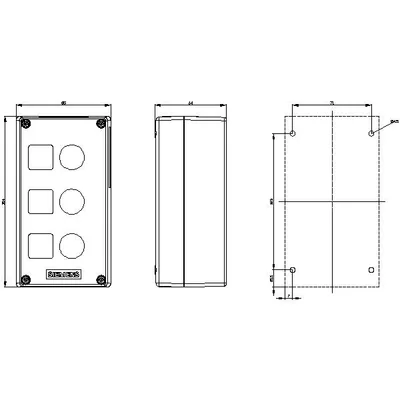

Installation/ mounting/ dimensions

fastening method of modules and accessoriesFloor mounting

height154 mm

width85 mm

depth64 mm

mounting diameter22.3 mm

positive tolerance of installation diameter0.4 mm

Approvals Certificates

global warming potential [CO2 eq] / during manufacturing0.566 kg

global warming potential [CO2 eq] / during operation0.235 kg

global warming potential [CO2 eq] / after end of life-0.0145 kg

global warming potential [CO2 eq] / total0.787 kg

Accessories 4

Genuine accessories that can be used with the Siemens 3SU1803-0AA00-0AB1 motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.

Part no	Description	Compatible motors
3SU1900-0AF81-0AA0	Aksesuar · Commanding and signaling devices
3SU1900-0JQ10-0AA0	Aksesuar · Commanding and signaling devices
3SU1900-0AF16-0AA0	Aksesuar · Commanding and signaling devices
3SU1900-0HG10-0AA0	Seçmeli zorunlu ürün · Commanding and signaling devices
