How can I get a price quote for Siemens 3SU1802-0AC00-2AB1?

You can request a fast quote for Siemens 3SU1802-0AC00-2AB1 from Yılsa Engineering. Reference part number CEY-8EF3B02ECB6E. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Siemens 3SU1802-0AC00-2AB1 in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Siemens 3SU1802-0AC00-2AB1 genuine and new?

Yes. This Siemens product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Siemens 3SU1802-0AC00-2AB1?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

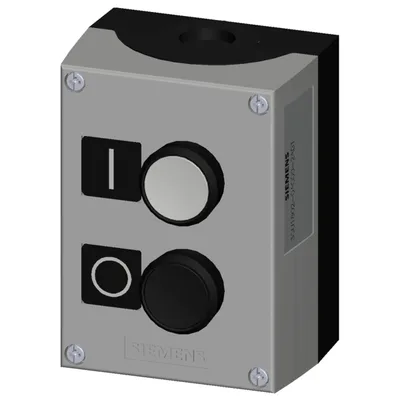

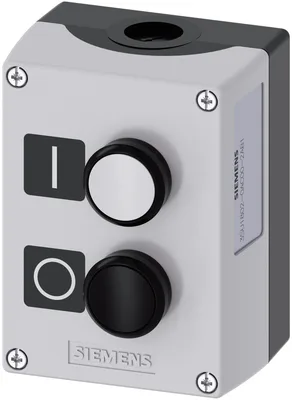

Siemens 3SU1802-0AC00-2AB1

Enclosure for command devices, 22 mm, round, Enclosure material plastic, enclosure top part gray, 2 control points plastic, Recess for labels, B=Pushbutton white, label: I, 1 NO, screw terminal, A=Pushbutton black label: O 1 NC, screw terminal, floor mounting, Labels enclosed

SiemensMFR # 3SU1802-0AC00-2AB1SKU # CEY-8EF3B02ECB6E

product brand nameSIRIUS ACT

product designationEnclosures

product type designation3SU1

of supplied empty enclosure3SU1802-0AA00-0AB1

design of the housingwith recess for label

shape of the enclosure frontrectangular

Have questions?Chat on WhatsApp

About This Product

Siemens 3SU1802-0AC00-2AB1

Genuine, certified Siemens product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

product brand nameSIRIUS ACT

product designationEnclosures

product type designation3SU1

equipment of commanding and signaling deviceA = Pushbutton / B = Pushbutton

of supplied contact module at the command point A 13SU1400-2AA10-1CA0

of supplied contact module at the command point B 23SU1400-2AA10-1BA0

of the supplied holder at the command point A3SU1500-0AA10-0AA0

of the supplied holder at the command point B3SU1500-0AA10-0AA0

of the supplied actuator at the command point A3SU1000-0AB10-0AA0

of the supplied actuator at the command point B3SU1000-0AB60-0AA0

of supplied empty enclosure3SU1802-0AA00-0AB1

of the supplied accessories at the command point A3SU1900-0AF16-0QA0

of the supplied accessories at the command point B3SU1900-0AF16-0QB0

Enclosure

design of the housingwith recess for label

shape of the enclosure frontrectangular

material of the enclosureplastic

number of command points2

EMERGENCY STOP deviceNo

protective collarNo

color of the enclosure top partgrey

as a kitNo

pre-wired on strip terminalNo

fastening method of the enclosureVertical

Actuator

design of the actuating elementPushbutton / pushbutton

suitability for use EMERGENCY OFF switchNo

product feature lockoutNo

product extension optional light sourceNo

color of the actuating elementA = black / B = white

material of the actuating elementplastic

shape of the actuating elementround

number of contact modules2

type of unlocking deviceA = none / B = none

Front ring

product component front ringYes

design of the front ringStandard

material of the front ringplastic

color of the front ringblack

Holder

material of the holderPlastic

Display

number of LED modules0

General technical data

positive openingYes

EMERGENCY OFF functionNo

EMERGENCY STOP functionNo

protection class IPIP66, IP67, IP69(IP69K)

degree of protection NEMA rating1, 2, 3, 3R, 4, 4X, 12K, 13

according to IEC 60068-2-27sinusoidal half-wave 15 g / 11 ms

for railway applications according to EN 61373Category 1, Class B

according to IEC 60068-2-610 ... 500 Hz: 5 g

for railway applications according to EN 61373Category 1, Class B

reference code according to IEC 81346-2S

continuous current of the C characteristic MCB10 A; for a short-circuit current smaller than 400 A

continuous current of the quick DIAZED fuse link10 A

continuous current of the DIAZED fuse link gG10 A

Substance Prohibitance (day/month/year)10/01/2014

Net Weight340.38 g

— at 50 Hz rated value5 ... 500 V

— at 60 Hz rated value5 ... 500 V

at DC rated value5 ... 500 V

Communication/ Protocol

design of the interface for communicationwithout

Auxiliary circuit

design of the contact of auxiliary contactsSilver alloy

number of NC contacts for auxiliary contacts1

number of NO contacts for auxiliary contacts1

Connections/ Terminals

type of electrical connection of modules and accessoriesScrew-type terminal

type of electrical connection on enclosureCable routing above and below, both 1 x M20

tightening torque of the screws in the bracket1 ... 1.2 N·m

tightening torque of fixing screws in the enclosure cover1.5 ... 1.7 N·m

tightening torque with screw-type terminals0.8 ... 0.9 N·m

Ambient conditions

during operation-25 ... +70 °C

during storage-40 ... +80 °C

environmental category during operation according to IEC 607213M6, 3S2, 3B2, 3C3, 3K6 (with relative air humidity of 10 ... 95%, no condensation in operation permitted for all devices behind front panel)

Installation/ mounting/ dimensions

fastening method of modules and accessoriesFloor mounting

height114 mm

width85 mm

depth75 mm

shape of the installation openinground

Accessories

number of labels2

marking of the name plate for command devicesA = O / B = I

color of the labelA = black / B = black

number of inscription plates0

Approvals Certificates

global warming potential [CO2 eq] / during manufacturing0.566 kg

global warming potential [CO2 eq] / during operation0.235 kg

global warming potential [CO2 eq] / after end of life-0.0145 kg

global warming potential [CO2 eq] / total0.787 kg

Accessories 10

Genuine accessories that can be used with the Siemens 3SU1802-0AC00-2AB1 motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.

Part no	Description	Compatible motors
3SU1900-0JQ10-0AA0	Aksesuar · Commanding and signaling devices
3SU1400-2AA10-1BA0	Bileşen · Commanding and signaling devices
3SU1400-2AA10-1CA0	Bileşen · Commanding and signaling devices
3SU1500-0AA10-0AA0	Bileşen · Commanding and signaling devices
3SU1000-0AB10-0AA0	Bileşen · Commanding and signaling devices
3SU1000-0AB60-0AA0	Bileşen · Commanding and signaling devices
3SU1802-0AA00-0AB1	Bileşen · Commanding and signaling devices
3SU1900-0AF16-0QA0	Bileşen · Commanding and signaling devices
3SU1900-0AF16-0QB0	Bileşen · Commanding and signaling devices
3SU1900-0HG10-0AA0	Seçmeli zorunlu ürün · Commanding and signaling devices
