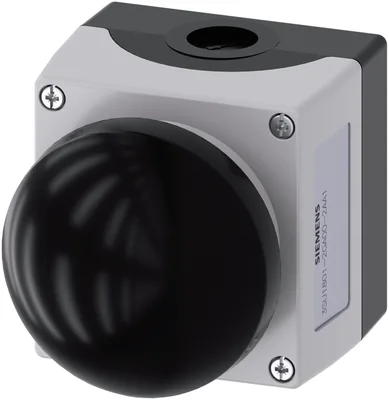

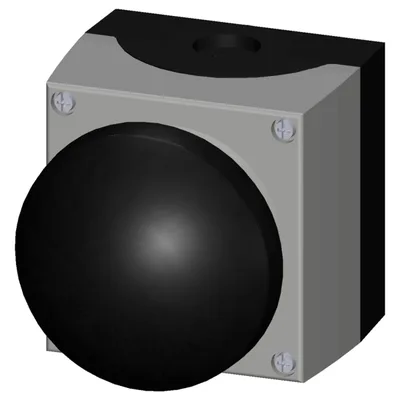

Siemens 3SU1801-2GA00-2AA1

Enclosure for command devices, 22 mm, round, Enclosure material plastic, enclosure top part gray, 1 control point plastic, Control point in center, A=palm pushbutton black, momentary contact type, 1 NO, screw terminal, Floor mounting

SiemensMFR # 3SU1801-2GA00-2AA1SKU # CEY-8EF3B02D01F3

product brand nameSIRIUS ACT

product designationEnclosures

product type designation3SU1

design of the housingCommand point in center

shape of the enclosure frontSquare

material of the enclosureplastic

Have questions?Chat on WhatsApp

About This Product

Siemens 3SU1801-2GA00-2AA1

Genuine, certified Siemens product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

product brand nameSIRIUS ACT

product designationEnclosures

product type designation3SU1

equipment of commanding and signaling deviceA = Palm switch, momentary-contact type

of supplied contact module at the command point A 23SU1400-2AA10-1BA0

of the supplied holder at the command point A3SU1500-0AA10-0AA0

Enclosure

design of the housingCommand point in center

shape of the enclosure frontSquare

material of the enclosureplastic

number of command points1

EMERGENCY STOP deviceNo

protective collarNo

color of the enclosure top partgrey

as a kitNo

pre-wired on strip terminalNo

fastening method of the enclosureVertical

Actuator

design of the actuating elementPalm switch

suitability for use EMERGENCY OFF switchNo

product feature lockoutNo

product extension optional light sourceNo

color of the actuating elementblack

material of the actuating elementplastic

shape of the actuating elementround

number of contact modules1

type of unlocking deviceA = without

Front ring

product component front ringNo

design of the front ringStandard

material of the front ringplastic

color of the front ringblack

Holder

material of the holderPlastic

Display

number of LED modules0

General technical data

positive openingNo

EMERGENCY OFF functionNo

EMERGENCY STOP functionNo

protection class IPIP66, IP67, IP69(IP69K)

degree of protection NEMA rating1, 2, 3, 3R, 4, 4X, 12K, 13

according to IEC 60068-2-27sinusoidal half-wave 15 g / 11 ms

for railway applications according to EN 61373Category 1, Class B

according to IEC 60068-2-610 ... 500 Hz: 5 g

for railway applications according to EN 61373Category 1, Class B

reference code according to IEC 81346-2S

continuous current of the C characteristic MCB10 A; for a short-circuit current smaller than 400 A

continuous current of the quick DIAZED fuse link10 A

continuous current of the DIAZED fuse link gG10 A

Substance Prohibitance (day/month/year)10/01/2014

Net Weight336.38 g

— at 50 Hz rated value5 ... 500 V

— at 60 Hz rated value5 ... 500 V

at DC rated value5 ... 500 V

Communication/ Protocol

design of the interface for communicationwithout

Auxiliary circuit

design of the contact of auxiliary contactsSilver alloy

number of NC contacts for auxiliary contacts0

number of NO contacts for auxiliary contacts1

Connections/ Terminals

type of electrical connection of modules and accessoriesScrew-type terminal

type of electrical connection on enclosureCable routing above and below, both 1 x M20

tightening torque of the screws in the bracket1 ... 1.2 N·m

tightening torque of fixing screws in the enclosure cover1.5 ... 1.7 N·m

tightening torque with screw-type terminals0.8 ... 0.9 N·m

Ambient conditions

during operation-25 ... +70 °C

during storage-40 ... +80 °C

environmental category during operation according to IEC 607213M6, 3S2, 3B2, 3C3, 3K6 (with relative air humidity of 10 ... 95%, no condensation in operation permitted for all devices behind front panel)

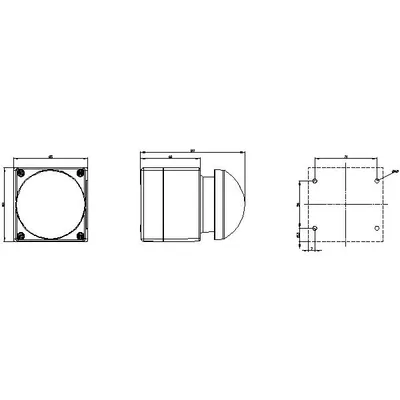

Installation/ mounting/ dimensions

fastening method of modules and accessoriesFloor mounting

height85 mm

width85 mm

depth119 mm

shape of the installation openinground

Accessories

number of labels1

marking of the name plate for command devicesA = I

color of the labelA = black

number of inscription plates0

Approvals Certificates

global warming potential [CO2 eq] / during manufacturing0.566 kg

global warming potential [CO2 eq] / during operation0.235 kg

global warming potential [CO2 eq] / after end of life-0.0145 kg

global warming potential [CO2 eq] / total0.787 kg
