How can I get a price quote for Siemens 3SU1801-0AA00-0AB2?

You can request a fast quote for Siemens 3SU1801-0AA00-0AB2 from Yılsa Engineering. Reference part number CEY-8EF3B02EC8B4. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Siemens 3SU1801-0AA00-0AB2 in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Siemens 3SU1801-0AA00-0AB2 genuine and new?

Yes. This Siemens product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Siemens 3SU1801-0AA00-0AB2?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

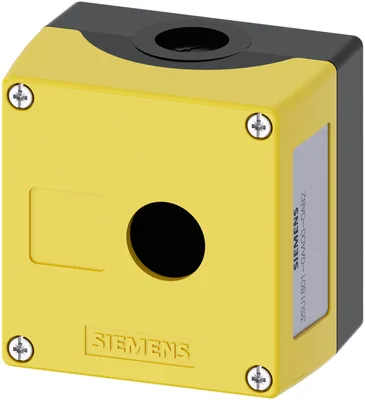

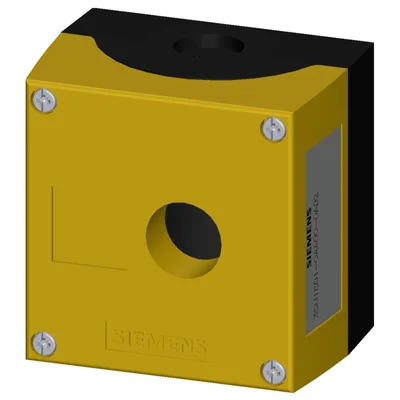

Siemens 3SU1801-0AA00-0AB2

Enclosure for command devices, 22 mm, round, Enclosure material plastic, Enclosure top part yellow, 1 control point plastic, Recess for label, without equipment

SiemensMFR # 3SU1801-0AA00-0AB2SKU # CEY-8EF3B02EC8B4

product brand nameSIRIUS ACT

product designationEnclosures

product type designation3SU1

design of the housingwith recess for label

shape of the enclosure frontSquare

material of the enclosureplastic

Have questions?Chat on WhatsApp

About This Product

Enclosure for command devices, 22 mm, round, Enclosure material plastic, Enclosure top part yellow, 1 control point plastic, Recess for label, without equipment

Siemens 3SU1801-0AA00-0AB2

Genuine, certified Siemens product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

product brand nameSIRIUS ACT

product designationEnclosures

product type designation3SU1

Enclosure

design of the housingwith recess for label

shape of the enclosure frontSquare

material of the enclosureplastic

number of command points1

product component protective collarNo

color of the enclosure top partyellow

fastening method of the enclosureVertical / horizontal

General technical data

protection class IPIP66, IP67, IP69(IP69K)

degree of protection NEMA rating1, 2, 3, 3R, 4, 4X, 12, 13

shock resistance for railway applications according to EN 61373Category 1, Class B

vibration resistance for railway applications according to EN 61373Category 1, Class B

Substance Prohibitance (day/month/year)10/01/2014

Net Weight206.38 g

cable entry typeMetric cable glands 1 x M20 each on the top, bottom and rear, 1 x M16 on the side

Connections/ Terminals

type of electrical connection on enclosureCable routing 1 x M20 each on the top, bottom and rear, 1 x M16 on the side

tightening torque of fixing screws in the enclosure cover1.5 ... 1.7 N·m

Ambient conditions

during operation-25 ... +70 °C

during storage-40 ... +80 °C

environmental category during operation according to IEC 607213M6, 3S2, 3B2, 3C3, 3K6 (with relative air humidity of 10 ... 95%, no condensation in operation permitted for all devices behind front panel)

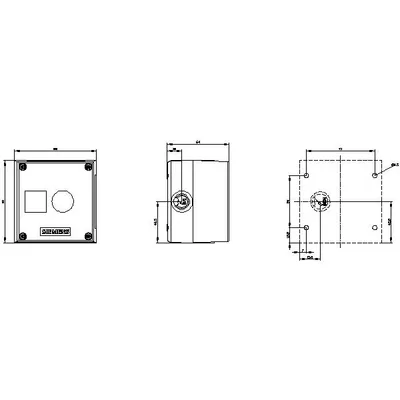

Installation/ mounting/ dimensions

fastening method of modules and accessoriesFloor mounting

height85 mm

width85 mm

depth64 mm

mounting diameter22.3 mm

positive tolerance of installation diameter0.4 mm

Approvals Certificates

global warming potential [CO2 eq] / during manufacturing0.566 kg

global warming potential [CO2 eq] / during operation0.235 kg

global warming potential [CO2 eq] / after end of life-0.0145 kg

global warming potential [CO2 eq] / total0.787 kg

Accessories 4

Genuine accessories that can be used with the Siemens 3SU1801-0AA00-0AB2 motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.

Part no	Description	Compatible motors
3SU1900-0AF81-0AA0	Aksesuar · Commanding and signaling devices
3SU1900-0AF16-0AA0	Aksesuar · Commanding and signaling devices
3SU1900-0JQ10-0AA0	Aksesuar · Commanding and signaling devices
3SU1900-0HG10-0AA0	Seçmeli zorunlu ürün · Commanding and signaling devices
