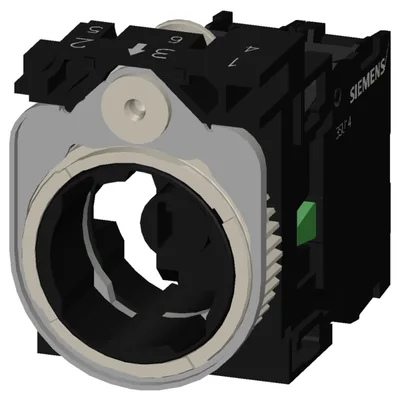

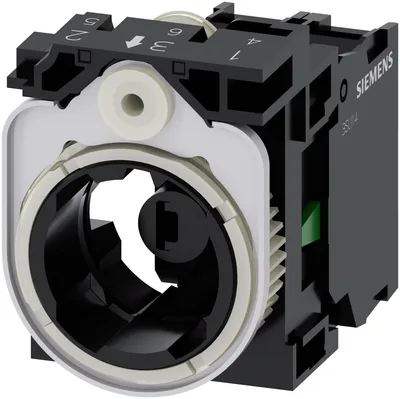

Siemens 3SU1501-1AG60-1BA0

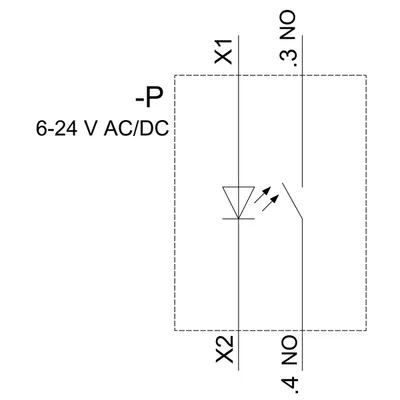

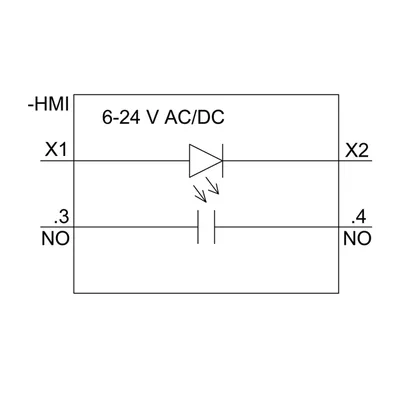

holder, 3-fold, plastic, 1 NO, LED module, white, 6-24 V AC/DC, screw terminal

SiemensMFR # 3SU1501-1AG60-1BA0SKU # CEY-8EF3B02EDA80

product brand nameSIRIUS ACT

product designationHolders

design of the productholder for plastic

product type designation3SU1

of supplied contact module3SU1400-1AA10-1BA0

of supplied contact module at position 13SU1400-1AA10-1BA0

Have questions?Chat on WhatsApp

About This Product

holder, 3-fold, plastic, 1 NO, LED module, white, 6-24 V AC/DC, screw terminal

Siemens 3SU1501-1AG60-1BA0

Genuine, certified Siemens product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

product brand nameSIRIUS ACT

product designationHolders

design of the productholder for plastic

product type designation3SU1

of supplied contact module3SU1400-1AA10-1BA0

of supplied contact module at position 13SU1400-1AA10-1BA0

of supplied LED module3SU1401-1BG60-1AA0

of the supplied holder3SU1500-0AA10-0AA0

Actuator

design of the actuating element3-way with module

number of modules attachable6

number of contact modules1

Holder

material of the holderPlastic

Display

number of LED modules1

General technical data

product function positive openingNo

diodeYes

lamp transformerNo

light sourceYes

series resistorNo

insulation voltage rated value320 V

degree of pollution3

surge voltage resistance rated value4 kV

protection class IP of the terminalIP20

according to IEC 60068-2-27sinusoidal half-wave 15 g / 11 ms

for railway applications according to EN 61373Category 1, Class B

according to IEC 60068-2-610 ... 500 Hz: 5 g

for railway applications according to EN 61373Category 1, Class B

operating frequency maximum3 600 1/h

mechanical service life (operating cycles) typical10 000 000

thermal current10 A

reference code according to IEC 81346-2U

continuous current of the C characteristic MCB10 A; for a short-circuit current smaller than 400 A

continuous current of the quick DIAZED fuse link10 A

continuous current of the DIAZED fuse link gG10 A

Substance Prohibitance (day/month/year)10/01/2014

SVHC substance nameMelamine CAS-No. 108-78-1

Net Weight39 g

— at 50 Hz rated value6 ... 24 V

— at 60 Hz rated value6 ... 24 V

at DC rated value6 ... 24 V

Power Electronics

contact reliabilityOne maloperation per 100 million (17 V, 5 mA), one maloperation per 10 million (5 V, 1 mA)

Control circuit/ Control

inrush current of LED module maximum2 A

Auxiliary circuit

design of the contact of auxiliary contactsSilver alloy

number of NC contacts for auxiliary contacts0

number of NO contacts for auxiliary contacts1

operational current at AC-15 at 230 V rated value6 A

Connections/ Terminals

of modules and accessoriesScrew-type terminal

solid with core end processing2x (0.5 ... 0.75 mm²)

solid without core end processing2x (1.0 ... 1.5 mm²)

finely stranded with core end processing2x (0.5 ... 1.5 mm²)

finely stranded without core end processing2x (1,0 ... 1,5 mm²)

for AWG cables2x (18 ... 14)

tightening torque of the screws in the bracket1 ... 1.2 N·m

with screw-type terminals0.8 ... 0.9 N·m

Lamp

type of light sourceLED

color of the light sourcewhite

light intensity900 ... 1 400 mcd

Ambient conditions

during operation-25 ... +70 °C

during storage-40 ... +80 °C

environmental category during operation according to IEC 607213M6, 3S2, 3B2, 3K6 (with relative air humidity of 10 ... 95%, no condensation in operation permitted)

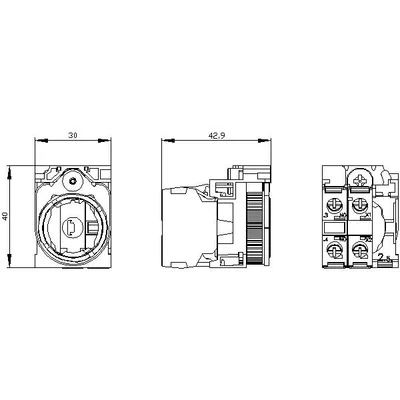

Installation/ mounting/ dimensions

fastening methodfront plate mounting

of modules and accessoriesFront plate mounting

height40 mm

width30 mm

shape of the installation openinground

mounting diameter22.5 mm

installation width30 mm

installation depth49.8 mm

thickness of the front plate usable1 ... 6 mm

Environmental footprint

Environmental Product Declaration(EPD)Yes

global warming potential [CO2 eq] total0.787 kg

global warming potential [CO2 eq] during manufacturing0.566 kg

global warming potential [CO2 eq] during operation0.235 kg

global warming potential [CO2 eq] after end of life-0.015 kg

Siemens eco profile (SEP)Siemens EcoTech

Approvals Certificates

global warming potential [CO2 eq] / during manufacturing0.566 kg

global warming potential [CO2 eq] / during operation0.235 kg

global warming potential [CO2 eq] / after end of life-0.0145 kg

global warming potential [CO2 eq] / total0.787 kg
