How can I get a price quote for Siemens 3SU1401-2BB20-3AA0?

You can request a fast quote for Siemens 3SU1401-2BB20-3AA0 from Yılsa Engineering. Reference part number CEY-8EF3B02EEA5D. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Siemens 3SU1401-2BB20-3AA0 in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Siemens 3SU1401-2BB20-3AA0 genuine and new?

Yes. This Siemens product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Siemens 3SU1401-2BB20-3AA0?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

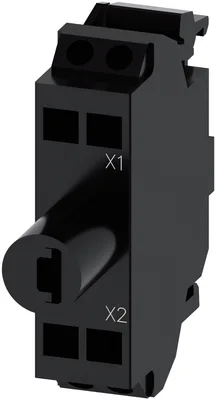

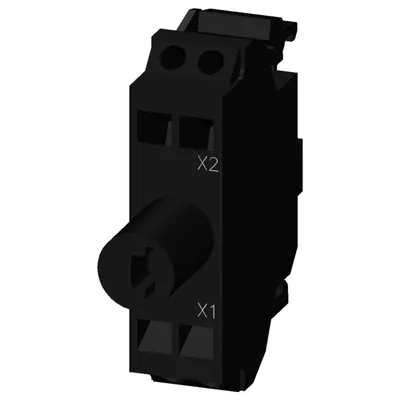

Siemens 3SU1401-2BB20-3AA0

LED module with integrated LED 24 V AC/DC, red, Spring-loaded terminal, for floor mounting, Minimum order quantity 5 or a multiple thereof

SiemensMFR # 3SU1401-2BB20-3AA0SKU # CEY-8EF3B02EEA5D

product brand nameSIRIUS ACT

product designationLED module

product type designation3SU1

diodeYes

lamp transformerNo

light sourceYes

Have questions?Chat on WhatsApp

About This Product

LED module with integrated LED 24 V AC/DC, red, Spring-loaded terminal, for floor mounting, Minimum order quantity 5 or a multiple thereof

Siemens 3SU1401-2BB20-3AA0

Genuine, certified Siemens product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

product brand nameSIRIUS ACT

product designationLED module

product type designation3SU1

General technical data

diodeYes

lamp transformerNo

light sourceYes

series resistorNo

insulation voltage rated value320 V

degree of pollution3

type of voltage of the operating voltageAC/DC

for actuationAC/DC

surge voltage resistance rated value4 kV

consumed current maximum25 mA

of the enclosureIP40

of the terminalIP20

according to IEC 60068-2-27sinusoidal half-wave 15 g / 11 ms

for railway applications according to EN 61373Category 1, Class B

according to IEC 60068-2-610 ... 500 Hz: 5 g

for railway applications according to EN 61373Category 1, Class B

operating period typical100 000 h

reference code according to IEC 81346-2P

Substance Prohibitance (day/month/year)10/01/2014

SVHC substance nameLead monoxide (lead oxide) CAS-No. 1317-36-8 2-methyl-1-(4-methylthiophenyl)-2-morpholinopropan-1-one CAS-No. 71868-10-5 Melamine CAS-No. 108-78-1

Net Weight7 g

— at 50 Hz rated value24 V

— at 60 Hz rated value24 V

at DC rated value24 V

relative positive tolerance of the operating voltage20 %

relative negative tolerance of the operating voltage20 %

Control circuit/ Control

inrush current maximum2 A

Connections/ Terminals

type of electrical connectionspring-loaded terminals

solid without core end processing2x (0.25 ... 1.5 mm²)

finely stranded with core end processing2x (0.25 ... 0.75 mm²)

finely stranded without core end processing2x (0.25 ... 1.5 mm²)

for AWG cables2x (24 ... 16)

connectable conductor cross-section finely stranded with core end processing0.25 ... 0.75 mm²

Lamp

type of light sourceLED

color of the light sourcered

light intensity450 ... 1 120 mcd

ATEX

ATEXNo

IECExNo

Ambient conditions

during operation-25 ... +70 °C

during storage-40 ... +80 °C

environmental category during operation according to IEC 607213M6, 3S2, 3B2, 3C3, 3K6 (with relative air humidity of 10 ... 95%, no condensation in operation permitted)

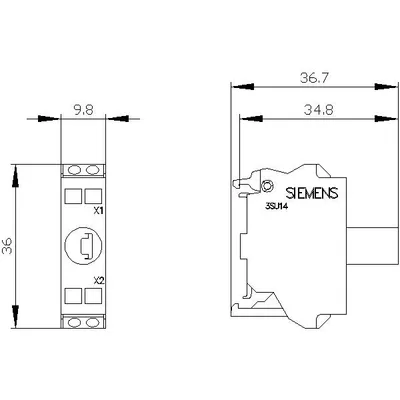

Installation/ mounting/ dimensions

of modules and accessoriesFloor mounting

height36 mm

width9.8 mm

depth29.4 mm

Environmental footprint

Environmental Product Declaration(EPD)Yes

global warming potential [CO2 eq] total0.787 kg

global warming potential [CO2 eq] during manufacturing0.566 kg

global warming potential [CO2 eq] during operation0.235 kg

global warming potential [CO2 eq] after end of life-0.015 kg

Approvals Certificates

global warming potential [CO2 eq] / during manufacturing0.566 kg

global warming potential [CO2 eq] / during operation0.235 kg

global warming potential [CO2 eq] / after end of life-0.0145 kg

global warming potential [CO2 eq] / total0.787 kg

Accessories 2

Genuine accessories that can be used with the Siemens 3SU1401-2BB20-3AA0 motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.

Part no	Description	Compatible motors
3SU1500-0AA10-0AA0	Seçmeli zorunlu ürün · Commanding and signaling devices
3SU1550-0AA10-0AA0	Seçmeli zorunlu ürün · Commanding and signaling devices
