How can I get a price quote for Siemens 3SU1401-1ME40-1DA1?

You can request a fast quote for Siemens 3SU1401-1ME40-1DA1 from Yılsa Engineering. Reference part number CEY-8EF3B02CD786. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Siemens 3SU1401-1ME40-1DA1 in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Siemens 3SU1401-1ME40-1DA1 genuine and new?

Yes. This Siemens product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Siemens 3SU1401-1ME40-1DA1?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

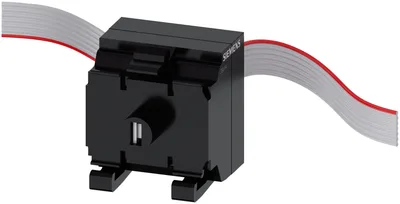

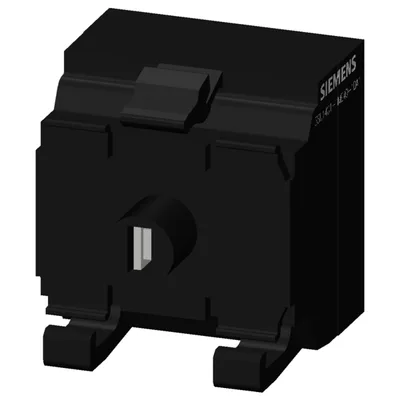

Siemens 3SU1401-1ME40-1DA1

SIRIUS ACT: terminal module (LED module), integrated LED green, for front plate mounting

SiemensMFR # 3SU1401-1ME40-1DA1SKU # CEY-8EF3B02CD786

product brand nameSIRIUS ACT

product designationTerminal module

design of the productwith integrated LED

product type designation3SU1

status Tx/Rx linkNo

reverse polarity protectionYes; Ribbon cable can be rotated 180°.

Have questions?Chat on WhatsApp

About This Product

SIRIUS ACT: terminal module (LED module), integrated LED green, for front plate mounting

Siemens 3SU1401-1ME40-1DA1

Genuine, certified Siemens product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

product brand nameSIRIUS ACT

product designationTerminal module

design of the productwith integrated LED

product type designation3SU1

Display

for diagnostic function: Supply voltage monitoring power LEDYes

status Tx/Rx linkNo

General technical data

reverse polarity protectionYes; Ribbon cable can be rotated 180°.

diagnostics functionYes

firmware version1.0.0

hardware version1

software version with STEP 7 in the TIA Portal requiredV13 SP1 (V13 SP1 and V14 with HSP0132)

power loss [W] typical0.115 W

degree of pollution3

of the operating voltageDC

of the input voltageDC

surge voltage resistance rated value0.8 kV

maximum27 mA

rated value23 mA

protection class IPIP20

according to IEC 60068-2-27sinusoidal half-wave 15 g / 11 ms

for railway applications according to EN 61373Category 1, Class B

according to IEC 60068-2-610 ... 500 Hz: 5 g

for railway applications according to EN 61373Category 1, Class B

reference code according to IEC 81346-2K

Substance Prohibitance (day/month/year)12/19/2016

SVHC substance name2-methyl-1-(4-methylthiophenyl)-2-morpholinopropan-1-one CAS-No. 71868-10-5 Melamine CAS-No. 108-78-1

Net Weight19 g

Communication/ Protocol

PROFIsafe protocolNo

Connections/ Terminals

type of electrical connectionInsulation displacement connection

type of connectable conductor cross-sectionsRibbon cable 7-pole, 7 x 0.08 mm2

solid or stranded0.08 mm²

finely stranded with core end processing maximum0.08 mm²

solid0.08 mm²

solid with core end processing0.08 mm²

finely stranded with core end processing0.08 mm²

finely stranded without core end processing0.08 mm²

AWG number as coded connectable conductor cross section28

Lamp

color of the light sourcegreen

Safety related data

product function suitable for safety functionNo

service life maximum20 a

Ambient conditions

during operation-25 ... +60 °C

during storage-40 ... +80 °C

environmental category during operation according to IEC 607213M6, 3S2, 3B2, 3K6 (with relative air humidity of 10 ... 95%, no condensation in operation permitted)

explosion protection marking for intrinsic safety of related equipment EEx iaNo

explosion protection marking for intrinsic safety of related equipment EEx ibNo

Installation/ mounting/ dimensions

fastening method of modules and accessoriesFront plate mounting

height32.6 mm

width30 mm

depth31.5 mm

Environmental footprint

Environmental Product Declaration(EPD)Yes

global warming potential [CO2 eq] total0.787 kg

global warming potential [CO2 eq] during manufacturing0.566 kg

global warming potential [CO2 eq] during operation0.235 kg

global warming potential [CO2 eq] after end of life-0.015 kg

Approvals Certificates

global warming potential [CO2 eq] / during manufacturing0.566 kg

global warming potential [CO2 eq] / during operation0.235 kg

global warming potential [CO2 eq] / after end of life-0.0145 kg

global warming potential [CO2 eq] / total0.787 kg

Accessories 2

Genuine accessories that can be used with the Siemens 3SU1401-1ME40-1DA1 motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.

Part no	Description	Compatible motors
3SU1500-0AA10-0AA0	Seçmeli zorunlu ürün · Commanding and signaling devices
3SU1550-0AA10-0AA0	Seçmeli zorunlu ürün · Commanding and signaling devices
