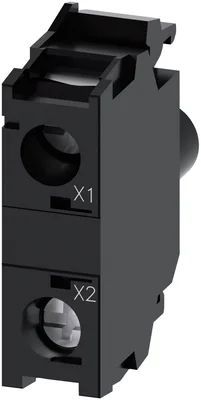

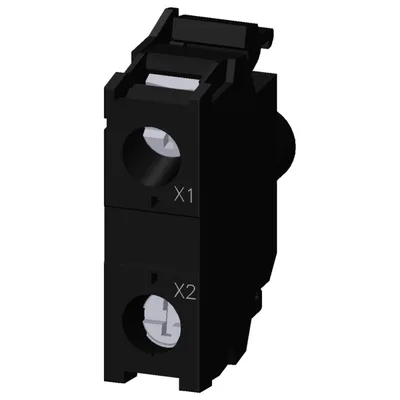

Siemens 3SU1401-1BF30-1AA0

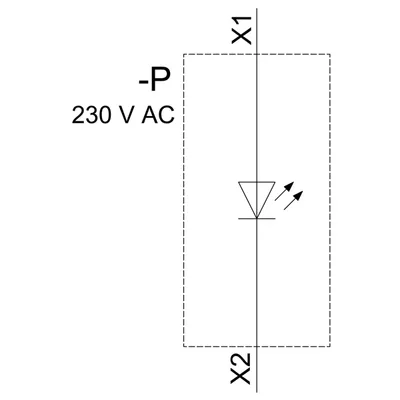

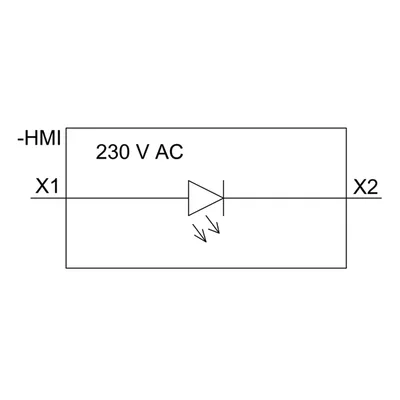

LED module with integrated LED 230 V AC, yellow, screw terminal, for front plate mounting

SiemensMFR # 3SU1401-1BF30-1AA0SKU # CEY-8EF3B0326127

product brand nameSIRIUS ACT

product designationLED module

product type designation3SU1

diodeYes

lamp transformerNo

light sourceYes

Have questions?Chat on WhatsApp

About This Product

LED module with integrated LED 230 V AC, yellow, screw terminal, for front plate mounting

Siemens 3SU1401-1BF30-1AA0

Genuine, certified Siemens product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

product brand nameSIRIUS ACT

product designationLED module

product type designation3SU1

General technical data

diodeYes

lamp transformerNo

light sourceYes

series resistorNo

insulation voltage rated value320 V

degree of pollution3

type of voltage of the operating voltageAC

for actuationAC

surge voltage resistance rated value4 kV

consumed current maximum20 mA

of the enclosureIP40

of the terminalIP20

according to IEC 60068-2-27sinusoidal half-wave 15 g / 11 ms

for railway applications according to EN 61373Category 1, Class B

according to IEC 60068-2-610 ... 500 Hz: 5 g

for railway applications according to EN 61373Category 1, Class B

operating period typical100 000 h

reference code according to IEC 81346-2P

Substance Prohibitance (day/month/year)10/01/2014

SVHC substance name2-methyl-1-(4-methylthiophenyl)-2-morpholinopropan-1-one CAS-No. 71868-10-5

Net Weight10 g

— at 50 Hz rated value230 V

— at 60 Hz rated value230 V

relative positive tolerance of the operating voltage20 %

relative negative tolerance of the operating voltage20 %

Control circuit/ Control

inrush current maximum3 A

Connections/ Terminals

type of electrical connectionscrew terminal

solid with core end processing2x (0.5 ... 0.75 mm²)

solid without core end processing2x (1.0 ... 1.5 mm²)

finely stranded with core end processing2x (0.5 ... 1.5 mm²)

finely stranded without core end processing2x (1,0 ... 1,5 mm²)

for AWG cables2x (18 ... 14)

connectable conductor cross-section finely stranded with core end processing0.5 ... 1.5 mm²

tightening torque with screw-type terminals0.8 ... 0.9 N·m

Lamp

type of light sourceLED

color of the light sourceyellow

light intensity900 ... 1 400 mcd

ATEX

ATEXNo

IECExNo

Ambient conditions

during operation-25 ... +70 °C

during storage-40 ... +80 °C

environmental category during operation according to IEC 607213M6, 3S2, 3B2, 3C3, 3K6 (with relative air humidity of 10 ... 95%, no condensation in operation permitted)

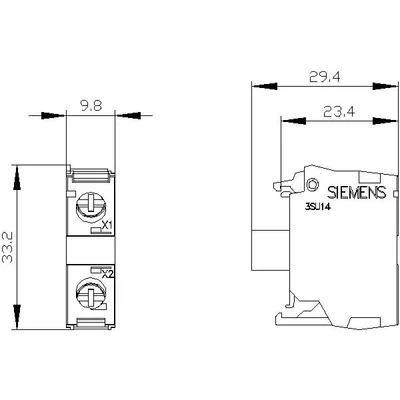

Installation/ mounting/ dimensions

of modules and accessoriesFront plate mounting

height33.2 mm

width9.8 mm

depth29.4 mm

Environmental footprint

Environmental Product Declaration(EPD)Yes

global warming potential [CO2 eq] total0.787 kg

global warming potential [CO2 eq] during manufacturing0.566 kg

global warming potential [CO2 eq] during operation0.235 kg

global warming potential [CO2 eq] after end of life-0.015 kg

Approvals Certificates

global warming potential [CO2 eq] / during manufacturing0.566 kg

global warming potential [CO2 eq] / during operation0.235 kg

global warming potential [CO2 eq] / after end of life-0.0145 kg

global warming potential [CO2 eq] / total0.787 kg
