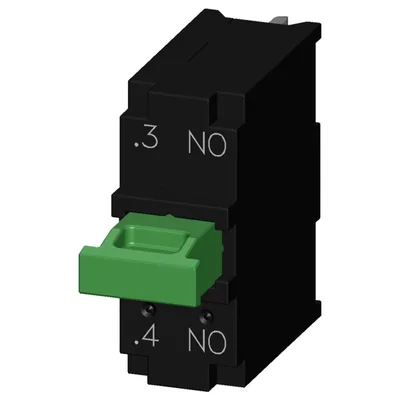

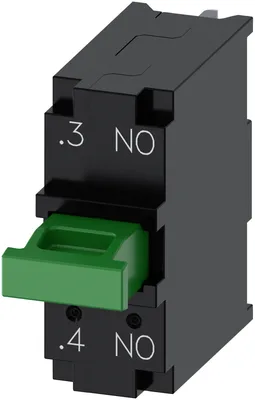

Siemens 3SU1400-3AA10-5BA0

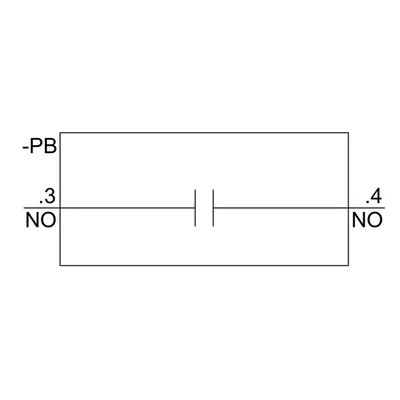

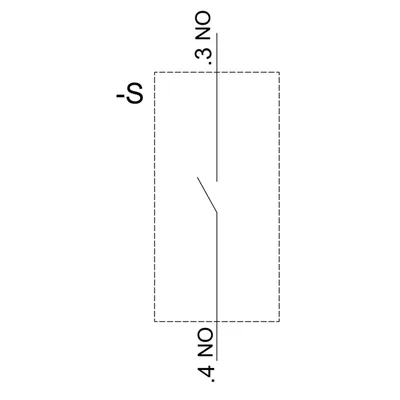

Contact module with 1 contact element, 1 NO, soldered connection, for use on printed circuit boards

SiemensMFR # 3SU1400-3AA10-5BA0SKU # CEY-8EF3B02C2F5F

product brand nameSIRIUS ACT

product designationContact module

product type designation3SU1

socket designother

product function positive openingNo

insulation voltage rated value250 V

Have questions?Chat on WhatsApp

About This Product

Contact module with 1 contact element, 1 NO, soldered connection, for use on printed circuit boards

Siemens 3SU1400-3AA10-5BA0

Genuine, certified Siemens product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

product brand nameSIRIUS ACT

product designationContact module

product type designation3SU1

Contact block/ lampholder

socket designother

General technical data

product function positive openingNo

insulation voltage rated value250 V

degree of pollution3

of the operating voltageAC/DC

of the input voltageAC/DC

surge voltage resistance rated value4 kV

of the enclosureIP40

of the terminalIP00

according to IEC 60068-2-27sinusoidal half-wave 15 g / 11 ms

for railway applications according to EN 61373Category 1, Class B

according to IEC 60068-2-610 ... 500 Hz: 5 g

for railway applications according to EN 61373Category 1, Class B

operating frequency maximum3 600 1/h

mechanical service life (operating cycles) typical10 000 000

electrical endurance (operating cycles) typical10 000 000

thermal current10 A

reference code according to IEC 81346-2S

continuous current of the C characteristic MCB10 A

Substance Prohibitance (day/month/year)10/01/2014

Net Weight4 g

— at 50 Hz rated value5 ... 240 V

— at 60 Hz rated value5 ... 240 V

at DC rated value5 ... 250 V

Power Electronics

contact reliabilityOne maloperation per 100 million (17 V, 5 mA), one maloperation per 10 million (5 V, 1 mA)

Auxiliary circuit

design of the contact of auxiliary contactsSilver alloy

number of NC contacts for auxiliary contacts0

lagging switching0

number of NO contacts for auxiliary contacts1

leading contact0

at 24 V rated value10 A

at 48 V rated value10 A

at 110 V rated value10 A

at 230 V rated value10 A

at 24 V rated value6 A

at 48 V rated value6 A

at 110 V rated value6 A

at 230 V rated value4 A

at 24 V rated value10 A

at 48 V rated value5 A

at 110 V rated value2.5 A

at 230 V rated value1 A

at 24 V rated value3 A

at 48 V rated value1.5 A

at 110 V rated value0.7 A

at 230 V rated value0.3 A

Connections/ Terminals

type of electrical connectionSocket connection (THT)

Ambient conditions

during operation-25 ... +70 °C

during storage-40 ... +80 °C

environmental category during operation according to IEC 607213M6, 3S2, 3B2, 3C3 (without salt spray), 3K6 (with relative humidity of 10 ... 95%, no condensation in operation permitted)

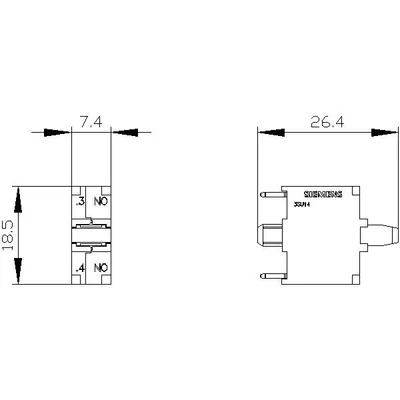

Installation/ mounting/ dimensions

fastening methodPrinted circuit board

of modules and accessoriesPrinted circuit board

height18.5 mm

width7.6 mm

depth16.2 mm

plastic enclosureNo

metal enclosureNo

type of soldering methodSelective soldering process, manual soldering, laser soldering; No liquid solder must not come into contact with the plastic parts and enclosure parts

parameter of the soldering methodMaximum solder temperature with liquid solder 285 °C for max. 2 seconds per pin

soldering point quality according to IPC A-610Class 2

Environmental footprint

Environmental Product Declaration(EPD)Yes

global warming potential [CO2 eq] total0.787 kg

global warming potential [CO2 eq] during manufacturing0.566 kg

global warming potential [CO2 eq] during operation0.235 kg

global warming potential [CO2 eq] after end of life-0.015 kg

Approvals Certificates

global warming potential [CO2 eq] / during manufacturing0.566 kg

global warming potential [CO2 eq] / during operation0.235 kg

global warming potential [CO2 eq] / after end of life-0.0145 kg

global warming potential [CO2 eq] / total0.787 kg
