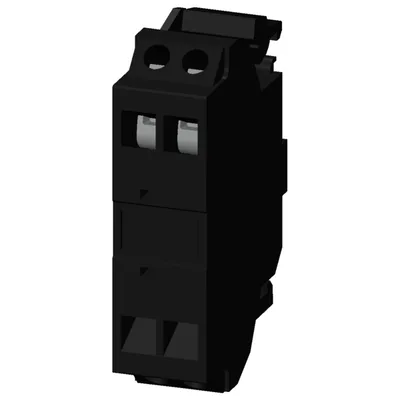

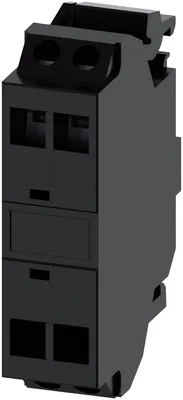

Siemens 3SU1400-2DA10-3AA0
Support terminal, black, spring-type terminal, for floor mounting
product brand nameSIRIUS ACT
product designationSupport terminal
product type designation3SU1
suitability for integrationyes
degree of pollution3
surge voltage resistance rated value6 kV
About This Product
Support terminal, black, spring-type terminal, for floor mounting
Siemens 3SU1400-2DA10-3AA0
- Genuine, certified Siemens product
- Fast sourcing through a worldwide supply network
- Product selection and compatibility support from our technical team
- Equivalent and alternative product suggestions
- Quotation and lead time tailored to your request
Specifications
product brand nameSIRIUS ACT
product designationSupport terminal
product type designation3SU1
General technical data
suitability for integrationyes
degree of pollution3
surge voltage resistance rated value6 kV
of the enclosureIP40
of the terminalIP20
reference code according to IEC 81346-2S
Substance Prohibitance (day/month/year)10/01/2014
Net Weight10 g
Connections/ Terminals
type of electrical connectionspring-loaded terminals
of modules and accessoriesSpring-type terminal
solid without core end processing2x (0.25 ... 1.5 mm²)
finely stranded with core end processing2x (0.25 ... 0.75 mm²)
finely stranded without core end processing2x (0.25 ... 1.5 mm²)
for AWG cables2x (24 ... 16)
Ambient conditions
during operation-25 ... +70 °C
during storage-40 ... +80 °C

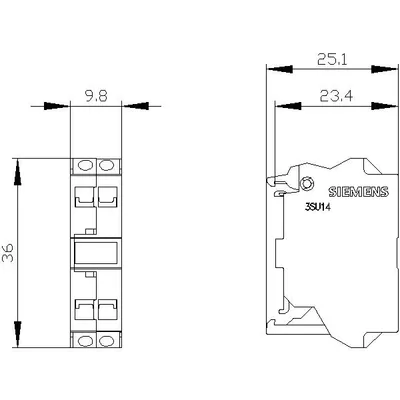

Installation/ mounting/ dimensions
fastening method of modules and accessoriesFloor mounting
height36 mm
width9.8 mm
depth33.6 mm
Environmental footprint
Environmental Product Declaration(EPD)Yes
global warming potential [CO2 eq] total0.787 kg
global warming potential [CO2 eq] during manufacturing0.566 kg
global warming potential [CO2 eq] during operation0.235 kg
global warming potential [CO2 eq] after end of life-0.015 kg
Approvals Certificates
global warming potential [CO2 eq] / during manufacturing0.566 kg
global warming potential [CO2 eq] / during operation0.235 kg
global warming potential [CO2 eq] / after end of life-0.0145 kg
global warming potential [CO2 eq] / total0.787 kg
Product information
EAN4011209965973
UPC804766475979
Product familyModules
Life cycle statusActive
Commodity code85369010
Delivery and logistics
Country of originGermany
Standard delivery time3 Day/Days
ReturnableYes
Net weight0.01 Kg
Packaging dimensions (L x W x H)45 x 30 x 15 MM
Standard package quantity1 Piece
Minimum order quantity1
Dangerous goodsNo
Export control regulationsAL : N / ECCN : N
Environment and compliance
RoHS conformitySince: 01-10-14
WEEE category5
REACH informationReach Information
Siemens catalog
Product group5452
Catalog IDCC-IC10
Group codeR711
Product classStraightforward, can be reused over the short term
