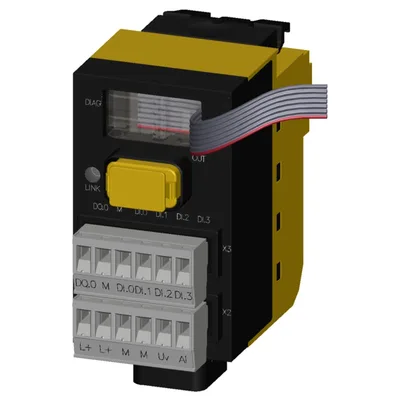

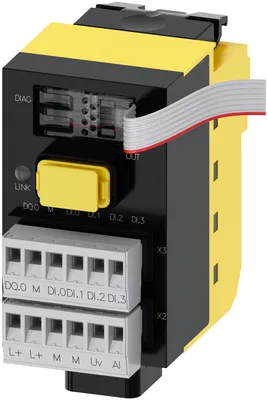

Siemens 3SU1400-1LL10-1BA1

SIRIUS ACT with PROFINET: fail-safe interface module with 4 DI, 1 DQ (24 V DC), 1 AI (12-bit A/D resolution), 24 V DC, screw terminal, front plate mounting, 1 to 20 terminal modules connectable

SiemensMFR # 3SU1400-1LL10-1BA1SKU # CEY-8EF3B02CD78E

product brand nameSIRIUS ACT

product designationFail-safe interface module for PROFINET

product type designation3SU1

status Tx/Rx linkYes

diagnostics functionYes

alarmsYes

Have questions?Chat on WhatsApp

About This Product

SIRIUS ACT with PROFINET: fail-safe interface module with 4 DI, 1 DQ (24 V DC), 1 AI (12-bit A/D resolution), 24 V DC, screw terminal, front plate mounting, 1 to 20 terminal modules connectable

Siemens 3SU1400-1LL10-1BA1

Genuine, certified Siemens product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

product brand nameSIRIUS ACT

product designationFail-safe interface module for PROFINET

product type designation3SU1

Display

for diagnostic function: Supply voltage monitoring power LEDYes

status Tx/Rx linkYes

General technical data

reverse polarity protectionYes; With polarity change, DI1 ... DI4 may not be connected to (M) pole

diagnostics functionYes

alarmsYes

I&M dataYes; I&M0 ... I&M3

firmware version2.1.4

hardware version1

configuration function with datasetYes

software version with STEP 7 in the TIA Portal requiredIntegrated in TIA Portal Version 14 SP1 or higher (HSP for V13 and V14)

number of units per rack maximum20

number of submodules per station maximum24

power loss [W] typical0.67 W

insulation voltage rated value30 V

degree of pollution3

of the operating voltageDC

of the input voltageDC

surge voltage resistance rated value0.8 kV

maximum100 mA

rated value28 mA

protection class IPIP20, clamping screw tightened

according to IEC 60068-2-27sinusoidal half-wave 15 g / 11 ms

for railway applications according to EN 61373Category 1, Class B

according to IEC 60068-2-610 ... 500 Hz: 5 g

for railway applications according to EN 61373Category 1, Class B

reference code according to IEC 81346-2K

Substance Prohibitance (day/month/year)12/19/2016

SVHC substance nameLead CAS-No. 7439-92-1 Lead monoxide (lead oxide) CAS-No. 1317-36-8 2-methyl-1-(4-methylthiophenyl)-2-morpholinopropan-1-one CAS-No. 71868-10-5 Melamine CAS-No. 108-78-1

Net Weight146.38 g

operating voltage rated value minimum20.4 V

I2t value0.008 A²·s

Supply voltage

supply voltage at DC rated value24 V

Communication/ Protocol

PROFINET IO protocolYes

PROFIsafe protocolYes

AutocrossoverYes

AutonegotiationYes

protocol at the 1st interface media redundancy protocolNo

product function at the 1st interface PROFINET IO deviceYes

product function of the PROFINET IO device is supported PROFINET system redundancyNo

prioritized startupNo

isochronous modeNo

supports Shared DeviceNo

supports PROFIenergyNo

IRTNo

MRPNo

MRPDNo

LLDPYes

SNMPYes

TCP/IPYes

GSD version/revision with PROFINET requiredV2.34

transmission mode for Industrial EthernetPROFINET with 100 Mbps full duplex (100BASE-TX)

network load class according to PROFINETI

specification for Security Level 1 test according to PROFINETResilient to network loading

Control circuit/ Control

inrush current maximum16 A

Galvanic isolation

galvanic isolation between PROFINET and all other circuitsYes

Inputs/ Outputs

number of digital inputs4

safety-related0

number of analog inputs1

number of digital outputs1

Connections/ Terminals

type of electrical connectionscrew terminal

solid or stranded0.2 ... 2.5 mm²

finely stranded with core end processing maximum2.5 mm²

solid0.2 ... 2.5 mm²

solid with core end processing0.2 ... 2.5 mm²

finely stranded with core end processing0.25 ... 2.5 mm²

finely stranded without core end processing0.2 ... 2.5 mm²

AWG number as coded connectable conductor cross section30 ... 12

tightening torque with screw-type terminals0.5 ... 0.6 N·m

Safety related data

product function suitable for safety functionYes

safe stateProcess value within PROFISafe telegram is set to zero

service life maximum20 a

test wear-related service life necessaryNo

function test interval maximum1 mo

IEC 62061

Safety Integrity Level (SIL) according to IEC 62061SIL 3

PFHD with high demand rate according to IEC 620616E-10 1/h

ISO 13849

performance level (PL) according to ISO 13849-1PL e

category according to ISO 13849-14

device type according to ISO 13849-11

IEC 61508

Safety Integrity Level (SIL) according to IEC 61508SIL 3

safety device type according to IEC 61508-2Type B

PFHD with high demand rate according to IEC 615086E-10 1/h

PFDavg with low demand rate according to IEC 615082.426E-6

Safe failure fraction (SFF)99.6 %

hardware fault tolerance according to IEC 615081

according to IEC 615081 a

of service life according to IEC 6150820 a

Interfaces

Ethernet interfaceYes; for Ethernet services

Fast Ethernet interfaceYes; PROFINET with 100 Mbps

integrated switchNo

RJ45 (Ethernet)Yes

number of ports at the 1st interface1

number of interfaces according to PROFINET1

Ambient conditions

during operation-25 ... +60 °C

during storage-40 ... +80 °C

environmental category during operation according to IEC 607213M6, 3S2, 3B2, 3K6 (with relative air humidity of 10 ... 95%, no condensation in operation permitted)

explosion protection marking for intrinsic safety of related equipment EEx iaNo

explosion protection marking for intrinsic safety of related equipment EEx ibNo

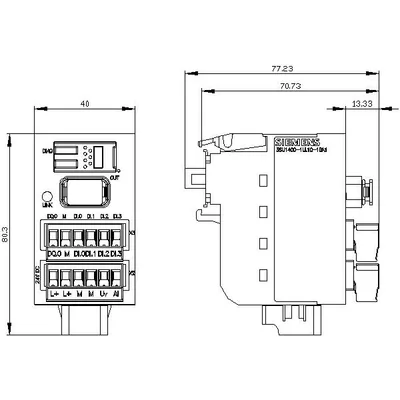

Installation/ mounting/ dimensions

fastening method of modules and accessoriesFront plate mounting

height80.1 mm

width40 mm

depth72.1 mm

Environmental footprint

Environmental Product Declaration(EPD)Yes

global warming potential [CO2 eq] total0.787 kg

global warming potential [CO2 eq] during manufacturing0.566 kg

global warming potential [CO2 eq] during operation0.235 kg

global warming potential [CO2 eq] after end of life-0.015 kg

Approvals Certificates

global warming potential [CO2 eq] / during manufacturing0.566 kg

global warming potential [CO2 eq] / during operation0.235 kg

global warming potential [CO2 eq] / after end of life-0.0145 kg

global warming potential [CO2 eq] / total0.787 kg
