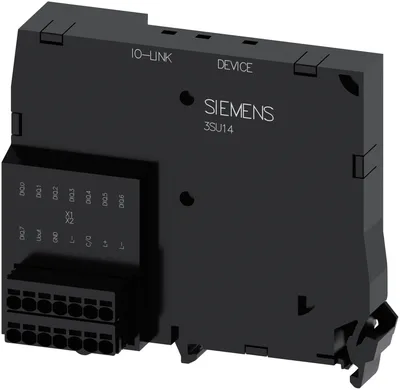

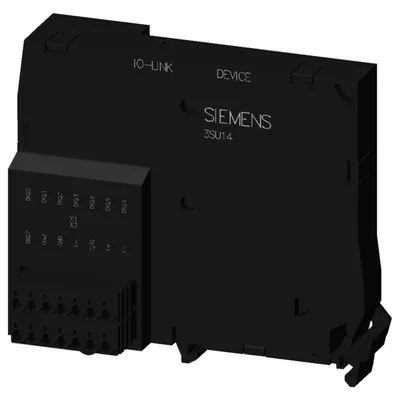

Siemens 3SU1400-1HL10-6AA0

Electronics module for IO-Link, black, 8 inputs/outputs, user-programmable, default 6 DI/2 DQ, Spring-type terminal (Push-in), for front plate mounting

SiemensMFR # 3SU1400-1HL10-6AA0SKU # CEY-8EF3B038F291

product brand nameSIRIUS ACT

product designationElectronic module for IO-Link

product type designation3SU1

insulation voltage rated value30 V

degree of pollution3

of the operating voltageDC

Have questions?Chat on WhatsApp

About This Product

Electronics module for IO-Link, black, 8 inputs/outputs, user-programmable, default 6 DI/2 DQ, Spring-type terminal (Push-in), for front plate mounting

Siemens 3SU1400-1HL10-6AA0

Genuine, certified Siemens product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

product brand nameSIRIUS ACT

product designationElectronic module for IO-Link

product type designation3SU1

General technical data

insulation voltage rated value30 V

degree of pollution3

of the operating voltageDC

of the input voltageDC

surge voltage resistance rated value0.8 kV

consumed current maximum41 mA

protection class IPIP20

shock resistance for railway applications according to EN 61373Category 1, Class B

vibration resistance for railway applications according to EN 61373Category 1, Class B

reference code according to IEC 81346-2P

Substance Prohibitance (day/month/year)10/01/2014

SVHC substance nameLead CAS-No. 7439-92-1 Lead monoxide (lead oxide) CAS-No. 1317-36-8 2-methyl-1-(4-methylthiophenyl)-2-morpholinopropan-1-one CAS-No. 71868-10-5 Melamine CAS-No. 108-78-1

Net Weight37.38 g

operating voltage rated value18 ... 30 V

operating voltage 1 at DC rated value24 V

Communication/ Protocol

AS-Interface protocolNo

IO-Link protocolYes

IO-Link transfer rateCOM2 (38,4 kBaud)

point-to-point cycle time between master and IO-Link device minimum10 ms

type of voltage supply via input/output link masterYes

of the address range of the inputs with cyclical transfer total2 byte

of the address range of the outputs with cyclical transfer total2 byte

Inputs/ Outputs

notefreely programmable

number of digital outputsfreely programmable

Connections/ Terminals

type of electrical connectionspring-loaded terminal (push-in)

solid with core end processing1x (0.14 ... 0.5 mm²)

solid without core end processing1x (0.14 ... 0.5 mm²)

finely stranded without core end processing1x (0.2 ... 0.5 mm²)

for AWG cables1x (26 ... 20)

Product Function

suitability for use safety-related circuitsNo

Ambient conditions

during operation-25 ... +70 °C

during storage-40 ... +80 °C

environmental category during operation according to IEC 607213M6, 3S2, 3B2, 3C3 (without salt spray), 3K6 (with relative humidity of 10 ... 95%, no condensation in operation permitted)

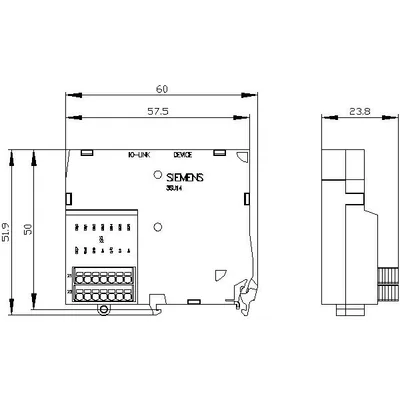

Installation/ mounting/ dimensions

fastening method of modules and accessoriesFront plate mounting

height57.5 mm

width23.8 mm

depth53.5 mm

Measuring circuit

product functionfreely programmable (default 6DI / 2DQ)

Environmental footprint

Environmental Product Declaration(EPD)Yes

global warming potential [CO2 eq] total0.787 kg

global warming potential [CO2 eq] during manufacturing0.566 kg

global warming potential [CO2 eq] during operation0.235 kg

global warming potential [CO2 eq] after end of life-0.015 kg

Approvals Certificates

global warming potential [CO2 eq] / during manufacturing0.566 kg

global warming potential [CO2 eq] / during operation0.235 kg

global warming potential [CO2 eq] / after end of life-0.0145 kg

global warming potential [CO2 eq] / total0.787 kg
