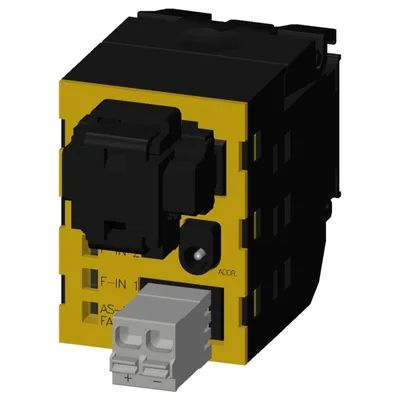

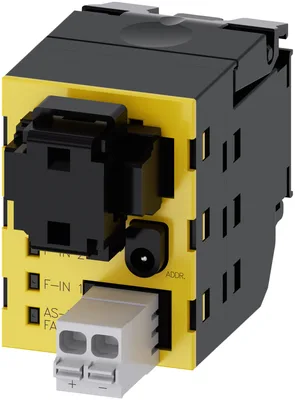

Siemens 3SU1400-1EC10-4AA0

AS-Interface module, 2 safe inputs, 1 output, black, insulation displacement system and 2-pole connector with spring-type terminal, for front plate mounting

SiemensMFR # 3SU1400-1EC10-4AA0SKU # CEY-8EF3B02EDB26

product brand nameSIRIUS ACT

product designationAS-Interface module

product type designation3SU1

product function2F-DI / 1 DQ

degree of pollution3

of the operating voltageDC

Have questions?Chat on WhatsApp

About This Product

AS-Interface module, 2 safe inputs, 1 output, black, insulation displacement system and 2-pole connector with spring-type terminal, for front plate mounting

Siemens 3SU1400-1EC10-4AA0

Genuine, certified Siemens product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

product brand nameSIRIUS ACT

product designationAS-Interface module

product type designation3SU1

General technical data

product function2F-DI / 1 DQ

degree of pollution3

of the operating voltageDC

of the input voltageDC

consumed current maximum60 mA

protection class IPIP20

shock resistance for railway applications according to EN 61373Category 1, Class B

vibration resistance for railway applications according to EN 61373Category 1, Class B

reference code according to IEC 81346-2K

Substance Prohibitance (day/month/year)10/01/2014

SVHC substance nameLead monoxide (lead oxide) CAS-No. 1317-36-8 2-methyl-1-(4-methylthiophenyl)-2-morpholinopropan-1-one CAS-No. 71868-10-5 Melamine CAS-No. 108-78-1 Diboron trioxide CAS-No. 1303-86-2

Net Weight50.38 g

design of the device type2 F-DI + 1 DQ

AS-Interface device profileS-7.B.F

ID1 code0...F

number of AS-i devices1

operating voltage rated value26.5 ... 31.6 V

operating voltage 1 at DC rated value30 V

Communication/ Protocol

AS-Interface protocolYes

ASIsafe (Safety at work) protocolYes

Inputs/ Outputs

safety-related2

number of digital outputs1; Unrestricted

Connections/ Terminals

type of electrical connectionspring-loaded terminal + insulation displacement method

solid without core end processing1x (0.2 ... 2.5 mm²)

finely stranded with core end processing1x (0.25 ... 1.5 mm²)

finely stranded without core end processing1x (0.22 ... 1.5 mm²)

for AWG cables1x (24 ... 16)

Product Function

suitability for use safety-related circuitsYes

Safety related data

product function suitable for safety functionYes

safe stateoff

test wear-related service life necessaryNo

category according to EN 954-14

average diagnostic coverage level (DCavg)99 %

IEC 62061

Safety Integrity Level (SIL) according to IEC 62061SIL 3

PFHD with high demand rate according to IEC 620614.5E-9 1/h

ISO 13849

performance level (PL) according to ISO 13849-1PL e

category according to ISO 13849-14

device type according to ISO 13849-11

IEC 61508

according to IEC 61508SIL 3

safety device type according to IEC 61508-2Type B

PFHD with high demand rate according to IEC 615084.5E-9 1/h

PFDavg with low demand rate according to IEC 615085E-6

Safe failure fraction (SFF)99 %

hardware fault tolerance according to IEC 615081

T1 value of service life according to IEC 6150820 a

Ambient conditions

during operation-25 ... +70 °C

during storage-40 ... +80 °C

environmental category during operation according to IEC 607213M6, 3S2, 3B2, 3C3 (without salt spray), 3K6 (with relative humidity of 10 ... 95%, no condensation in operation permitted)

Installation/ mounting/ dimensions

of modules and accessoriesFront plate mounting

of the AS-i devicesFrontplattenbefestigung

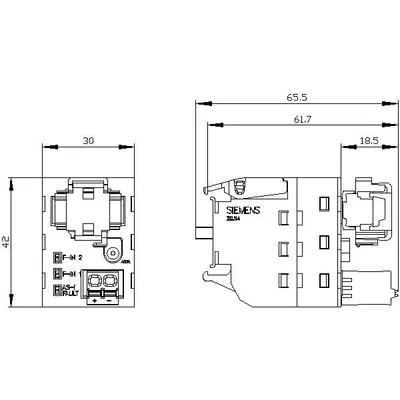

height42 mm

width30 mm

depth65.5 mm

Environmental footprint

Environmental Product Declaration(EPD)Yes

global warming potential [CO2 eq] total0.787 kg

global warming potential [CO2 eq] during manufacturing0.566 kg

global warming potential [CO2 eq] during operation0.235 kg

global warming potential [CO2 eq] after end of life-0.015 kg

Approvals Certificates

global warming potential [CO2 eq] / during manufacturing0.566 kg

global warming potential [CO2 eq] / during operation0.235 kg

global warming potential [CO2 eq] / after end of life-0.0145 kg

global warming potential [CO2 eq] / total0.787 kg
