How can I get a price quote for Siemens 3SU1400-1DA10-3AA0?

You can request a fast quote for Siemens 3SU1400-1DA10-3AA0 from Yılsa Engineering. Reference part number YLSDHKX2BQD9VCI. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Siemens 3SU1400-1DA10-3AA0 in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Siemens 3SU1400-1DA10-3AA0 genuine and new?

Yes. This Siemens product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Siemens 3SU1400-1DA10-3AA0?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

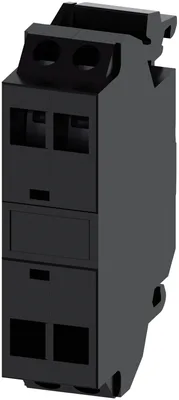

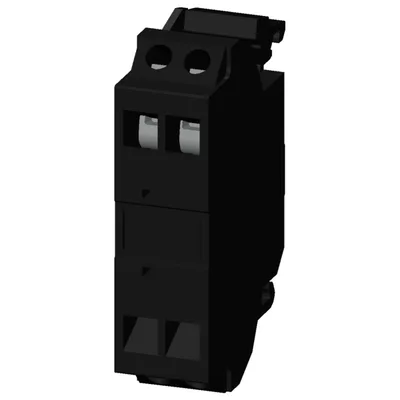

Siemens 3SU1400-1DA10-3AA0

Support terminal, black, spring-type terminal, for front plate mounting

SiemensMFR # 3SU1400-1DA10-3AA0SKU # YLSDHKX2BQD9VCI

product brand nameSIRIUS ACT

product designationSupport terminal

product type designation3SU1

suitability for integrationyes

degree of pollution3

surge voltage resistance rated value6 kV

Have questions?Chat on WhatsApp

About This Product

Support terminal, black, spring-type terminal, for front plate mounting

Siemens 3SU1400-1DA10-3AA0

Genuine, certified Siemens product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

product brand nameSIRIUS ACT

product designationSupport terminal

product type designation3SU1

General technical data

suitability for integrationyes

degree of pollution3

surge voltage resistance rated value6 kV

of the enclosureIP40

of the terminalIP20

reference code according to IEC 81346-2S

Substance Prohibitance (day/month/year)10/01/2014

Net Weight10 g

Connections/ Terminals

type of electrical connectionspring-loaded terminals

of modules and accessoriesSpring-type terminal

solid without core end processing2x (0.25 ... 1.5 mm²)

finely stranded with core end processing2x (0.25 ... 0.75 mm²)

finely stranded without core end processing2x (0.25 ... 1.5 mm²)

for AWG cables2x (24 ... 16)

Ambient conditions

during operation-25 ... +70 °C

during storage-40 ... +80 °C

Installation/ mounting/ dimensions

fastening method of modules and accessoriesFront plate mounting

height36 mm

width9.8 mm

depth23.4 mm

Environmental footprint

Environmental Product Declaration(EPD)Yes

global warming potential [CO2 eq] total0.787 kg

global warming potential [CO2 eq] during manufacturing0.566 kg

global warming potential [CO2 eq] during operation0.235 kg

global warming potential [CO2 eq] after end of life-0.015 kg

Approvals Certificates

global warming potential [CO2 eq] / during manufacturing0.566 kg

global warming potential [CO2 eq] / during operation0.235 kg

global warming potential [CO2 eq] / after end of life-0.0145 kg

global warming potential [CO2 eq] / total0.787 kg

Product information

EAN4011209965218

UPC804766475900

Product familyModules

Life cycle statusActive

Commodity code85369010

Delivery and logistics

Country of originGermany

Standard delivery time3 Day/Days

ReturnableYes

Net weight0.01 Kg

Packaging dimensions (L x W x H)35 x 25 x 10 MM

Standard package quantity1 Piece

Minimum order quantity1

Dangerous goodsNo

Export control regulationsAL : N / ECCN : N

Environment and compliance

RoHS conformitySince: 01-10-14

WEEE category5

REACH informationReach Information

Siemens catalog

Product group5452

Catalog IDCC-IC10

Group codeR711

Product classStraightforward, can be reused over the short term
