How can I get a price quote for Siemens 3SU1200-6LF10-1AA0-ZX90?

You can request a fast quote for Siemens 3SU1200-6LF10-1AA0-ZX90 from Yılsa Engineering. Reference part number YLSP4GHW1MJSRKR. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Siemens 3SU1200-6LF10-1AA0-ZX90 in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Siemens 3SU1200-6LF10-1AA0-ZX90 genuine and new?

Yes. This Siemens product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Siemens 3SU1200-6LF10-1AA0-ZX90?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

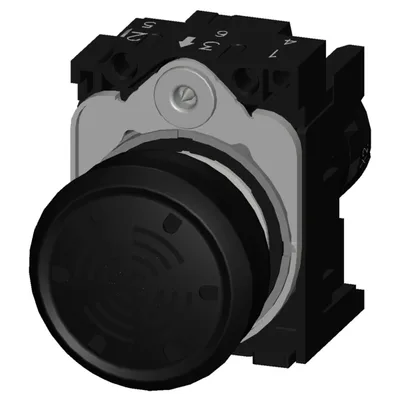

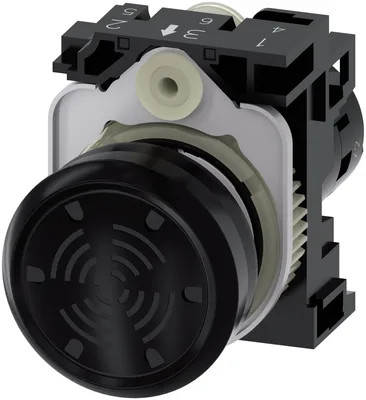

Siemens 3SU1200-6LF10-1AA0-ZX90

acoustic signal device, compact, 22 mm, round, plastic, black, continuous tone 4.5 kHz, IP69, sound pressure 75+/-10% dB/10 cm, with holder, operating voltage 230 V AC, screw terminal, Z=50-unit packaging

SiemensMFR # 3SU1200-6LF10-1AA0-ZX90SKU # YLSP4GHW1MJSRKR

product brand nameSIRIUS ACT

product designationAcoustic signaling device

design of the productCompact unit

product type designation3SU1

product linePlastic, black, 22 mm

number of command points1

Have questions?Chat on WhatsApp

About This Product

Siemens 3SU1200-6LF10-1AA0-ZX90

Genuine, certified Siemens product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

product brand nameSIRIUS ACT

product designationAcoustic signaling device

design of the productCompact unit

product type designation3SU1

product linePlastic, black, 22 mm

manufacturer's article number of the supplied holder3SU1550-0AA10-0AA0

Enclosure

number of command points1

Actuator

color of the actuating elementblack

material of the actuating elementplastic

shape of the actuating elementround

outer diameter of the actuating element29.5 mm

Front ring

product component front ringNo

Holder

material of the holderPlastic

General technical data

loudness level at 10 cm distance75 dB

insulation voltage rated value320 V

degree of pollution3

surge voltage resistance rated value4 kV

consumed current at rated value of operating voltage maximum32 mA

protection class IPIP66, IP67, IP69(IP69K)

protection class IP of the terminalIP20, clamping screw tightened

degree of protection NEMA rating1

according to IEC 60068-2-27sinusoidal half-wave 15 g / 11 ms

for railway applications according to EN 61373Category 1, Class B

according to IEC 60068-2-610 ... 500 Hz: 5 g

for railway applications according to EN 61373Category 1, Class B

reference code according to IEC 81346-2P

Substance Prohibitance (day/month/year)10/01/2014

SVHC substance nameLead CAS-No. 7439-92-1 2-methyl-1-(4-methylthiophenyl)-2-morpholinopropan-1-one CAS-No. 71868-10-5 Melamine CAS-No. 108-78-1

Net Weight0.033 kg

relative positive tolerance of the operating voltage20 %

relative negative tolerance of the operating voltage20 %

Supply voltage

type of voltage of the supply voltage of the acoustic signal elementAC

at 50 Hz rated value230 V

at 60 Hz rated value230 V

Control circuit/ Control

inrush current maximum3 A

Connections/ Terminals

type of electrical connectionscrew terminal

solid with core end processing2x (0.5 ... 0.75 mm²)

solid without core end processing2x (1.0 ... 1.5 mm²)

finely stranded with core end processing2x (0.5 ... 1.5 mm²)

finely stranded without core end processing2x (1,0 ... 1,5 mm²)

for AWG cables2x (18 ... 14)

tightening torque of the screws in the bracket1 ... 1.2 N·m

tightening torque with screw-type terminals0.8 ... 1 N·m

Ambient conditions

during operation-25 ... +70 °C

during storage-40 ... +80 °C

environmental category during operation according to IEC 607213M6, 3S2, 3B2, 3C3, 3K6 (with relative air humidity of 10 ... 95%, no condensation in operation permitted for all devices behind front panel)

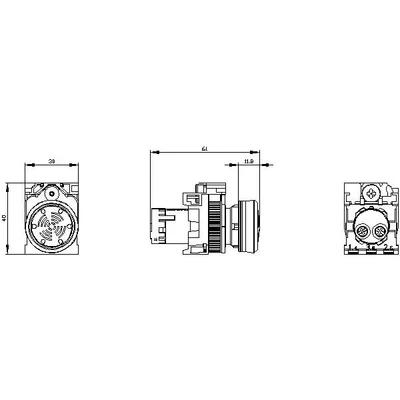

Installation/ mounting/ dimensions

fastening methodfront plate mounting

height40 mm

width30 mm

shape of the installation openinground

mounting diameter22.3 mm

positive tolerance of installation diameter0.4 mm

mounting height11.4 mm

installation width29.5 mm

installation depth49.6 mm

Approvals Certificates

global warming potential [CO2 eq] / during manufacturing0.566 kg

global warming potential [CO2 eq] / during operation0.235 kg

global warming potential [CO2 eq] / after end of life-0.0145 kg

global warming potential [CO2 eq] / total0.787 kg

Product information

Product familyActuators and indicators, 22 mm, round, plastic, black

Life cycle statusActive

Commodity code85318070

Delivery and logistics

Country of originCzech Republic

Standard delivery time5 Day/Days

ReturnableYes

Net weight0.033 Kg

Packaging dimensions (L x W x H)154 x 100 x 30 MM

Standard package quantity1 Piece

Minimum order quantity50

Dangerous goodsNo

Export control regulationsAL : N / ECCN : N

Environment and compliance

RoHS conformitySince: 01-10-14

WEEE category5

REACH informationLead CAS-No. 7439-92-1 > 0,1 % (w / w)

Siemens catalog

Product group5452

Catalog IDCC-IC10

Group codeR711

Product classProducts that have been manufactured for specific orders/customers, involving engineering – and which cannot be reused in any form (specifically designed for the customer)
