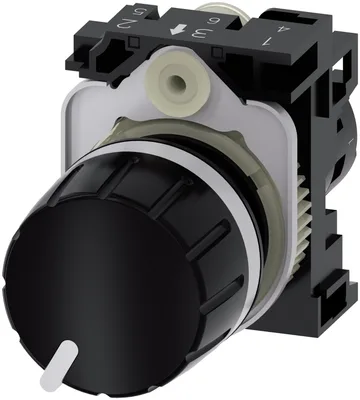

Siemens 3SU1200-2PV10-1AA0

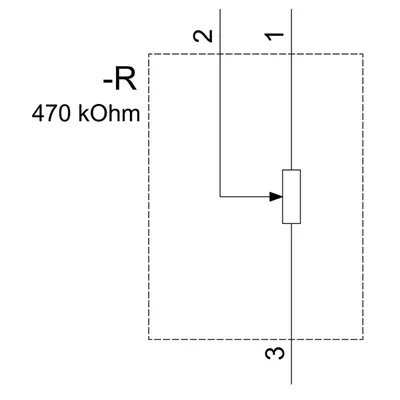

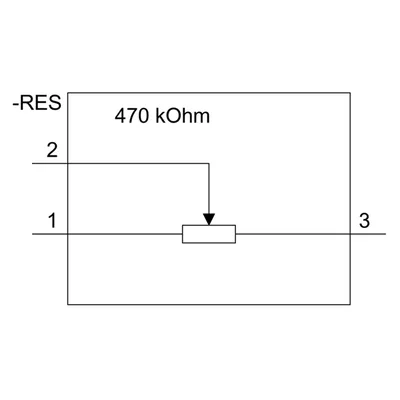

Potentiometer, compact, 22 mm, round, plastic, black, 470k ohm, with holder, screw terminal

SiemensMFR # 3SU1200-2PV10-1AA0SKU # CEY-8EF3B02ECCA5

product brand nameSIRIUS ACT

product designationPotentiometers

design of the productCompact unit

product type designation3SU1

product linePlastic, black, 22 mm

number of command points1

Have questions?Chat on WhatsApp

About This Product

Potentiometer, compact, 22 mm, round, plastic, black, 470k ohm, with holder, screw terminal

Siemens 3SU1200-2PV10-1AA0

Genuine, certified Siemens product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

product brand nameSIRIUS ACT

product designationPotentiometers

design of the productCompact unit

product type designation3SU1

product linePlastic, black, 22 mm

manufacturer's article number of the supplied holder3SU1550-0AA10-0AA0

Enclosure

number of command points1

Actuator

design of the actuating elementRotary knob

principle of operation of the actuating elementInfinitely variable adjustment, angle of rotation 280°

color of the actuating elementblack

material of the actuating elementplastic

shape of the actuating elementround

outer diameter of the actuating element30 mm

Maximum deflection angle [°]280°

Front ring

product component front ringNo

Holder

material of the holderPlastic

General technical data

consumed active power1 W

insulation voltage rated value500 V

degree of pollution3

protection class IPIP66, IP67, IP69(IP69K)

protection class IP of the terminalIP20, clamping screw tightened

degree of protection NEMA rating1, 2, 3, 3R, 4, 4X, 12, 13

according to IEC 60068-2-27sinusoidal half-wave 15 g / 11 ms

for railway applications according to EN 61373Category 1, Class B

according to IEC 60068-2-610 ... 500 Hz: 5 g

for railway applications according to EN 61373Category 1, Class B

mechanical service life (operating cycles) typical25 000

reference code according to IEC 81346-2S

Substance Prohibitance (day/month/year)01/01/2016

Net Weight69 g

Connections/ Terminals

type of electrical connectionscrew terminal

solid with core end processing2x (0.5 ... 0.75 mm²)

solid without core end processing2x (1.0 ... 1.5 mm²)

finely stranded with core end processing2x (0.5 ... 1.5 mm²)

finely stranded without core end processing2x (1,0 ... 1,5 mm²)

for AWG cables2x (18 ... 14)

tightening torque of the screws in the bracket1 ... 1.2 N·m

tightening torque with screw-type terminals0.8 ... 1 N·m

Ambient conditions

during operation-25 ... +70 °C

during storage-40 ... +80 °C

environmental category during operation according to IEC 607213M6, 3S2, 3B2, 3C3, 3K6 (with relative air humidity of 10 ... 95%, no condensation in operation permitted for all devices behind front panel)

Installation/ mounting/ dimensions

height40 mm

width30 mm

shape of the installation openinground

mounting diameter22.3 mm

positive tolerance of installation diameter0.4 mm

mounting height19.4 mm

installation width30 mm

installation depth46 mm

Approvals Certificates

global warming potential [CO2 eq] / during manufacturing0.566 kg

global warming potential [CO2 eq] / during operation0.235 kg

global warming potential [CO2 eq] / after end of life-0.0145 kg

global warming potential [CO2 eq] / total0.787 kg

Accessories 5

Genuine accessories that can be used with the Siemens 3SU1200-2PV10-1AA0 motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.

Part no	Description	Compatible motors
3SU1900-0BG16-0AA0	Aksesuar · Commanding and signaling devices
3SU1900-0BG16-0RT0	Aksesuar · Commanding and signaling devices
3SU1900-0BG16-0RU0	Aksesuar · Commanding and signaling devices
3SU1900-0BG16-0SA0	Aksesuar · Commanding and signaling devices
3SU1550-0AA10-0AA0	Bileşen · Commanding and signaling devices
