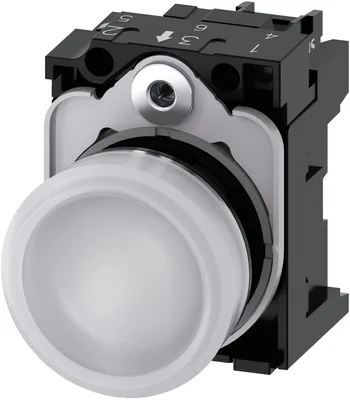

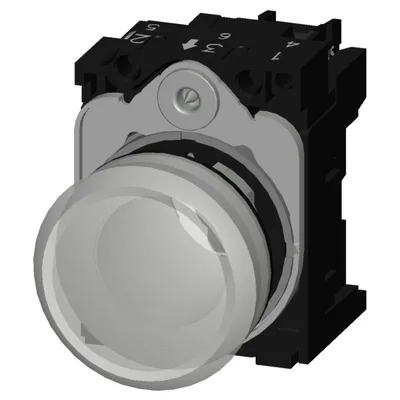

Siemens 3SU1156-6AA60-1AA0

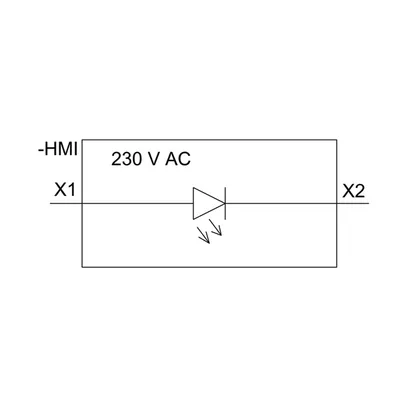

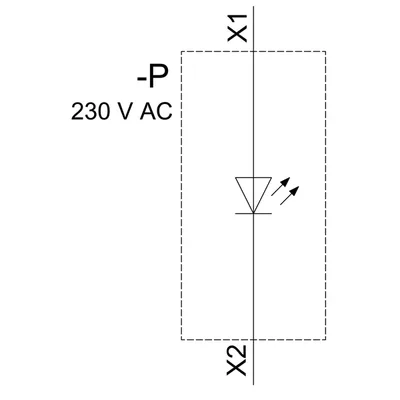

Indicator lights, 22 mm, round, metal, shiny, white, lens, smooth, with holder, LED module with integrated LED 230 V AC, screw terminal

SiemensMFR # 3SU1156-6AA60-1AA0SKU # CEY-8EF3B032614E

product brand nameSIRIUS ACT

product designationIndicator lights

design of the productComplete unit

product type designation3SU1

product lineMetal, shiny, 22 mm

of supplied LED module3SU1401-1BF60-1AA0

Have questions?Chat on WhatsApp

About This Product

Indicator lights, 22 mm, round, metal, shiny, white, lens, smooth, with holder, LED module with integrated LED 230 V AC, screw terminal

Siemens 3SU1156-6AA60-1AA0

Genuine, certified Siemens product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

product brand nameSIRIUS ACT

product designationIndicator lights

design of the productComplete unit

product type designation3SU1

product lineMetal, shiny, 22 mm

of supplied LED module3SU1401-1BF60-1AA0

of the supplied holder3SU1550-0AA10-0AA0

of supplied repeater3SU1051-6AA60-0AA0

Enclosure

number of command points1

Actuator

product extension optional light sourceYes

of the actuating elementwhite

material of the actuating elementplastic

shape of the actuating elementround

outer diameter of the actuating element29.45 mm

Front ring

product component front ringNo

Holder

material of the holderPlastic

Display

number of LED modules1

General technical data

product component light sourceYes

insulation voltage rated value320 V

degree of pollution3

type of voltage of the operating voltageAC

surge voltage resistance rated value4 kV

protection class IPIP66, IP67, IP69(IP69K)

protection class IP of the terminalIP20

degree of protection NEMA rating1, 2, 3, 3R, 4, 4X, 12, 13

according to IEC 60068-2-27sinusoidal half-wave 15 g / 11 ms

according to IEC 60068-2-610 ... 500 Hz: 5 g

reference code according to IEC 81346-2P

Substance Prohibitance (day/month/year)10/01/2014

SVHC substance name2-methyl-1-(4-methylthiophenyl)-2-morpholinopropan-1-one CAS-No. 71868-10-5

Net Weight0.057 kg

Supply voltage

type of voltage of the supply voltage of the light sourceAC

at 50 Hz rated value230 V

at 60 Hz rated value230 V

relative negative tolerance of the supply voltage20 %

relative positive tolerance of the supply voltage20 %

Control circuit/ Control

inrush current maximum3 A

Connections/ Terminals

type of electrical connectionother

of modules and accessoriesScrew-type terminal

solid with core end processing2x (0.5 ... 0.75 mm²)

solid without core end processing2x (1.0 ... 1.5 mm²)

finely stranded with core end processing2x (0.5 ... 1.5 mm²)

finely stranded without core end processing2x (1,0 ... 1,5 mm²)

for AWG cables2x (18 ... 14)

tightening torque of the screws in the bracket1 ... 1.2 N·m

tightening torque with screw-type terminals0.8 ... 0.9 N·m

Lamp

type of light sourceLED

color of the light sourcewhite

light intensity900 ... 1 400 mcd

Ambient conditions

during operation-25 ... +70 °C

during storage-40 ... +80 °C

environmental category during operation according to IEC 607213M6, 3S2, 3B2, 3K6 (with relative air humidity of 10 ... 95%, no condensation in operation permitted for all devices behind front panel)

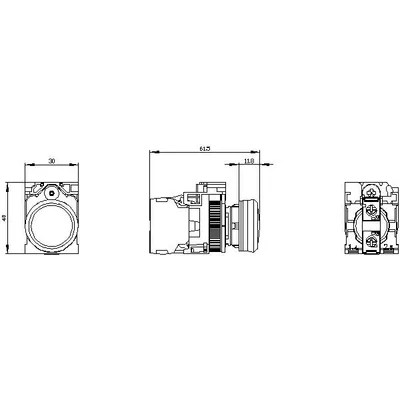

Installation/ mounting/ dimensions

fastening methodfront plate mounting

of modules and accessoriesFront plate mounting

height40 mm

width30 mm

shape of the installation openinground

mounting diameter22.3 mm

positive tolerance of installation diameter0.4 mm

mounting height11.8 mm

installation width29.5 mm

installation depth49.7 mm

Environmental footprint

Environmental Product Declaration(EPD)Yes

global warming potential [CO2 eq] total0.593 kg

global warming potential [CO2 eq] during manufacturing0.625 kg

global warming potential [CO2 eq] during operation0.235 kg

global warming potential [CO2 eq] after end of life-0.267 kg

Siemens eco profile (SEP)Siemens EcoTech

Approvals Certificates

global warming potential [CO2 eq] / during manufacturing0.625 kg

global warming potential [CO2 eq] / during operation0.235 kg

global warming potential [CO2 eq] / after end of life-0.267 kg

global warming potential [CO2 eq] / total0.593 kg
