How can I get a price quote for Siemens 3SU1150-0AB30-1FA0?

You can request a fast quote for Siemens 3SU1150-0AB30-1FA0 from Yılsa Engineering. Reference part number CEY-937FC780BD00. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Siemens 3SU1150-0AB30-1FA0 in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Siemens 3SU1150-0AB30-1FA0 genuine and new?

Yes. This Siemens product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Siemens 3SU1150-0AB30-1FA0?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

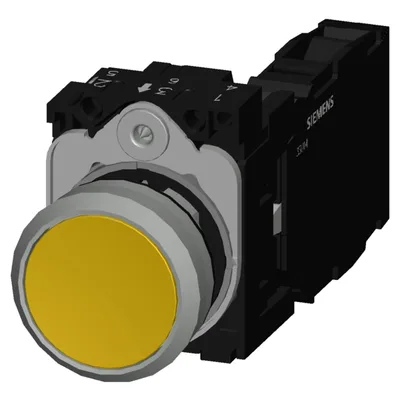

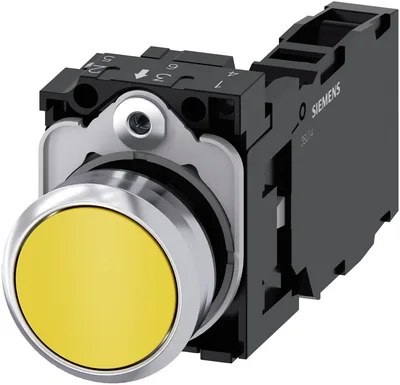

Siemens 3SU1150-0AB30-1FA0

Pushbutton, 22 mm, round, metal, shiny, yellow, pushbutton, flat, momentary contact type, with holder, 1 NO+1 NC, screw terminal

SiemensMFR # 3SU1150-0AB30-1FA0SKU # CEY-937FC780BD00

product brand nameSIRIUS ACT

product designationPushbuttons

design of the productComplete unit

product type designation3SU1

product lineMetal, shiny, 22 mm

of supplied contact module at position 13SU1400-1AA10-1FA0

Have questions?Chat on WhatsApp

About This Product

Pushbutton, 22 mm, round, metal, shiny, yellow, pushbutton, flat, momentary contact type, with holder, 1 NO+1 NC, screw terminal

Siemens 3SU1150-0AB30-1FA0

Genuine, certified Siemens product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

product brand nameSIRIUS ACT

product designationPushbuttons

design of the productComplete unit

product type designation3SU1

product lineMetal, shiny, 22 mm

of supplied contact module at position 13SU1400-1AA10-1FA0

of the supplied holder3SU1550-0AA10-0AA0

of the supplied actuator3SU1050-0AB30-0AA0

number of command points1

Actuator

design of the actuating elementButton, flat

principle of operation of the actuating elementmomentary contact type

product extension optional light sourceNo

color of the actuating elementyellow

material of the actuating elementplastic

shape of the actuating elementround

outer diameter of the actuating element29.45 mm

number of contact modules1

Front ring

product component front ringYes

design of the front ringStandard

material of the front ringMetal, high gloss

color of the front ringsilver

Holder

material of the holderPlastic

Display

number of LED modules0

General technical data

product function positive openingYes

product component light sourceNo

insulation voltage rated value500 V

degree of pollution3

type of voltage of the operating voltageAC/DC

surge voltage resistance rated value6 kV

protection class IPIP66, IP67, IP69(IP69K)

protection class IP of the terminalIP20, clamping screw tightened

degree of protection NEMA rating1, 2, 3, 3R, 4, 4X, 12, 13

according to IEC 60068-2-27sinusoidal half-wave 15 g / 11 ms

according to IEC 60068-2-610 ... 500 Hz: 5 g

operating frequency maximum3 600 1/h

mechanical service life (operating cycles) typical10 000 000

electrical endurance (operating cycles) typical10 000 000

thermal current10 A

reference code according to IEC 81346-2S

continuous current of the C characteristic MCB10 A; for a short-circuit current smaller than 400 A

continuous current of the quick DIAZED fuse link10 A

continuous current of the DIAZED fuse link gG10 A

Substance Prohibitance (day/month/year)10/01/2014

Net Weight0.096 kg

— at 50 Hz rated value5 ... 500 V

— at 60 Hz rated value5 ... 500 V

at DC rated value5 ... 500 V

Power Electronics

contact reliabilityOne maloperation per 100 million (17 V, 5 mA), one maloperation per 10 million (5 V, 1 mA)

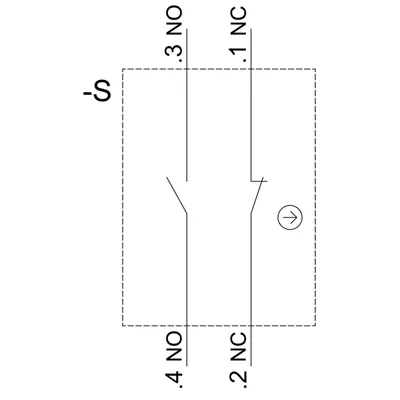

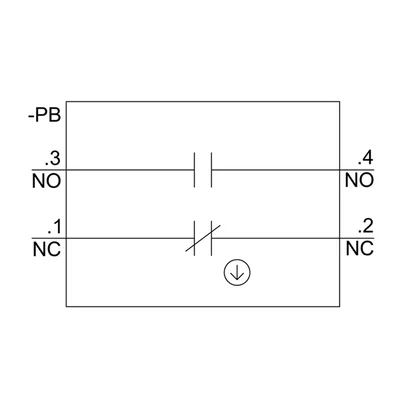

Auxiliary circuit

design of the contact of auxiliary contactsSilver alloy

number of NC contacts for auxiliary contacts1

number of NO contacts for auxiliary contacts1

Connections/ Terminals

type of electrical connectionscrew terminal

of modules and accessoriesScrew-type terminal

solid with core end processing2x (0.5 ... 0.75 mm²)

solid without core end processing2x (1.0 ... 1.5 mm²)

finely stranded with core end processing2x (0.5 ... 1.5 mm²)

finely stranded without core end processing2x (1,0 ... 1,5 mm²)

for AWG cables2x (18 ... 14)

tightening torque of the screws in the bracket1 ... 1.2 N·m

tightening torque with screw-type terminals0.8 ... 0.9 N·m

Safety related data

product function suitable for safety functionYes

test wear-related service life necessaryYes

with low demand rate according to SN 3192020 %

with high demand rate per NC contact according to SN 3192020 %

with high demand rate per NO contact according to SN 3192050 %

B10 value with high demand rate according to SN 3192010 000 000

failure rate [FIT] with low demand rate per NC contact according to SN 31920100 FIT

ISO 13849

device type according to ISO 13849-13

IEC 61508

safety device type according to IEC 61508-2Type A

T1 value for proof test interval or service life according to IEC 6150820 a

Ambient conditions

during operation-25 ... +70 °C

during storage-40 ... +80 °C

environmental category during operation according to IEC 607213M6, 3S2, 3B2, 3C3, 3K6 (with relative air humidity of 10 ... 95%, no condensation in operation permitted for all devices behind front panel)

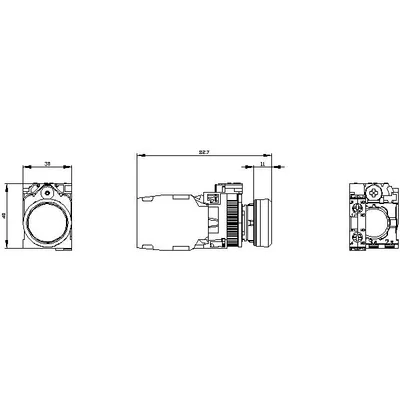

Installation/ mounting/ dimensions

fastening methodfront plate mounting

of modules and accessoriesFront plate mounting

height40 mm

width30 mm

shape of the installation openinground

mounting diameter22.3 mm

positive tolerance of installation diameter0.4 mm

mounting height11 mm

installation width29.5 mm

installation depth71.7 mm

Environmental footprint

Environmental Product Declaration(EPD)Yes

global warming potential [CO2 eq] total0.593 kg

global warming potential [CO2 eq] during manufacturing0.625 kg

global warming potential [CO2 eq] during operation0.235 kg

global warming potential [CO2 eq] after end of life-0.267 kg

Siemens eco profile (SEP)Siemens EcoTech

Approvals Certificates

global warming potential [CO2 eq] / during manufacturing0.625 kg

global warming potential [CO2 eq] / during operation0.235 kg

global warming potential [CO2 eq] / after end of life-0.267 kg

global warming potential [CO2 eq] / total0.593 kg

Accessories 8

Genuine accessories that can be used with the Siemens 3SU1150-0AB30-1FA0 motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.

Part no	Description	Compatible motors
3SU1900-0AC81-0AA0	Aksesuar · Commanding and signaling devices
3SU1900-0DB70-0AA0	Aksesuar · Commanding and signaling devices
3SU1900-0AC16-0AA0	Aksesuar · Commanding and signaling devices
3SU1900-0AN10-0AA0	Aksesuar · Commanding and signaling devices
3SU1900-0AG10-0AA0	Aksesuar · Commanding and signaling devices
3SU1400-1AA10-1FA0	Bileşen · Commanding and signaling devices
3SU1050-0AB30-0AA0	Bileşen · Commanding and signaling devices
3SU1550-0AA10-0AA0	Bileşen · Commanding and signaling devices
