How can I get a price quote for Siemens 3SU1062-2EC40-0AA0-ZY11?

You can request a fast quote for Siemens 3SU1062-2EC40-0AA0-ZY11 from Yılsa Engineering. Reference part number CEY-8EF3B038FF24. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Siemens 3SU1062-2EC40-0AA0-ZY11 in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Siemens 3SU1062-2EC40-0AA0-ZY11 genuine and new?

Yes. This Siemens product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Siemens 3SU1062-2EC40-0AA0-ZY11?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

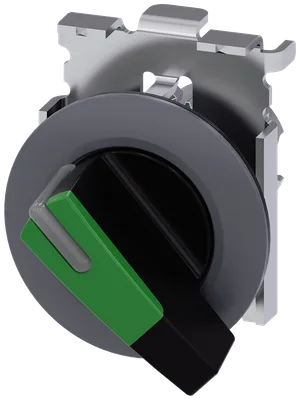

Siemens 3SU1062-2EC40-0AA0-ZY11

Selector switch, illuminable, 30 mm, round, Metal, matte, green, selector switch, long, front ring for flush installation, 2 switch positions O<I, momentary contact type, Actuating angle 45°, 10:30h/12h, with laser labeling, upper case

SiemensMFR # 3SU1062-2EC40-0AA0-ZY11SKU # CEY-8EF3B038FF24

product brand nameSIRIUS ACT

product designationSelector switches

design of the productActuating/signaling element

product type designation3SU1

product lineMetal, matt, flat, 30 mm

number of command points1

Have questions?Chat on WhatsApp

About This Product

Siemens 3SU1062-2EC40-0AA0-ZY11

Genuine, certified Siemens product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

product brand nameSIRIUS ACT

product designationSelector switches

design of the productActuating/signaling element

product type designation3SU1

product lineMetal, matt, flat, 30 mm

Enclosure

number of command points1

Actuator

design of the actuating elementselector, long

principle of operation of the actuating elementmomentary contact, 45° (10:30 h/12 h), return from center to left

light sourceYes

contact moduleYes

color of the actuating elementgreen

material of the actuating elementplastic

shape of the actuating elementHandle

outer diameter of the actuating element44.8 mm

marking of the actuating elementCustomized labeling, text in capital letters

number of switching positions2

clockwise45°

Front ring

product component front ringYes

design of the front ringFlat

material of the front ringMetal, matt

color of the front ringsand gray

General technical data

protection class IPIP66, IP67, IP69(IP69K)

degree of protection NEMA rating1, 2, 3, 3R, 4, 4X, 12, 13

according to IEC 60068-2-27sinusoidal half-wave 15 g / 11 ms

for railway applications according to EN 61373Category 1, Class B

according to IEC 60068-2-610 ... 500 Hz: 5 g

for railway applications according to EN 61373Category 1, Class B

operating frequency maximum1 800 1/h

mechanical service life (operating cycles) typical300 000

reference code according to IEC 81346-2S

Substance Prohibitance (day/month/year)10/01/2014

SVHC substance name2-(2H-benzotriazol-2-yl)-4-(1,1,3,3-tetramethylbutyl)phenol (UV-329) CAS-No. 3147-75-9

Net Weight0.055 kg

Safety related data

with low demand rate according to SN 3192020 %

with high demand rate per NC contact according to SN 3192020 %

with high demand rate per NO contact according to SN 3192050 %

B10 value with high demand rate according to SN 31920500 000

failure rate [FIT] with low demand rate per NC contact according to SN 31920100 FIT

IEC 61508

T1 value for proof test interval or service life according to IEC 6150820 a

Ambient conditions

during operation-25 ... +70 °C

during storage-40 ... +80 °C

environmental category during operation according to IEC 607213M6, 3S2, 3B2, 3C3, 3K6 (with relative air humidity of 10 ... 95%)

Installation/ mounting/ dimensions

height44.8 mm

width44.8 mm

shape of the installation openinground

mounting diameter30.5 mm

positive tolerance of installation diameter0.5 mm

mounting height22.1 mm

installation width44.8 mm

installation depth32.1 mm
