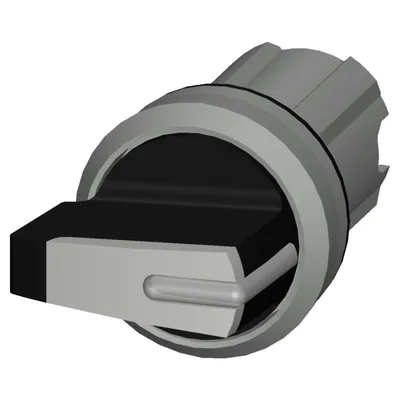

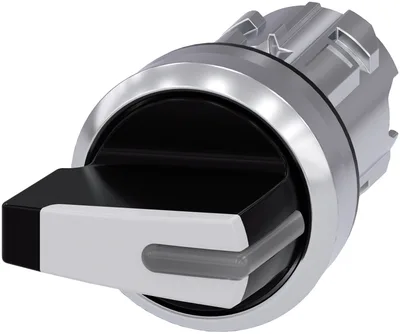

Siemens 3SU1052-2FL60-0AA0

Illuminable selector switch, 22 mm, round, metal shiny, white, Selector switch short, 3 switch positions I-O-II, latching, actuating angle 2x45°, 13:30h/15h/16:30h

SiemensMFR # 3SU1052-2FL60-0AA0SKU # CEY-8EF3B03900A3

product brand nameSIRIUS ACT

product designationSelector switches

design of the productActuating/signaling element

product type designation3SU1

product lineMetal, shiny, 22 mm

number of command points1

Have questions?Chat on WhatsApp

About This Product

Illuminable selector switch, 22 mm, round, metal shiny, white, Selector switch short, 3 switch positions I-O-II, latching, actuating angle 2x45°, 13:30h/15h/16:30h

Siemens 3SU1052-2FL60-0AA0

Genuine, certified Siemens product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

product brand nameSIRIUS ACT

product designationSelector switches

design of the productActuating/signaling element

product type designation3SU1

product lineMetal, shiny, 22 mm

Enclosure

number of command points1

Actuator

design of the actuating elementSelector, short, handle rotated by 90° to the right

principle of operation of the actuating elementlatching, 2x45° (10:30 h/12 h/13:30 h)

light sourceYes

contact moduleYes

color of the actuating elementwhite

material of the actuating elementplastic

shape of the actuating elementHandle

outer diameter of the actuating element32.3 mm

number of switching positions3

clockwise45°

anticlockwise45°

Front ring

product component front ringYes

design of the front ringstandard

material of the front ringMetal, high gloss

color of the front ringsilver

General technical data

protection class IPIP66, IP67, IP69(IP69K)

degree of protection NEMA rating1, 2, 3, 3R, 4, 4X, 12, 13

according to IEC 60068-2-27sinusoidal half-wave 15 g / 11 ms

according to IEC 60068-2-610 ... 500 Hz: 5 g

operating frequency maximum1 800 1/h

mechanical service life (operating cycles) typical1 000 000

reference code according to IEC 81346-2S

Substance Prohibitance (day/month/year)10/01/2014

SVHC substance name2-(2H-benzotriazol-2-yl)-4-(1,1,3,3-tetramethylbutyl)phenol (UV-329) CAS-No. 3147-75-9

Net Weight45.5 g

Safety related data

with low demand rate according to SN 3192020 %

with high demand rate per NC contact according to SN 3192020 %

with high demand rate per NO contact according to SN 3192050 %

B10 value with high demand rate according to SN 31920300 000

failure rate [FIT] with low demand rate per NC contact according to SN 31920100 FIT

IEC 61508

T1 value for proof test interval or service life according to IEC 6150820 a

Ambient conditions

during operation-25 ... +70 °C

during storage-40 ... +80 °C

environmental category during operation according to IEC 607213M6, 3S2, 3B2, 3C3, 3K6 (with relative air humidity of 10 ... 95%)

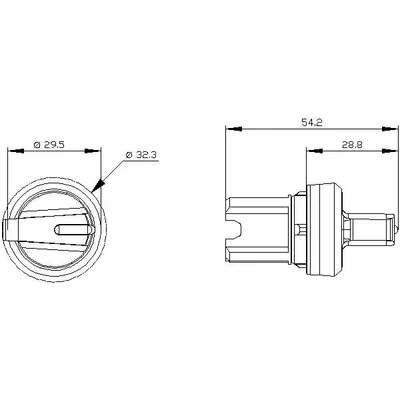

Installation/ mounting/ dimensions

height32.3 mm

width32.3 mm

shape of the installation openinground

mounting diameter22.3 mm

positive tolerance of installation diameter0.4 mm

mounting height28.8 mm

installation width32.3 mm

installation depth25.4 mm

Environmental footprint

Environmental Product Declaration(EPD)Yes

global warming potential [CO2 eq] total0.593 kg

global warming potential [CO2 eq] during manufacturing0.625 kg

global warming potential [CO2 eq] during operation0.235 kg

global warming potential [CO2 eq] after end of life-0.267 kg

Siemens eco profile (SEP)Siemens EcoTech

Approvals Certificates

global warming potential [CO2 eq] / during manufacturing0.625 kg

global warming potential [CO2 eq] / during operation0.235 kg

global warming potential [CO2 eq] / after end of life-0.267 kg

global warming potential [CO2 eq] / total0.593 kg
