Siemens 3SU1050-5BF01-0AA0

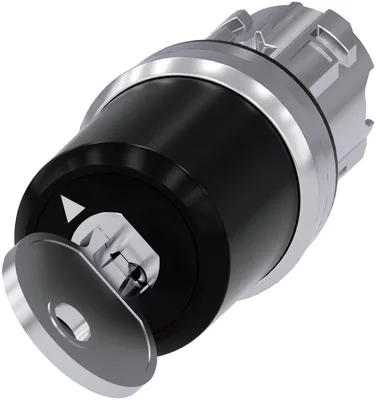

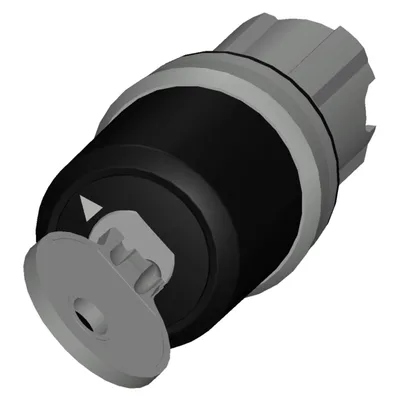

Siemens keyswitch, C, 22 mm, round, metal, shiny, lock number S-10-CG, with 2 keys, 2 switch positions O-I, latching, actuating angle 90°, 10:30h/13:30h, key removal O

SiemensMFR # 3SU1050-5BF01-0AA0SKU # CEY-8EF3B032612E

product brand nameSIRIUS ACT

product designationKey-operated switches

design of the productActuating/signaling element

product type designation3SU1

product lineMetal, shiny, 22 mm

product extension optional light sourceNo

Have questions?Chat on WhatsApp

About This Product

Siemens keyswitch, C, 22 mm, round, metal, shiny, lock number S-10-CG, with 2 keys, 2 switch positions O-I, latching, actuating angle 90°, 10:30h/13:30h, key removal O

Siemens 3SU1050-5BF01-0AA0

Genuine, certified Siemens product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

product brand nameSIRIUS ACT

product designationKey-operated switches

design of the productActuating/signaling element

product type designation3SU1

product lineMetal, shiny, 22 mm

manufacturer's article number of included key3SU1950-0FP80-0AA0

Actuator

principle of operation of the actuating elementlatching, 90° (10:30 h/13:30 h)

product extension optional light sourceNo

of the actuating elementsilver

material of the actuating elementmetal

shape of the actuating elementKey

outer diameter of the actuating element29.5 mm

number of switching positions2

switch position for key distractionO

clockwise90°

lock makeSiemens, C

key numberS-10-CG

Front ring

product component front ringYes

design of the front ringStandard

material of the front ringMetal, high gloss

color of the front ringsilver

General technical data

protection class IPIP66, IP67, IP69(IP69K)

protection class IP of the terminalIP20

degree of protection NEMA rating1, 2, 3, 3R, 4, 4X, 12, 13

according to IEC 60068-2-27sinusoidal half-wave 15 g / 11 ms

according to IEC 60068-2-610 ... 500 Hz: 5 g

operating frequency maximum1 800 1/h

mechanical service life (operating cycles) typical300 000

reference code according to IEC 81346-2S

Substance Prohibitance (day/month/year)10/01/2014

Net Weight153.5 g

Safety related data

with low demand rate according to SN 3192020 %

with high demand rate per NC contact according to SN 3192020 %

with high demand rate per NO contact according to SN 3192050 %

B10 value with high demand rate according to SN 31920100 000

failure rate [FIT] with low demand rate per NC contact according to SN 31920100 FIT

IEC 61508

T1 value for proof test interval or service life according to IEC 6150820 a

Ambient conditions

during operation-25 ... +70 °C

during storage-40 ... +80 °C

environmental category during operation according to IEC 607213M6, 3S2, 3B2, 3C3, 3K6 (with relative air humidity of 10 ... 95%)

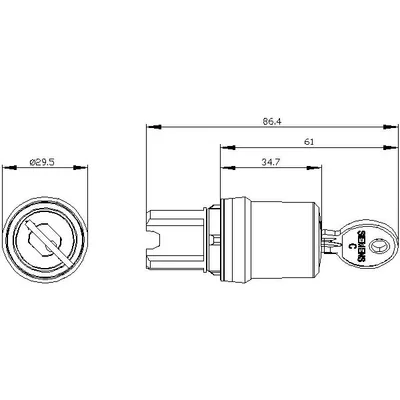

Installation/ mounting/ dimensions

height29.5 mm

width29.5 mm

shape of the installation openinground

mounting diameter22.3 mm

positive tolerance of installation diameter0.4 mm

mounting height61 mm

installation width29.5 mm

installation depth25.4 mm

Environmental footprint

Environmental Product Declaration(EPD)Yes

global warming potential [CO2 eq] total0.593 kg

global warming potential [CO2 eq] during manufacturing0.625 kg

global warming potential [CO2 eq] during operation0.235 kg

global warming potential [CO2 eq] after end of life-0.267 kg

Siemens eco profile (SEP)Siemens EcoTech

Approvals Certificates

global warming potential [CO2 eq] / during manufacturing0.625 kg

global warming potential [CO2 eq] / during operation0.235 kg

global warming potential [CO2 eq] / after end of life-0.267 kg

global warming potential [CO2 eq] / total0.593 kg

Accessories 9

Genuine accessories that can be used with the Siemens 3SU1050-5BF01-0AA0 motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.

Part no	Description	Compatible motors
3SU1900-0AC81-0AA0	Aksesuar · Commanding and signaling devices
3SU1950-0FP80-0AA0	Aksesuar · Commanding and signaling devices
3SU1900-0AG10-0AA0	Aksesuar · Commanding and signaling devices
3SU1900-0AN10-0AA0	Aksesuar · Commanding and signaling devices
3SU1900-0EB10-0AA0	Aksesuar · Commanding and signaling devices
3SU1900-0AC16-0AA0	Aksesuar · Commanding and signaling devices
3SU1550-0AA10-0AA0	Zorunlu ek ürün · Commanding and signaling devices
3SU1400-1AA10-1BA0	Seçmeli zorunlu ürün · Commanding and signaling devices
3SU1400-1AA10-1CA0	Seçmeli zorunlu ürün · Commanding and signaling devices
