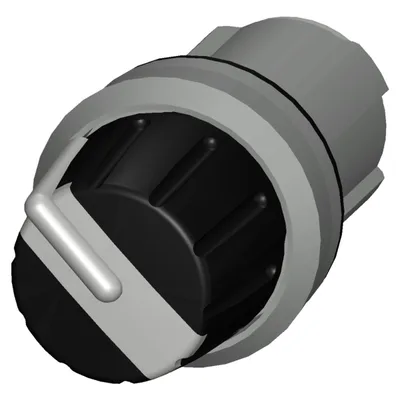

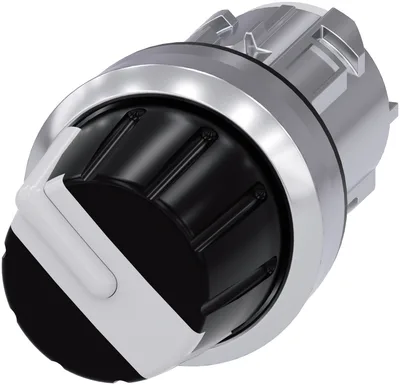

Siemens 3SU1050-2AS60-0AA0

Selector switch, 22 mm, round, metal, shiny, white, Rotary knob, 4 switch positions I-II-III-IV, latching, Actuating angle 4x90°, 3h/6h/9h/12h

SiemensMFR # 3SU1050-2AS60-0AA0SKU # CEY-8EF3B02CEF35

product brand nameSIRIUS ACT

product designationSelector switches

design of the productActuating/signaling element

product type designation3SU1

product lineMetal, shiny, 22 mm

number of command points1

Have questions?Chat on WhatsApp

About This Product

Selector switch, 22 mm, round, metal, shiny, white, Rotary knob, 4 switch positions I-II-III-IV, latching, Actuating angle 4x90°, 3h/6h/9h/12h

Siemens 3SU1050-2AS60-0AA0

Genuine, certified Siemens product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

product brand nameSIRIUS ACT

product designationSelector switches

design of the productActuating/signaling element

product type designation3SU1

product lineMetal, shiny, 22 mm

Enclosure

number of command points1

Actuator

design of the actuating elementRotary knob

principle of operation of the actuating elementLatching, 4x90° (3/6/9/12 o'clock)

light sourceNo

contact moduleYes

color of the actuating elementwhite

material of the actuating elementplastic

shape of the actuating elementButton

outer diameter of the actuating element29.5 mm

number of switching positions4

clockwise360°

anticlockwise360°

Front ring

product component front ringYes

design of the front ringstandard

material of the front ringMetal, high gloss

color of the front ringsilver

General technical data

protection class IPIP66, IP67, IP69(IP69K)

degree of protection NEMA rating1, 2, 3, 3R, 4, 4X, 12, 13

according to IEC 60068-2-27sinusoidal half-wave 15 g / 11 ms

according to IEC 60068-2-610 ... 500 Hz: 5 g

operating frequency maximum1 800 1/h

mechanical service life (operating cycles) typical300 000

reference code according to IEC 81346-2S

Substance Prohibitance (day/month/year)10/01/2014

SVHC substance nameMelamine CAS-No. 108-78-1

Net Weight55.5 g

Ambient conditions

during operation-25 ... +70 °C

during storage-40 ... +80 °C

environmental category during operation according to IEC 607213M6, 3S2, 3B2, 3C3, 3K6 (with relative air humidity of 10 ... 95%)

Installation/ mounting/ dimensions

height29.5 mm

width29.5 mm

shape of the installation openinground

mounting diameter22.3 mm

positive tolerance of installation diameter0.4 mm

mounting height28.8 mm

installation width29.5 mm

installation depth29.4 mm

Environmental footprint

Environmental Product Declaration(EPD)Yes

global warming potential [CO2 eq] total0.593 kg

global warming potential [CO2 eq] during manufacturing0.625 kg

global warming potential [CO2 eq] during operation0.235 kg

global warming potential [CO2 eq] after end of life-0.267 kg

Siemens eco profile (SEP)Siemens EcoTech

Approvals Certificates

global warming potential [CO2 eq] / during manufacturing0.625 kg

global warming potential [CO2 eq] / during operation0.235 kg

global warming potential [CO2 eq] / after end of life-0.267 kg

global warming potential [CO2 eq] / total0.593 kg

Accessories 3

Genuine accessories that can be used with the Siemens 3SU1050-2AS60-0AA0 motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.

Part no	Description	Compatible motors
3SU1550-0BA10-0AA0	Zorunlu ek ürün · Commanding and signaling devices
3SU1400-1AA10-1BA0	Seçmeli zorunlu ürün · Commanding and signaling devices
3SU1400-1AA10-1CA0	Seçmeli zorunlu ürün · Commanding and signaling devices
