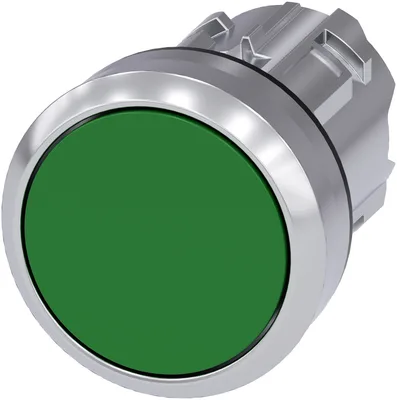

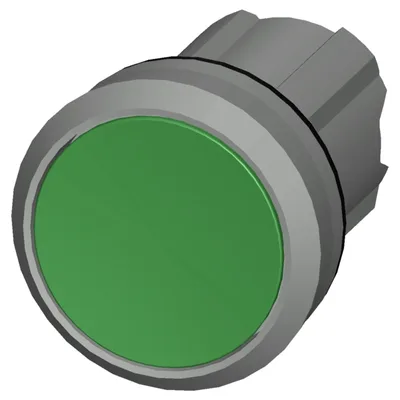

Siemens 3SU1050-0AB40-0AA0

Pushbutton, 22 mm, round, metal, shiny, green, pushbutton, flat momentary contact type

SiemensMFR # 3SU1050-0AB40-0AA0SKU # CEY-8EF3B0325D05

product brand nameSIRIUS ACT

product designationPushbuttons

design of the productActuating/signaling element

product type designation3SU1

product lineMetal, shiny, 22 mm

number of command points1

Have questions?Chat on WhatsApp

About This Product

Pushbutton, 22 mm, round, metal, shiny, green, pushbutton, flat momentary contact type

Siemens 3SU1050-0AB40-0AA0

Genuine, certified Siemens product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

product brand nameSIRIUS ACT

product designationPushbuttons

design of the productActuating/signaling element

product type designation3SU1

product lineMetal, shiny, 22 mm

Enclosure

number of command points1

Actuator

design of the actuating elementFlat button

principle of operation of the actuating elementmomentary contact type

light sourceNo

contact moduleYes

color of the actuating elementgreen

material of the actuating elementplastic

shape of the actuating elementround

outer diameter of the actuating element29.5 mm

Front ring

product component front ringYes

design of the front ringStandard

material of the front ringMetal, high gloss

color of the front ringsilver

General technical data

protection class IPIP66, IP67, IP69(IP69K)

degree of protection NEMA rating1, 2, 3, 3R, 4, 4X, 12, 13

according to IEC 60068-2-27sinusoidal half-wave 15 g / 11 ms

according to IEC 60068-2-610 ... 500 Hz: 5 g

operating frequency maximum3 600 1/h

mechanical service life (operating cycles) typical10 000 000

reference code according to IEC 81346-2S

Substance Prohibitance (day/month/year)10/01/2014

Net Weight36 g

Safety related data

with low demand rate according to SN 3192020 %

with high demand rate per NC contact according to SN 3192020 %

with high demand rate per NO contact according to SN 3192050 %

B10 value with high demand rate according to SN 3192010 000 000

failure rate [FIT] with low demand rate per NC contact according to SN 31920100 FIT

IEC 61508

T1 value for proof test interval or service life according to IEC 6150820 a

Ambient conditions

during operation-25 ... +70 °C

during storage-40 ... +80 °C

environmental category during operation according to IEC 607213M6, 3S2, 3B2, 3C3, 3K6 (with relative air humidity of 10 ... 95%)

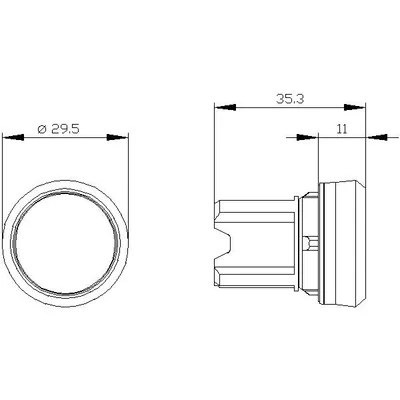

Installation/ mounting/ dimensions

height29.5 mm

width29.5 mm

shape of the installation openinground

mounting diameter22.3 mm

positive tolerance of installation diameter0.4 mm

mounting height11 mm

installation width29.5 mm

installation depth24.3 mm

Environmental footprint

Environmental Product Declaration(EPD)Yes

global warming potential [CO2 eq] total0.593 kg

global warming potential [CO2 eq] during manufacturing0.625 kg

global warming potential [CO2 eq] during operation0.235 kg

global warming potential [CO2 eq] after end of life-0.267 kg

Siemens eco profile (SEP)Siemens EcoTech

Approvals Certificates

global warming potential [CO2 eq] / during manufacturing0.625 kg

global warming potential [CO2 eq] / during operation0.235 kg

global warming potential [CO2 eq] / after end of life-0.267 kg

global warming potential [CO2 eq] / total0.593 kg
