How can I get a price quote for Siemens 3SU1000-4BC01-0AA0?

You can request a fast quote for Siemens 3SU1000-4BC01-0AA0 from Yılsa Engineering. Reference part number CEY-8EF3B0326141. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Siemens 3SU1000-4BC01-0AA0 in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Siemens 3SU1000-4BC01-0AA0 genuine and new?

Yes. This Siemens product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Siemens 3SU1000-4BC01-0AA0?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

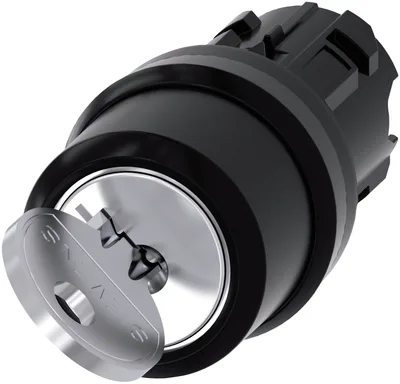

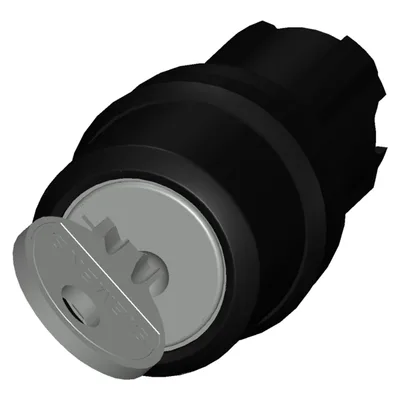

Siemens 3SU1000-4BC01-0AA0

RONIS key-operated switch, 22 mm, round, plastic, lock number SB30, with 2 keys, 2 switch positions O<I, momentary contact type, Actuating angle 45°, 10:30h/12h, key removal O, possible special locks: SB31, 421, 455

SiemensMFR # 3SU1000-4BC01-0AA0SKU # CEY-8EF3B0326141

product brand nameSIRIUS ACT

product designationKey-operated switches

design of the productActuating/signaling element

product type designation3SU1

product linePlastic, black, 22 mm

product extension optional light sourceNo

Have questions?Chat on WhatsApp

About This Product

Siemens 3SU1000-4BC01-0AA0

Genuine, certified Siemens product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

product brand nameSIRIUS ACT

product designationKey-operated switches

design of the productActuating/signaling element

product type designation3SU1

product linePlastic, black, 22 mm

manufacturer's article number of included key3SU1950-0FB80-0AA0

Actuator

principle of operation of the actuating elementmomentary contact, 45° (10:30 h/12 h), return from center to left

product extension optional light sourceNo

of the actuating elementsilver

material of the actuating elementmetal

shape of the actuating elementKey

outer diameter of the actuating element29.5 mm

number of switching positions2

switch position for key distractionO

clockwise45°

lock makeRONIS

key numberSB30

Front ring

product component front ringYes

design of the front ringStandard

material of the front ringplastic

color of the front ringblack

General technical data

protection class IPIP66, IP67, IP69(IP69K)

protection class IP of the terminalIP20

degree of protection NEMA rating1, 2, 3, 3R, 4, 4X, 12, 13

according to IEC 60068-2-27sinusoidal half-wave 15 g / 11 ms

for railway applications according to EN 61373Category 1, Class B

according to IEC 60068-2-610 ... 500 Hz: 5 g

for railway applications according to EN 61373Category 1, Class B

operating frequency maximum1 800 1/h

mechanical service life (operating cycles) typical1 000 000

reference code according to IEC 81346-2S

Substance Prohibitance (day/month/year)10/01/2014

Net Weight51 g

Ambient conditions

during operation-25 ... +70 °C

during storage-40 ... +80 °C

environmental category during operation according to IEC 607213M6, 3S2, 3B2, 3C3, 3K6 (with relative air humidity of 10 ... 95%)

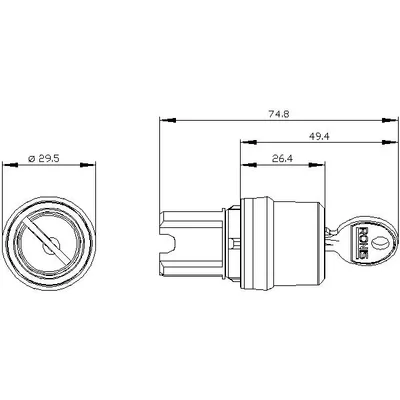

Installation/ mounting/ dimensions

height29.5 mm

width29.5 mm

shape of the installation openinground

mounting diameter22.3 mm

positive tolerance of installation diameter0.4 mm

mounting height49.4 mm

installation width29.5 mm

installation depth25.4 mm

Environmental footprint

Environmental Product Declaration(EPD)Yes

global warming potential [CO2 eq] total0.787 kg

global warming potential [CO2 eq] during manufacturing0.566 kg

global warming potential [CO2 eq] during operation0.235 kg

global warming potential [CO2 eq] after end of life-0.015 kg

Siemens eco profile (SEP)Siemens EcoTech

Approvals Certificates

global warming potential [CO2 eq] / during manufacturing0.566 kg

global warming potential [CO2 eq] / during operation0.235 kg

global warming potential [CO2 eq] / after end of life-0.0145 kg

global warming potential [CO2 eq] / total0.787 kg

Accessories 9

Genuine accessories that can be used with the Siemens 3SU1000-4BC01-0AA0 motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.

Part no	Description	Compatible motors
3SU1900-0AC81-0AA0	Aksesuar · Commanding and signaling devices
3SU1900-0AG10-0AA0	Aksesuar · Commanding and signaling devices
3SU1900-0AN10-0AA0	Aksesuar · Commanding and signaling devices
3SU1900-0AC16-0AA0	Aksesuar · Commanding and signaling devices
3SU1900-0EB10-0AA0	Aksesuar · Commanding and signaling devices
3SU1950-0FB80-0AA0	Aksesuar · Commanding and signaling devices
3SU1500-0AA10-0AA0	Zorunlu ek ürün · Commanding and signaling devices
3SU1400-1AA10-1BA0	Seçmeli zorunlu ürün · Commanding and signaling devices
3SU1400-1AA10-1CA0	Seçmeli zorunlu ürün · Commanding and signaling devices
