How can I get a price quote for Siemens 3SU1000-3FB11-0AA0?

You can request a fast quote for Siemens 3SU1000-3FB11-0AA0 from Yılsa Engineering. Reference part number YLS6F4NLRNWOAS3. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Siemens 3SU1000-3FB11-0AA0 in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Siemens 3SU1000-3FB11-0AA0 genuine and new?

Yes. This Siemens product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Siemens 3SU1000-3FB11-0AA0?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

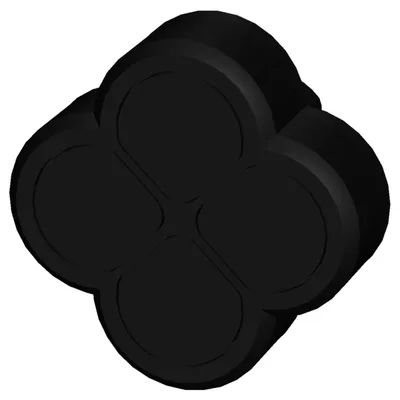

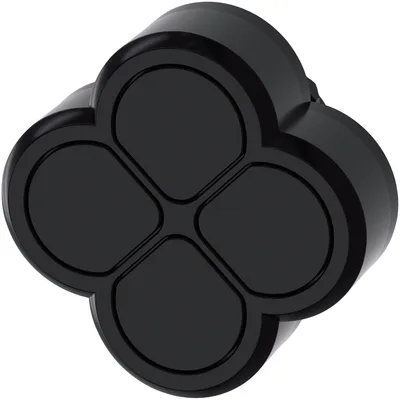

Siemens 3SU1000-3FB11-0AA0

Quadruple pushbutton, 22 mm, round, plastic, black, buttons, flat

SiemensMFR # 3SU1000-3FB11-0AA0SKU # YLS6F4NLRNWOAS3

product brand nameSIRIUS ACT

product designationquadruple pushbutton

design of the productActuating/signaling element

product type designation3SU1

product linePlastic, black, 22 mm

number of command points4

Have questions?Chat on WhatsApp

About This Product

Quadruple pushbutton, 22 mm, round, plastic, black, buttons, flat

Siemens 3SU1000-3FB11-0AA0

Genuine, certified Siemens product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

product brand nameSIRIUS ACT

product designationquadruple pushbutton

design of the productActuating/signaling element

product type designation3SU1

product linePlastic, black, 22 mm

Enclosure

number of command points4

Actuator

design of the actuating elementwithout mechanical interlock

principle of operation of the actuating elementmomentary contact type

light sourceNo

contact moduleYes

color of the actuating elementblack

material of the actuating elementplastic

shape of the actuating elementClover-leaf

outer diameter of the actuating element57.6 mm

Front ring

product component front ringYes

design of the front ringstandard

material of the front ringplastic

color of the front ringblack

General technical data

protection class IPIP65, IP66

degree of protection NEMA rating1, 2, 3, 3R, 4, 4X

according to IEC 60068-2-27sinusoidal half-wave 15 g / 11 ms

according to IEC 60068-2-610 ... 500 Hz: 5 g

operating frequency maximum2 400 1/h

typical200 000

reference code according to IEC 81346-2S

Substance Prohibitance (day/month/year)10/01/2014

Net Weight44 g

Safety related data

with low demand rate according to SN 3192020 %

with high demand rate according to SN 3192020 %

B10 value with high demand rate according to SN 31920100 000

failure rate [FIT] with low demand rate according to SN 31920100 FIT

IEC 61508

T1 value for proof test interval or service life according to IEC 6150820 a

Ambient conditions

during operation-25 ... +70 °C

during storage-40 ... +80 °C

environmental category during operation according to IEC 607213M6, 3S2, 3B2, 3C3, 3K6 (with relative air humidity of 10 ... 95%)

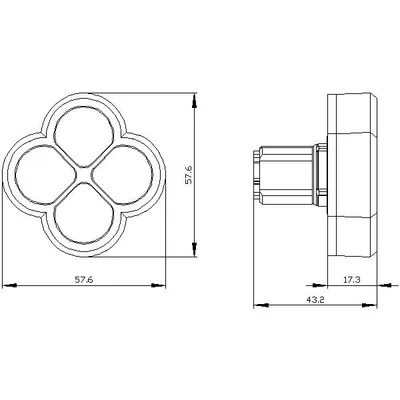

Installation/ mounting/ dimensions

height57.6 mm

width57.6 mm

shape of the installation openinground

mounting diameter22.3 mm

positive tolerance of installation diameter0.4 mm

mounting height18 mm

installation width57.6 mm

installation depth25.9 mm

Environmental footprint

Environmental Product Declaration(EPD)Yes

global warming potential [CO2 eq] total0.787 kg

global warming potential [CO2 eq] during manufacturing0.566 kg

global warming potential [CO2 eq] during operation0.235 kg

global warming potential [CO2 eq] after end of life-0.015 kg

Siemens eco profile (SEP)Siemens EcoTech

Approvals Certificates

global warming potential [CO2 eq] / during manufacturing0.566 kg

global warming potential [CO2 eq] / during operation0.235 kg

global warming potential [CO2 eq] / after end of life-0.0145 kg

global warming potential [CO2 eq] / total0.787 kg

Product information

EAN4047621067711

UPC804766960338

Product familyActuators and indicators, 22 mm, round, plastic, black

Life cycle statusActive

Commodity code85389099

Delivery and logistics

Country of originChina

Standard delivery time3 Day/Days

ReturnableYes

Net weight0.044 Kg

Packaging dimensions (L x W x H)70 x 60 x 60 MM

Standard package quantity1 Piece

Minimum order quantity1

Dangerous goodsNo

Export control regulationsAL : N / ECCN : N

Environment and compliance

RoHS conformitySince: 01-10-14

WEEE category5

REACH informationReach Information

Siemens catalog

Product group5452

Catalog IDCC-IC10

Group codeR711

Product classStraightforward, can be reused over the short term

Accessories 3

Genuine accessories that can be used with the Siemens 3SU1000-3FB11-0AA0 motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.

Part no	Description	Compatible motors
3SU1500-0BA10-0AA0	Zorunlu ek ürün · Commanding and signaling devices
3SU1400-1AA10-1BA0	Seçmeli zorunlu ürün · Commanding and signaling devices
3SU1400-1AA10-1CA0	Seçmeli zorunlu ürün · Commanding and signaling devices
