How can I get a price quote for Siemens 3SU1000-1HB20-0AA0?

You can request a fast quote for Siemens 3SU1000-1HB20-0AA0 from Yılsa Engineering. Reference part number CEY-8EF3B0325D2B. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Siemens 3SU1000-1HB20-0AA0 in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Siemens 3SU1000-1HB20-0AA0 genuine and new?

Yes. This Siemens product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Siemens 3SU1000-1HB20-0AA0?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

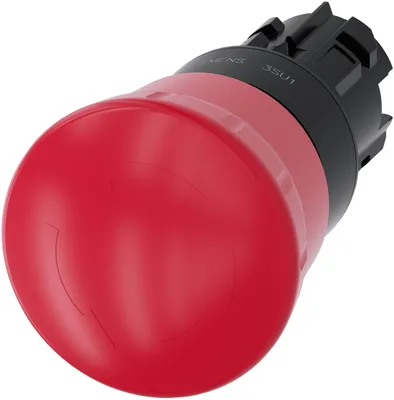

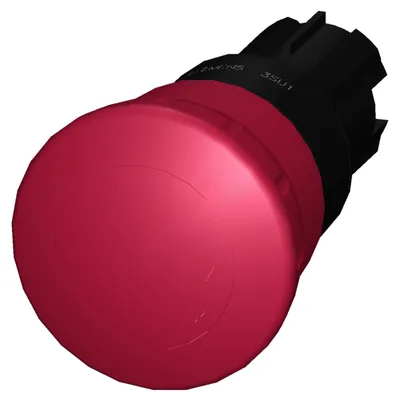

Siemens 3SU1000-1HB20-0AA0

EMERGENCY STOP mushroom pushbutton, 22 mm, round, plastic, red, 40 mm, positive latching, acc. to EN ISO 13850, rotate-to-unlatch

SiemensMFR # 3SU1000-1HB20-0AA0SKU # CEY-8EF3B0325D2B

product brand nameSIRIUS ACT

product designationEMERGENCY STOP mushroom pushbuttons

design of the productActuating/signaling element

product type designation3SU1

product linePlastic, black, 22 mm

number of command points1

Have questions?Chat on WhatsApp

About This Product

EMERGENCY STOP mushroom pushbutton, 22 mm, round, plastic, red, 40 mm, positive latching, acc. to EN ISO 13850, rotate-to-unlatch

Siemens 3SU1000-1HB20-0AA0

Genuine, certified Siemens product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

product brand nameSIRIUS ACT

product designationEMERGENCY STOP mushroom pushbuttons

design of the productActuating/signaling element

product type designation3SU1

product linePlastic, black, 22 mm

Enclosure

number of command points1

Actuator

design of the actuating elementpositive latching

principle of operation of the actuating elementlatching

light sourceNo

contact moduleYes

of the actuating elementred

material of the actuating elementplastic

shape of the actuating elementround

outer diameter of the actuating element40 mm

type of unlocking devicerotate-to-unlatch mechanism

number of switching positions2

Front ring

product component front ringNo

General technical data

positive openingYes

EMERGENCY OFF functionYes

EMERGENCY STOP functionYes

protection class IPIP66, IP67, IP69(IP69K)

degree of protection NEMA rating1, 2, 3, 3R, 4, 4X, 12, 13

according to IEC 60068-2-27sinusoidal half-wave 15 g / 11 ms

for railway applications according to EN 61373Category 1, Class B

according to IEC 60068-2-610 ... 500 Hz: 5 g

for railway applications according to EN 61373Category 1, Class B

operating frequency maximum600 1/h

mechanical service life (operating cycles) typical300 000

reference code according to IEC 81346-2S

Substance Prohibitance (day/month/year)10/01/2014

Net Weight45 g

Safety related data

product function suitable for safety functionYes

service life maximum20 a

test wear-related service life necessaryYes

with low demand rate according to SN 3192020 %

with high demand rate per NC contact according to SN 3192020 %

with high demand rate per NO contact according to SN 3192050 %

B10 value with high demand rate according to SN 31920100 000

failure rate [FIT] with low demand rate per NC contact according to SN 31920100 FIT

ISO 13849

device type according to ISO 13849-13

IEC 61508

safety device type according to IEC 61508-2Type A

T1 value for proof test interval or service life according to IEC 6150820 a

Ambient conditions

during operation-25 ... +70 °C

during storage-40 ... +80 °C

environmental category during operation according to IEC 607213M6, 3S2, 3B2, 3C3, 3K6 (with relative air humidity of 10 ... 95%)

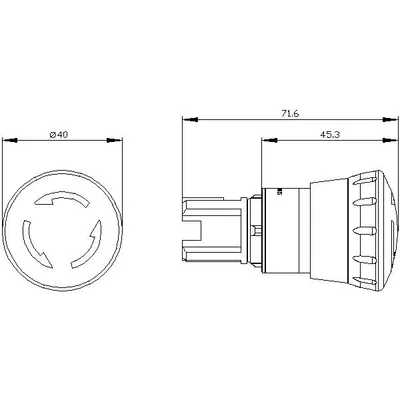

Installation/ mounting/ dimensions

shape of the installation openinground

mounting diameter22.3 mm

positive tolerance of installation diameter0.4 mm

mounting height45.3 mm

installation width40 mm

installation depth26.3 mm

Environmental footprint

Environmental Product Declaration(EPD)Yes

global warming potential [CO2 eq] total0.787 kg

global warming potential [CO2 eq] during manufacturing0.566 kg

global warming potential [CO2 eq] during operation0.235 kg

global warming potential [CO2 eq] after end of life-0.015 kg

Siemens eco profile (SEP)Siemens EcoTech

Approvals Certificates

global warming potential [CO2 eq] / during manufacturing0.566 kg

global warming potential [CO2 eq] / during operation0.235 kg

global warming potential [CO2 eq] / after end of life-0.0145 kg

global warming potential [CO2 eq] / total0.787 kg

Accessories 7

Genuine accessories that can be used with the Siemens 3SU1000-1HB20-0AA0 motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.

Part no	Description	Compatible motors
3SU1900-0BC31-0AT0	Aksesuar · Commanding and signaling devices
3SU1900-0DF70-0AA0	Aksesuar · Commanding and signaling devices
3SU1900-0BC31-0NB0	Aksesuar · Commanding and signaling devices
3SU1900-0BA31-0AA0	Aksesuar · Commanding and signaling devices
3SU1500-0AA10-0AA0	Zorunlu ek ürün · Commanding and signaling devices
3SU1400-1AA10-1BA0	Seçmeli zorunlu ürün · Commanding and signaling devices
3SU1400-1AA10-1CA0	Seçmeli zorunlu ürün · Commanding and signaling devices
