How can I get a price quote for Siemens 3SK2511-1FA10?

You can request a fast quote for Siemens 3SK2511-1FA10 from Yılsa Engineering. Reference part number YLSD7VEVJHQP3VU. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Siemens 3SK2511-1FA10 in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Siemens 3SK2511-1FA10 genuine and new?

Yes. This Siemens product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Siemens 3SK2511-1FA10?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

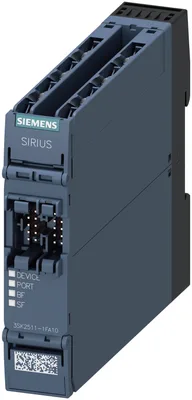

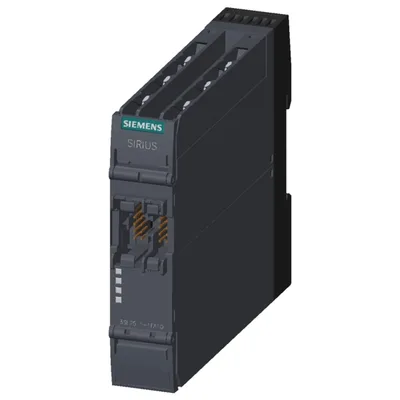

Siemens 3SK2511-1FA10

SIRIUS, interface module PROFINET interface for safety relay 3SK2 from E05 and 3RK312/3RK313 from E04 PROFINET IO interface 100 Mbps, RJ45 22.5 mm width screw terminal parameter assignment via Safety ES without connection cable

SiemensMFR # 3SK2511-1FA10SKU # YLSD7VEVJHQP3VU

product brand nameSIRIUS

product categorySafety relay

product designationInterface module

design of the productPN interface

certificate of suitability UL approvalYes

configuration software requiredYes; Safety ES V1.0 SP3 and higher

Have questions?Chat on WhatsApp

About This Product

Siemens 3SK2511-1FA10

Genuine, certified Siemens product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

product brand nameSIRIUS

product categorySafety relay

product designationInterface module

design of the productPN interface

General technical data

certificate of suitability UL approvalYes

configuration software requiredYes; Safety ES V1.0 SP3 and higher

insulation voltage rated value50 V

degree of pollution3

surge voltage resistance rated value800 V

consumed current for rated value of supply voltage0.04 A

protection class IP of the enclosureIP20

shock resistance15 g / 11 ms

according to IEC 60068-2-65 ... 500 Hz: 0.75 mm

reference code according to IEC 81346-2K

Substance Prohibitance (day/month/year)05/01/2012

SVHC substance nameLead CAS-No. 7439-92-1 Lead monoxide (lead oxide) CAS-No. 1317-36-8 2-methyl-1-(4-methylthiophenyl)-2-morpholinopropan-1-one CAS-No. 71868-10-5 Melamine CAS-No. 108-78-1 4,4'-isopropylidenediphenol (Bisphenol A, BPA) CAS-No. 80-05-7

Net Weight0.143 kg

Ambient conditions

installation altitude at height above sea level maximum4 000 m

relative humidity during operation10 ... 95 %

air pressure according to SN 3120590 ... 106 kPa

Electromagnetic compatibility

EMC emitted interference according to IEC 60947-1class A

EMC immunity according to IEC 60947-1Class A

due to burst according to IEC 61000-4-42 kV (power ports)

due to conductor-earth surge according to IEC 61000-4-5Test Level 0.5 KV / 1 KV

electrostatic discharge according to IEC 61000-4-24 kV contact discharge / 8 kV air discharge

Electrical Safety

touch protection against electrical shockfinger-safe

operating power rated value1 W

Communication/ Protocol

PROFIBUS DP protocolNo

PROFINET IO protocolYes

PROFIsafe protocolNo

LLDPYes

Address Resolution Protocol (ARP)Yes

SNMPYes

HTTPSNo

NTPNo

Media Redundancy Protocol (MRP)No

Ethernet interfaceYes

Fast Ethernet interfaceNo

number of interfaces according to PROFINET1

at the Ethernet interface AutocrossoverYes

at the Ethernet interface AutonegotiationYes

at the Ethernet interface AutosensingYes

supports PROFIenergy measured valuesNo

supports PROFIenergy shutdownNo

interface design 1 RJ45 (Ethernet)Yes

protocol at the 1st interface media redundancy protocolNo

product function at the 1st interface PROFINET IO deviceYes

number of ports at the 1st interface1

prioritized startupNo

isochronous modeNo

supports PROFIenergyNo

IRTNo

MRPNo

LLDPYes

SNMPYes

TCP/IPNo

transmission mode for Industrial EthernetPROFINET with 100 Mbps full duplex (100BASE-TX)

PROFINET conformity classB

network load class according to PROFINETI

specification for Security Level 1 test according to PROFINETV1.1.6

for inputs with PROFINET IO64 bit

for outputs with PROFINET IO64 bit

data volume as user data per station maximum8 byte

Control circuit/ Control

type of voltageDC

control supply voltage rated value24 V

inrush current peak at 24 V4 A

duration of inrush current peak at 24 V1 ms

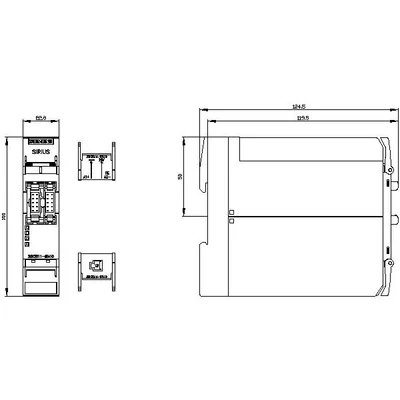

Installation/ mounting/ dimensions

mounting positionany

fastening methodSnap-mounted to DIN rail or screw-mounted with additional push-in lug

height100 mm

width22.5 mm

depth124.5 mm

weight without packaging148 kg

Connections/ Terminals

product function removable terminalYes

solid1x (0.5 ... 2.5 mm²), 2x (1.0 ... 1.5 mm²)

finely stranded with core end processing1x (0.5 ... 2.5 mm²), 2x (0.5 ... 1.0 mm²)

for AWG cables solid1x (20 ... 14), 2x (18 ... 16)

for AWG cables stranded1x (20 ... 14), 2x (18 ... 16)

— solid1x (0.5 ... 4 mm²), 2x (0.5 ... 2.5 mm²)

— finely stranded with core end processing1x (0.5 ... 2.5 mm²), 2x (0.5 ... 1.5 mm²)

for AWG cables for auxiliary contacts2x (20 ... 14)

Accessories 5

Genuine accessories that can be used with the Siemens 3SK2511-1FA10 motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.

Part no	Description	Compatible motors
3ZY1210-2AA00	Aksesuar · Device connector
3RT2900-1SB20	Aksesuar · Miscellaneous accessories · labeling plates
3ZY1141-1BA00	Yedek parça · Removable terminals
3ZY1450-1AB00	Yedek parça · Further accessories
3UF7930-0AA00-0	Seçmeli zorunlu ürün · Connecting cable
