How can I get a price quote for Siemens 3SK1912-3SB40?

You can request a fast quote for Siemens 3SK1912-3SB40 from Yılsa Engineering. Reference part number YLSRQVJRRLBPFJU. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Siemens 3SK1912-3SB40 in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Siemens 3SK1912-3SB40 genuine and new?

Yes. This Siemens product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Siemens 3SK1912-3SB40?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

Siemens 3SK1912-3SB40

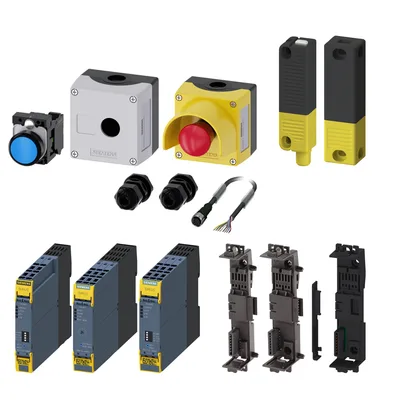

SIRIUS safety engineering Advanced package consisting of 3SU1100-0AB50-3BA0, 3SU1801-0AA00-0AB1, 3SU1801-0NB00-2AC2, 2 x 3SU1900-0HG10-0AA0, 3SK1122-2AB40, 3SK1220-2AB40, 3RM1107-2AA04, 3ZY1212-1BA00, 3ZY1212-2BA00, 3ZY1212-2FA00, 3SE6315-0BB01, 3SE6310-0BC01, 3SX5601-2GA03.

SiemensMFR # 3SK1912-3SB40SKU # YLSRQVJRRLBPFJU

product brand nameSIRIUS

product categorySafety engineering

product designationAdvanced Bundle

product type designation3SK1

light barrier monitoringNo

position switch monitoringYes

Have questions?Chat on WhatsApp

About This Product

Siemens 3SK1912-3SB40

Genuine, certified Siemens product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

product brand nameSIRIUS

product categorySafety engineering

product designationAdvanced Bundle

product type designation3SK1

Product Function

light barrier monitoringNo

suitability for operation device connector 3ZY12Yes

position switch monitoringYes

EMERGENCY-OFF circuit monitoringYes

valve monitoringNo

opto-electronic protection device monitoringNo

tactile sensor monitoringNo

magnetically operated switch monitoringNo

proximity switch monitoringNo

safety-related circuitsYes

General technical data

certificate of suitability UL approvalYes

product feature protective coating on printed-circuit boardNo

protection class IP of the enclosureIP20

Substance Prohibitance (day/month/year)11/05/2012

SVHC substance nameLead CAS-No. 7439-92-1 Lead monoxide (lead oxide) CAS-No. 1317-36-8 2-methyl-1-(4-methylthiophenyl)-2-morpholinopropan-1-one CAS-No. 71868-10-5 Melamine CAS-No. 108-78-1 6,6'-di-tert-butyl-2,2'-methylenedi-p-cresol CAS-No. 119-47-1

Net Weight1.968 kg

Ambient conditions

installation altitude at height above sea level maximum4 000 m

noteDerating, see Product Notification 109792701

Safety related data

product function suitable for safety functionYes

IEC 62061

SIL Claim Limit (subsystem) according to EN 620613

according to IEC 62061SIL 3

ISO 13849

category according to EN ISO 13849-14

according to ISO 13849-1PL e

IEC 61508

according to IEC 615083

safety device type according to IEC 61508-2Type A

according to IEC 615081

Electrical Safety

touch protection against electrical shockfinger-safe

Inputs

feedback inputYes

start inputYes

Installation/ mounting/ dimensions

height240 mm

width160 mm

depth320 mm

Connections/ Terminals

type of electrical connectionscrew-type terminals, spring-loaded terminals

type of electrical connection plug-in socketNo

Product information

EAN4047621073668

Product familyOrdering Data Overview

Life cycle statusActive

Commodity code85371098

Delivery and logistics

Country of originGermany

Standard delivery time5 Day/Days

ReturnableYes

Net weight1.968 Kg

Packaging dimensions (L x W x H)330 x 247 x 176 MM

Standard package quantity1 Piece

Minimum order quantity1

Dangerous goodsNo

Export control regulationsAL : N / ECCN : 9N9999

Environment and compliance

RoHS conformitySince: 05-11-12

WEEE category5

REACH informationLead CAS-No. 7439-92-1 > 0,1 % (w / w)

SCIP number0210e8af-eda8-4670-bec6-10e7e8a5c14a

Siemens catalog

Product group3761

Catalog IDCC-IC10

Group codeR711

Product classStraightforward, can be reused over the short term

Accessories 16

Genuine accessories that can be used with the Siemens 3SK1912-3SB40 motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.

Part no	Description	Compatible motors
3RA2908-1A	Aksesuar · Miscellaneous accessories · screwdrivers
3RT2900-1SB20	Aksesuar · Miscellaneous accessories · labeling plates
3ZY1321-2AA00	Aksesuar · Further accessories
3RM1107-2AA04	Bileşen · Motor starter · motor starter
3ZY1212-2FA00	Bileşen · Device connector
3SK1122-2AB40	Bileşen · Safety relays
3SU1100-0AB50-3BA0	Bileşen · Commanding and signaling devices
3SU1801-0AA00-0AB1	Bileşen · Commanding and signaling devices
3SU1801-0NB00-2AC2	Bileşen · Commanding and signaling devices
3SU1900-0HG10-0AA0	Bileşen · Commanding and signaling devices
3SE6310-0BC01	Bileşen · Non-contact safety switch
3SX5601-2GA03	Bileşen
3ZY1212-1BA00	Bileşen · Device connector
3SK1220-2AB40	Bileşen · Safety relays
3ZY1212-2BA00	Bileşen · Device connector
3SE6315-0BB01	Bileşen · Non-contact safety switch
