How can I get a price quote for Siemens 3SK1112-2BB40?

You can request a fast quote for Siemens 3SK1112-2BB40 from Yılsa Engineering. Reference part number CEY-8EF3B02F2619. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Siemens 3SK1112-2BB40 in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Siemens 3SK1112-2BB40 genuine and new?

Yes. This Siemens product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Siemens 3SK1112-2BB40?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

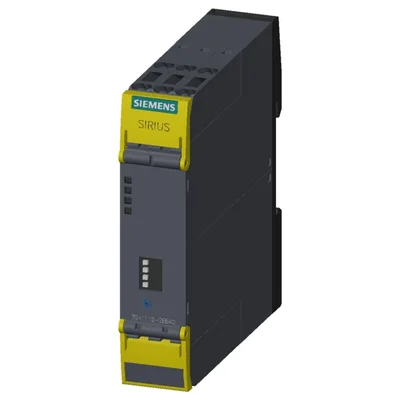

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

Siemens 3SK1112-2BB40

SIRIUS safety relay Basic unit Standard series electronic enabling circuits 2 enabling circuits plus 1 signaling circuit Us = 24 V DC Spring-type terminal (push-in)

SiemensMFR # 3SK1112-2BB40SKU # CEY-8EF3B02F2619

product brand nameSIRIUS

product categorySafety relays

product designationsafety relays

design of the productSolid-state enabling circuits

product type designation3SK1

product lineStandard basic unit

Have questions?Chat on WhatsApp

About This Product

SIRIUS safety relay Basic unit Standard series electronic enabling circuits 2 enabling circuits plus 1 signaling circuit Us = 24 V DC Spring-type terminal (push-in)

Siemens 3SK1112-2BB40

Genuine, certified Siemens product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

product brand nameSIRIUS

product categorySafety relays

product designationsafety relays

design of the productSolid-state enabling circuits

product type designation3SK1

product lineStandard basic unit

Product Function

product function parameterizablesensor floating / sensor non-floating, monitored start-up / automatic start, 1-channel / 2-channel sensor connection, cross-circuit detection, startup testing

automatic startYes

light barrier monitoringYes

protective door monitoringYes

magnetically operated switch monitoring NC-NONo

magnetically operated switch monitoring NC-NCYes

laser scanner monitoringYes

light array monitoringYes

EMERGENCY OFF functionYes

monitored start-upYes

pressure-sensitive mat monitoringNo

product feature cross-circuit-proofYes

suitability for interaction press controlNo

suitability for operation device connector 3ZY12No

monitoring of floating sensorsYes

monitoring of non-floating sensorsYes

position switch monitoringYes

EMERGENCY-OFF circuit monitoringYes

opto-electronic protection device monitoringYes

magnetically operated switch monitoringYes

safety-related circuitsYes

General technical data

certificate of suitability UL approvalYes

product feature protective coating on printed-circuit boardNo

power loss [W] maximum2 W

insulation voltage rated value50 V

degree of pollution3

overvoltage category3

surge voltage resistance rated value800 V

protection class IP of the enclosureIP20

shock resistance10 g / 11 ms

vibration resistance according to IEC 60068-2-65 ... 500 Hz: 0.75 mm

operating frequency maximum2 000 1/h

reference code according to IEC 81346-2F

Substance Prohibitance (day/month/year)11/05/2012

SVHC substance nameLead CAS-No. 7439-92-1 Lead monoxide (lead oxide) CAS-No. 1317-36-8 2-methyl-1-(4-methylthiophenyl)-2-morpholinopropan-1-one CAS-No. 71868-10-5 Melamine CAS-No. 108-78-1 6,6'-di-tert-butyl-2,2'-methylenedi-p-cresol CAS-No. 119-47-1

Net Weight0.129 kg

Ambient conditions

installation altitude at height above sea level maximum4 000 m

noteDerating, see Product Notification 109792701

during operation-25 ... +60 °C

during storage-40 ... +80 °C

relative humidity during operation10 ... 95 %

air pressure according to SN 31205900 ... 1 060 hPa

Electromagnetic compatibility

installation environment regarding EMCThis product is suitable for Class A environments only. In household environments, this device can cause unwanted radio interference. The user is required to implement appropriate measures in this case.

EMC emitted interferenceIEC 60947-5-1, Class A

Safety related data

product function suitable for safety functionYes

safe stateSafety outputs switched off

test wear-related service life necessaryNo

diagnostics test interval by internal test function maximum600 s

stop category according to IEC 60204-10

IEC 62061

SIL Claim Limit (subsystem) according to EN 620613

according to IEC 62061SIL 3

at single-channel evaluation according to IEC 620611

at 2-channel evaluation according to IEC 620613

PFHD with high demand rate according to IEC 620610,0000000010

ISO 13849

category according to EN ISO 13849-14

according to ISO 13849-1PL e

at single-channel evaluation according to ISO 13849-1c

at 2-channel evaluation according to ISO 13849-1e

according to ISO 13849-14

at 2-channel evaluation according to ISO 13849-14

overdimensioning according to ISO 13849-2 necessaryNo

IEC 61508

according to IEC 615083

at single-channel evaluation according to IEC 615081

at 2-channel evaluation according to IEC 615083

safety device type according to IEC 61508-2Type B

PFHD with high demand rate according to IEC 615080,0000000010

PFDavg with low demand rate according to IEC 615080.000007

Safe failure fraction (SFF)99 %

according to IEC 615081

at single-channel evaluation according to IEC 615080

at 2-channel evaluation according to IEC 615081

of service life according to IEC 6150820 a

for proof test interval or service life according to IEC 6150820 a

Electrical Safety

touch protection against electrical shockfinger-safe

Short-circuit protection

for short-circuit protection of the NO contacts of the relay outputs requirednot required

Inputs

cascading input/functional switchingYes

feedback inputYes

start inputYes

pulse duration of the sensor input minimum60 ms

number of sensor inputs 1-channel or 2-channel1

Outputs

— safety-related delayed switching0

— instantaneous contact1

— delayed switching0

— instantaneous contact2

switching capacity current of semiconductor outputs at DC-13 at 24 V2 A

Times

at DC maximum85 ms

typical6 500 ms

maximum6 500 ms

maximum85 ms

backslide delay time after opening of the safety circuits typical40 ms

recovery time after opening of the safety circuits typical30 ms

recovery time after power failure typical6.5 s

of the ON pushbutton input minimum0.15 s

Control circuit/ Control

type of voltage of the control supply voltageDC

control supply voltage at DC rated value24 V

initial value0.8

full-scale value1.2

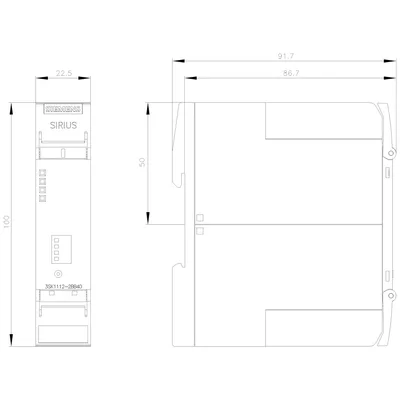

Installation/ mounting/ dimensions

mounting positionany

fastening methodscrew and snap-on mounting

height100 mm

width22.5 mm

depth91.6 mm

for grounded parts at the side5 mm

Connections/ Terminals

type of electrical connectionspring-loaded terminal (push-in)

with Cu 1.5 mm² and 150 nF/km per sensor circuit maximum4 000 m

solid1x (0.5 ... 1.5 mm²), 2x (0.5 ... 1.5 mm²)

finely stranded with core end processing1x (0.5 ... 1.0 mm²), 2x (0.5 ... 1.0 mm²)

finely stranded without core end processing1x (0.5 ... 1.5 mm²), 2x (0.5 ... 1.5 mm²)

for AWG cables solid1x (20 ... 16), 2x (20 ... 16)

for AWG cables stranded1x (20 ... 16), 2x (20 ... 16)

type of electrical connection plug-in socketNo
