How can I get a price quote for Siemens 3SF1244-1QV40-1BA2?

You can request a fast quote for Siemens 3SF1244-1QV40-1BA2 from Yılsa Engineering. Reference part number CEY-8EF3B0390D38. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Siemens 3SF1244-1QV40-1BA2 in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Siemens 3SF1244-1QV40-1BA2 genuine and new?

Yes. This Siemens product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Siemens 3SF1244-1QV40-1BA2?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

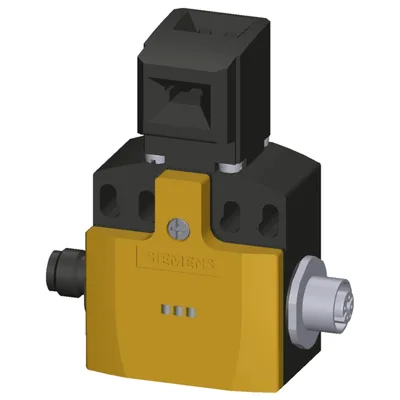

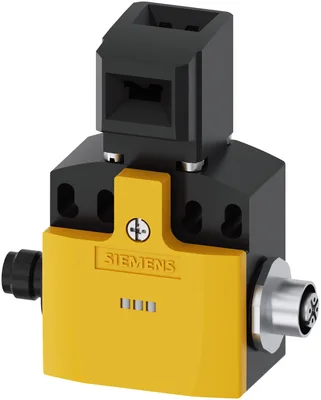

Siemens 3SF1244-1QV40-1BA2

Safety position switch with separate actuator 5 directions of approaches Plastic enclosure 50 mm wide ASIsafe integrated AS-i status: 1:F-IN1, 2: F-IN2 3:AS-i/FAULT Slow-action contacts 1 NC with M12 connector 4-pole Channel 1 to NC, Channel 2 to NC

SiemensMFR # 3SF1244-1QV40-1BA2SKU # CEY-8EF3B0390D38

product brand nameSIRIUS

product designationMechanical safety switches

product type designation3SF12

product function positive openingYes

insulation voltage rated value30 V

degree of pollutionclass 3

Have questions?Chat on WhatsApp

About This Product

Siemens 3SF1244-1QV40-1BA2

Genuine, certified Siemens product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

product brand nameSIRIUS

product designationMechanical safety switches

product type designation3SF12

of the optional actuators3SE5000-0AV01 standard actuator, 3SE5000-0AV02 actuator with vertical fixing, 3SE5000-0AV03 actuator with transverse fixing, 3SE5000-0AV04 radius actuator left, 3SE5000-0AV05 universal actuator, 3SE5000-0AV06 radius actuator right

General technical data

product function positive openingYes

insulation voltage rated value30 V

degree of pollutionclass 3

surge voltage resistance rated value0.8 kV

shock resistance according to IEC 60068-2-2730 g / 11 ms

vibration resistance according to IEC 60068-2-60.35 mm/5 g

mechanical service life (operating cycles) typical1 000 000

material of the enclosure of the switch headplastic enclosure

reference code according to IEC 81346-2B

active principlemechanical

repeat accuracy0.1 mm

Substance Prohibitance (day/month/year)03/01/2017

SVHC substance nameLead CAS-No. 7439-92-1 Lead monoxide (lead oxide) CAS-No. 1317-36-8 2-methyl-1-(4-methylthiophenyl)-2-morpholinopropan-1-one CAS-No. 71868-10-5 Melamine CAS-No. 108-78-1 6,6'-di-tert-butyl-2,2'-methylenedi-p-cresol CAS-No. 119-47-1 Diboron trioxide CAS-No. 1303-86-2 Imidazolidine-2-thione (2-imidazoline-2-thiol) CAS-No. 96-45-7

Net Weight0.127 kg

minimum actuating force in directions of actuation10 N

length of the sensor89 mm

width of the sensor50 mm

Ambient conditions

during operation-25 ... +60 °C

during storage-40 ... +80 °C

design of the switching contactmechanical

number of NC contacts for auxiliary contacts2

number of NO contacts for auxiliary contacts0

Enclosure

design of the housingblock, wide

material of the enclosureplastic

design of the housing according to standardNo

Drive Head

design of the actuating elementwithout

design of the switching functionpositive opening

circuit principleslow-action contacts

number of switching contacts safety-related1

design of plug-in connectionM12 plug, 4-pole: Pin 1 = ASI+ , Pin 2 = not assigned, Pin 3= ASI-, Pin 4 = not assigned

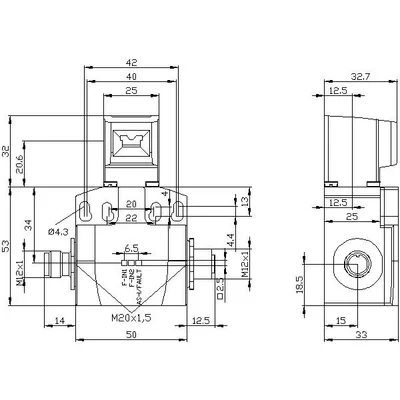

Installation/ mounting/ dimensions

mounting positionany

fastening methodscrew fixing

Connections/ Terminals

type of electrical connectionM12 plug, fixed, 4-pole

Supply voltage

type of voltage of the supply voltage of the optional LED displayDC

24 V

design of the interface for safety-related communicationASIsafe via M12 plug, channel 2 looped through to M12 socket on the right

Safety related data

proportion of dangerous failures with high demand rate according to SN 3192020 %

B10 value with high demand rate according to SN 319201 000 000

Accessories 16

Genuine accessories that can be used with the Siemens 3SF1244-1QV40-1BA2 motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.

Part no	Description	Compatible motors
3SE5000-0AV05	Seçmeli zorunlu ürün
3SE5000-0AW21	Seçmeli zorunlu ürün
3SE5000-0AW11	Seçmeli zorunlu ürün
3SE5000-0AV07-1AK2	Seçmeli zorunlu ürün
3SE5000-0AV05-1AA6	Seçmeli zorunlu ürün
3SE5000-0AV07	Seçmeli zorunlu ürün
3SE5000-0AV06	Seçmeli zorunlu ürün
3SE5000-0AV04	Seçmeli zorunlu ürün
3SE5000-0AW53	Seçmeli zorunlu ürün
3SE5000-0AW52	Seçmeli zorunlu ürün
3SE5000-0AV01-1AL7	Seçmeli zorunlu ürün
3SE5000-0AW51	Seçmeli zorunlu ürün
3SE5000-0AV03	Seçmeli zorunlu ürün
3SE5000-0AV02	Seçmeli zorunlu ürün
3SE5000-0AV01	Seçmeli zorunlu ürün
3SE5000-0AV05-1AN3	Seçmeli zorunlu ürün
