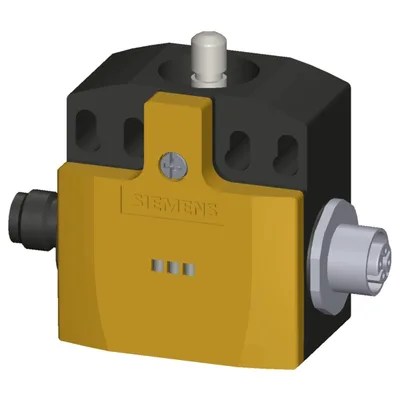

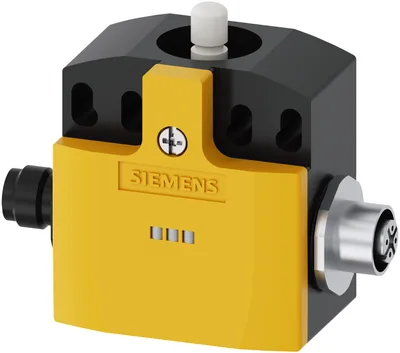

Siemens 3SF1244-1KC05-1BA2

Basic switch without actuator head Plastic enclosure 50 mm wide ASIsafe integrated AS-i status: 1:F-IN1, 2: F-IN2 3:AS-i/FAULT Slow-action contacts 1 NC with M12 connector 4-pole Channel 1 to NC, Channel 2 to M12 socket on the right

SiemensMFR # 3SF1244-1KC05-1BA2SKU # CEY-8EF3B0390D3A

product brand nameSIRIUS

product designationMechanical safety switches

product type designation3SF12

of the supplied basic switch3SF1244-1KC05-1BA2

product function positive openingYes

insulation voltage rated value30 V

Have questions?Chat on WhatsApp

About This Product

Siemens 3SF1244-1KC05-1BA2

Genuine, certified Siemens product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

product brand nameSIRIUS

product designationMechanical safety switches

product type designation3SF12

of the supplied basic switch3SF1244-1KC05-1BA2

General technical data

product function positive openingYes

insulation voltage rated value30 V

degree of pollutionclass 3

surge voltage resistance rated value0.8 kV

shock resistance according to IEC 60068-2-2730 g / 11 ms

vibration resistance according to IEC 60068-2-60.35 mm/5 g

mechanical service life (operating cycles) typical15 000 000

reference code according to IEC 81346-2B

active principlemechanical

repeat accuracy0.1 mm

Substance Prohibitance (day/month/year)03/01/2017

SVHC substance nameLead CAS-No. 7439-92-1 Lead monoxide (lead oxide) CAS-No. 1317-36-8 2-methyl-1-(4-methylthiophenyl)-2-morpholinopropan-1-one CAS-No. 71868-10-5 Melamine CAS-No. 108-78-1 6,6'-di-tert-butyl-2,2'-methylenedi-p-cresol CAS-No. 119-47-1 Diboron trioxide CAS-No. 1303-86-2 Imidazolidine-2-thione (2-imidazoline-2-thiol) CAS-No. 96-45-7

Net Weight0.101 kg

minimum actuating force in directions of actuation20 N

length of the sensor60.7 mm

width of the sensor50 mm

Ambient conditions

during operation-25 ... +60 °C

during storage-40 ... +80 °C

design of the switching contactmechanical

number of NC contacts for auxiliary contacts2

number of NO contacts for auxiliary contacts0

Enclosure

design of the housingblock, wide

material of the enclosureplastic

design of the housing according to standardNo

Drive Head

design of the actuating elementOther, without, ASi_basic switch with plug

design of the switching functionpositive opening

circuit principleslow-action contacts

number of switching contacts safety-related1

design of plug-in connectionM12 plug, 4-pole: Pin 1 = ASI+ , Pin 2 = not assigned, Pin 3= ASI-, Pin 4 = not assigned

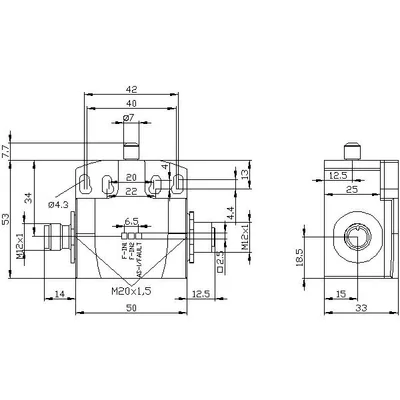

Installation/ mounting/ dimensions

mounting positionany

fastening methodscrew fixing

Connections/ Terminals

type of electrical connectionM12 plug, fixed, 4-pole

Supply voltage

type of voltage of the supply voltage of the optional LED displayDC

24 V

design of the interface for safety-related communicationASIsafe via M12 plug, channel 2 looped through to M12 socket on the right
